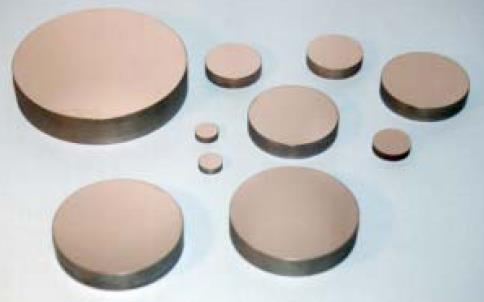

硅反射镜
铜镜
反射镜
硅反射镜
铜镜
反射镜

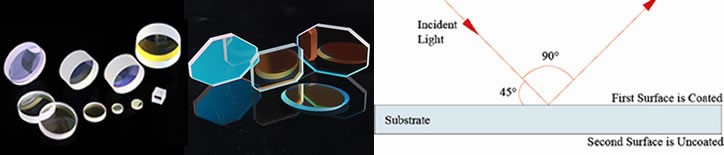

激光光学反射镜,输出镜

时间:2020-06-16 类别:光学元器件 关注:6804

型号规格齐全、多种材质、适用多个波长、多种输出率

一站式供应各种型号、各种波长、各种材质和输出率的激光反射镜,为了方便您的挑选,我们罗列了以下标准产品型号供您参考。如果在以下列表中找不到的规格,请联系我们获取您所需要的产品规格及报价!

我们一站式供应各种类型的激光镜片,激光反射镜,激光输出镜,光学反射镜,激光全反镜,45度反射镜,45度折射镜,45度全反镜 ,YAG全反镜,YAG半反镜,硅反射镜,硅转镜,铜镜,钼镜,钼反射镜,可提供选型、技术指导、安装培训、个性定制等全生命周期、全流程服务,欢迎联系我们的产品经理!

联系程经理快速获取产品选型、最新报价和解决方案
手机: 18162698959(微信) 座机: 027-51858937
产品系列
激光器
声光器件和电光器件
光学元器件
激光配件
激光仪器与工具
工业自动化
产品经理信息

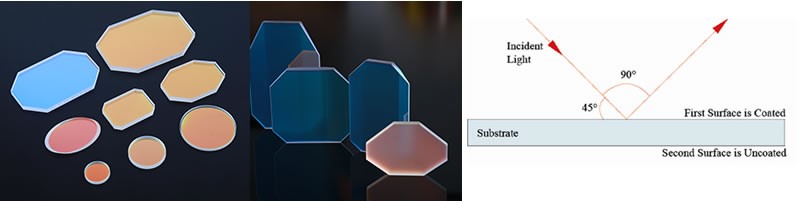

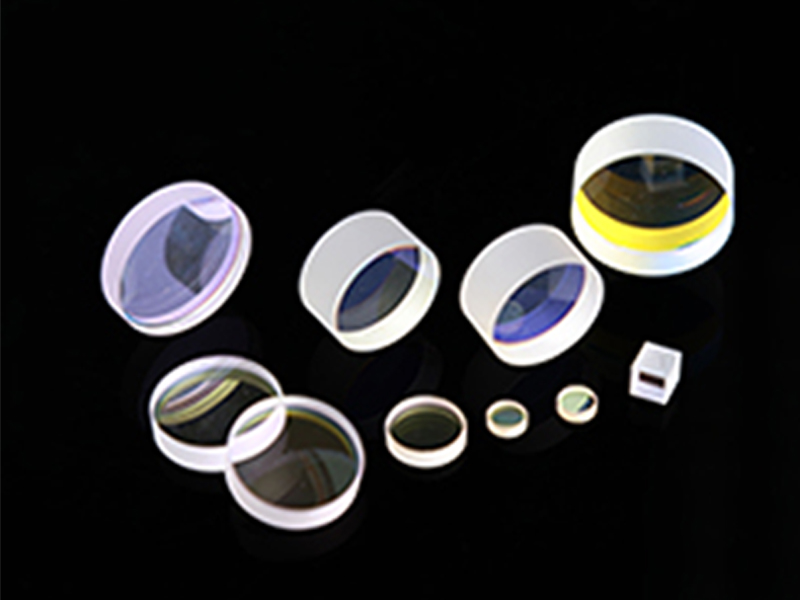

BK7反射镜

常用波长包括355nm, 532nm, 650nm, 808nm, 980nm, 1064nm, 1319nm和1550nm,入射角0 到45 度,反射率高达99.9%以上,具有很高的损伤阈值。.

BK7反射镜

 标准产品超高精度产品
面型平平平平
材料BK7BK7
直径公差+0/-0.1mm+0/-0.1mm
厚度公差±0.2mm±0.1mm
平整度λ/2 @632.8nmλ/10 @632.8nm
有效孔径90%90%
光洁度40-2020-10
平行度<1arc min<10arc min
侧边<0.25mm x 45 º<0.25mm x 45 º
设计波长587.6nm587.6nm
标准产品超高精度产品
产品型号D (mm)T (mm)产品型号D (mm)T (mm)
STJ-XXXX-MB-6.0-3-A63STJ-XXXX-MHB-6.0-3-A6.03.0
STJ-XXXX-MB-10.0-3-A103STJ-XXXX-MHB-10.0-3-A10.03.0
STJ-XXXX-MB-12. 7-3-A12.73STJ-XXXX-MHB-12. 7-3-A12.73.0
STJ-XXXX-MB-15.0-3-A153STJ-XXXX-MHB-15.0-3-A15.03.0
STJ-XXXX-MB-15.0-4-A154STJ-XXXX-MHB-15.0-4-A15.04.0
STJ-XXXX-MB-20.0-4-A204STJ-XXXX-MHB-20.0-4-A20.04.0
STJ-XXXX-MB-20.0-5-A205STJ-XXXX-MHB-20.0-5-A20.05.0
STJ-XXXX-MB-25.0-4-A254STJ-XXXX-MHB-25.0-4-A25.04.0
STJ-XXXX-MB-25.4-4-A25.44STJ-XXXX-MHB-25.4-4-A25.44.0
STJ-XXXX-MB-30.0-4-A304STJ-XXXX-MHB-30.0-4-A30.04.0
STJ-XXXX-MB-30.30-4-A30x304STJ-XXXX-MHB-30.30-4-A30x304.0
STJ-XXXX-MB-40.0-3-A403STJ-XXXX-MHB-40.0-3-A40.03.0
STJ-XXXX-MB-40.0-4-A404STJ-XXXX-MHB-40.0-4-A40.04.0
STJ-XXXX-MB-42.0-3-A423STJ-XXXX-MHB-42.0-3-A42.03.0
STJ-XXXX-MB-48.0-3-A483STJ-XXXX-MHB-48.0-3-A48.03.0
STJ-XXXX-MB-50.0-4-A504STJ-XXXX-MHB-50.0-4-A50.04.0
STJ-XXXX-MB-50.8-4-A50.84STJ-XXXX-MHB-50.8-4-A50.84.0

订货须知:

订货时请先选好产品型号,并写明 (1) 激光波长 (XXXX nm) 和 AOI (入射角, A,一般是0或45度),如STJ-1064-MB-50.8-4-45 是45度入射角1064nm波长的标准K7全反镜。

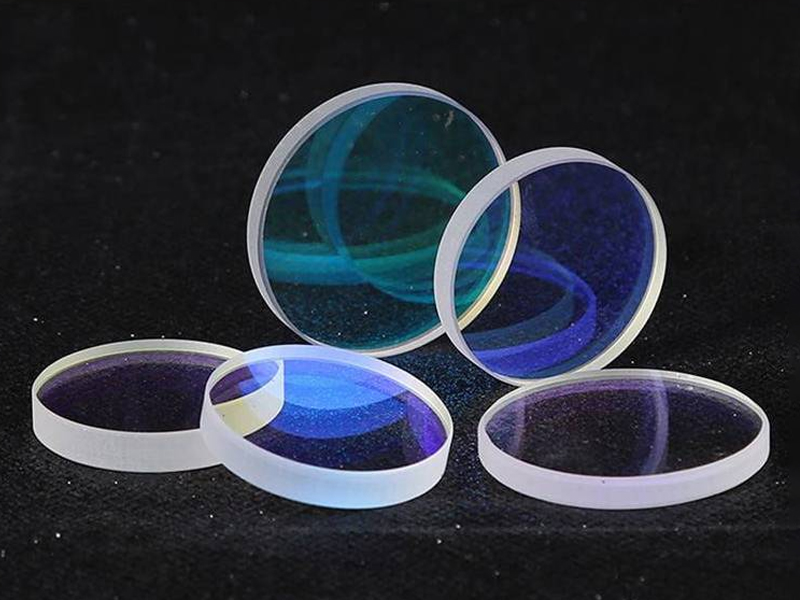

石英全反镜

石英全反镜

 标准产品超高精度产品
面型平平平平
材料熔融石英熔融石英
直径公差+0/-0.1mm+0/-0.1mm
厚度公差±0.2mm±0.1mm
平整度λ/2 @632.8nmλ/10 @632.8nm
有效孔径90%90%
光洁度40-2020-10
平行度<1arc min<10arc min
侧边<0.25mm x 45 º<0.25mm x 45 º
设计波长587.6nm587.6nm
标准产品超高精度产品
产品型号D (mm)T (mm)产品型号D (mm)T (mm)
STJ-XXXX-MJ-6.0-3-A63STJ-XXXX-MHJ-6.0-3-A63
STJ-XXXX-MJ-10.0-3-A103STJ-XXXX-MHJ-10.0-3-A103
STJ-XXXX-MJ-12. 7-3-A12.73STJ-XXXX-MHJ-12.7-3-A12.73
STJ-XXXX-MJ-15.0-3-A153STJ-XXXX-MHJ-15.0-3-A153
STJ-XXXX-MJ-15.0-4-A154STJ-XXXX-MHJ-15.0-4-A154
STJ-XXXX-MJ-20.0-4-A204STJ-XXXX-MHJ-20.0-4-A204
STJ-XXXX-MJ-20.0-5-A205STJ-XXXX-MHJ-20.0-5-A205
STJ-XXXX-MJ-25.0-4-A255STJ-XXXX-MHJ-25.0-4-A255
STJ-XXXX-MJ-25.4-4-A25.44STJ-XXXX-MHJ-25.4-4-A25.44
STJ-XXXX-MJ-30.0-4-A304STJ-XXXX-MHJ-30.0-4-A304
STJ-XXXX-MJ-30.30-4-A30x304STJ-XXXX-MHJ-30.30-4-A30x304
STJ-XXXX-MJ-40.0-3-A403STJ-XXXX-MHJ-40.0-3-A403
STJ-XXXX-MJ-40.0-4-A404STJ-XXXX-MHJ-40.0-4-A404
STJ-XXXX-MJ-42.0-3-A424STJ-XXXX-MHJ-42.0-3-A424
STJ-XXXX-MJ-48.0-3-A484STJ-XXXX-MHJ-48.0-3-A484
STJ-XXXX-MJ-50.0-4-A504STJ-XXXX-MHJ-50.0-4-A504
STJ-XXXX-MJ-50.8-4-A50.84STJ-XXXX-MHJ-50.8-4-A50.84

订货须知:

订货时请先选好产品型号,并写明 (1) 激光波长 (XXXX nm) 和 AOI (入射角, A,一般是0或45度),如STJ-1064-MJ-50.8-4-45 是45度入射角1064nm波长的标准石英全反镜。

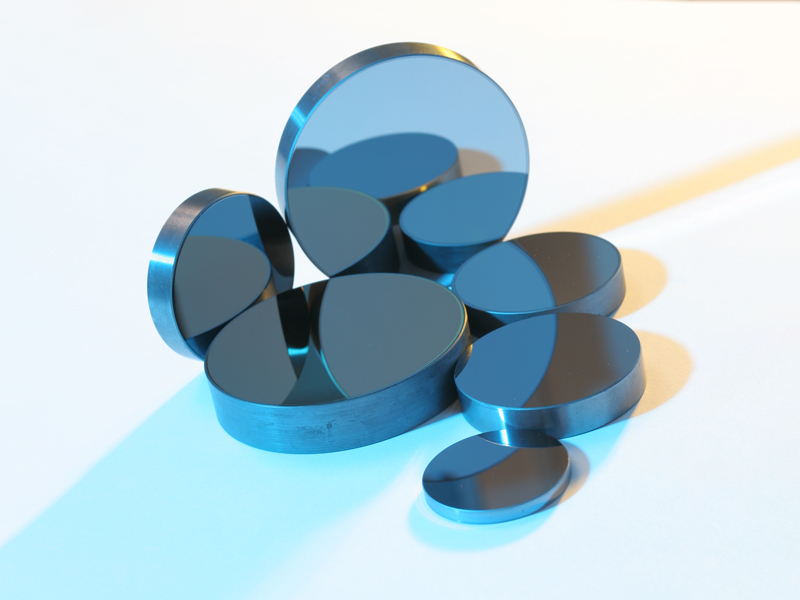

硅反射镜

产品型基材Dia mmET mmA degT %R %S2 ROC mCoating
LM-SI-5.9SIS4-03Si15445399.933SuperMax
LM-SI-7.5SID2-00Si19245099SiDual
LM-SI-7.5SIS3-00Si19345099.93SuperMax
LM-SI-7.5SIS3-05Si19345099.935SuperMax
LM-SI-7.5SIS3-07Si19345099.937SuperMax
LM-SI-7.5SIS4-05Si19445099.935SuperMax
LM-SI-7.5SIS5-075Si19545099.930.75SuperMax
LM-SI-10SIF3-00Si25.4345099PFM
LM-SI-10SIF5-00Si25.4545099PFM
LM-SI-10SIS3-00Si25.4345099.93SuperMax
LM-SI-10SIS3-05Si25.4345099.935SuperMax
LM-SI-10SIS3-10Si25.4345099.9310SuperMax
LM-SI-10SIS4-00Si25.4445099.93SuperMax
LM-SI-10SIS5-00Si25.4545099.93SuperMax
LM-SI-11SIS3-00Si28345099.93SuperMax
LM-SI-11SIS6-00Si28645099.93SuperMax
LM-SI-15SIS6.3-07Si38.056.345099.937SuperMax
LM-SI-15SIS6.3-7MSi38.056.345099.937.5SuperMax
LM-SI-15SIS6-00Si38.05645099.93SuperMax
LM-SI-15SIS9.5-00Si38.059.545099.93SuperMax
LM-SI-15SIS9.7-00Si38.059.745099.93SuperMax
LM-SI-15SID-00Si38.05445099SiDual
LM-SI-15SIF4-00Si38.05445099PFM
LM-SI-15SIS4-10CCSi38.05445099.9310SuperMax
LM-SI-15SIS5-00Si38.05545099.93SuperMax
LM-SI-15SIS6.3-00Si38.16.345099.93SuperMax
LM-SI-15SIS6.6-00Si38.16.645099.93SuperMax
LM-SI-16.1SIS5-00Si41545099.93SuperMax
LM-SI-17.5SIS9.5-00Si44.459.545099.93SuperMax
LM-SI-17.5SIS9-00Si44.5945099.93SuperMax
LM-SI-17.5SIS4-00Si44.5445099.93SuperMax
LM-SI-19.7SIS10-00Si501045098.6SuperMax
LM-SI-19.7SIS5-00Si50545098.6SuperMax
LM-SI-20SIF10-00Si50.81045099PFM
LM-SI-20SIS10-00Si50.810.245099.93SuperMax
LM-SI-20SIS10-00MASi50.81045099.93SuperMax
LM-SI-20SIS5-00Si50.85.145099.93SuperMax
LM-SI-20SIS9.5-00Si50.89.545099.93SuperMax
LM-SI-26.8SIS20-00MSi682045099.93SuperMax
LM-SI-30SIS6.35-00Si76.26.3545099.93SuperMax
LM-SI-30SMA12.7-00Cu76.212.745098.6SuperMax

说明:A:入射角; ET:边缘厚度;T(%):透过率;R (%):反射率;ROC:曲率半径。

10.6mm专用硅转镜

10.6mm专用硅转镜

  • 45°入射角

  • 10.6 µm镀膜,反射率>99.6%

  • 10.6 µm吸收率 < 0.30%

产品型号直径厚度
LM-SI-TMS-0512-EM0.500"0.120"
LM-SI-TMS-0712-EM0.750"0.120"
LM-SI-TMS-0912-EM0.875"0.120"
LM-SI-TMS-1012-EM1.000"0.120"
LM-SI-TMS-1112-EM1.100"0.120"
LM-SI-TMS-1512-EM1.500"0.120"
LM-SI-TMS-1516-EM1.500"0.160"
LM-SI-TMS-1816-EM1.750"0.160"
LM-SI-TMS-2020-EM2.000"0.200"
LM-SI-TMS-2525-EM2.500"0.250"
LM-SI-TMS-3025-EM3.000"0.250"
LM-SI-TMS-4035-EM4.000"0.350"

10.6µm+红光硅镜

  • 45°入射角

  • 10.6 µm镀膜,反射率>99.7%;红光633nm和650nm反射率>85%

  • 10.6 µm吸收率 < 0.30%

Model NumberDiameterThickness
LM-SI-TMS-0512-DBMR0.500"0.120"
LM-SI-TMS-0712-DBMR0.750"0.120"
LM-SI-TMS-0912-DBMR0.875"0.120"
LM-SI-TMS-1012-DBMR1.000"0.120"
LM-SI-TMS-1112-DBMR1.100"0.120"
LM-SI-TMS-1512-DBMR1.500"0.120"
LM-SI-TMS-1516-DBMR1.500"0.160"
LM-SI-TMS-1816-DBMR1.750"0.160"
LM-SI-TMS-2020-DBMR2.000"0.200"
LM-SI-TMS-2525-DBMR2.500"0.250"
LM-SI-TMS-3025-DBMR3.000"0.250"
LM-SI-TMS-4035-DBMR4.000"0.350"

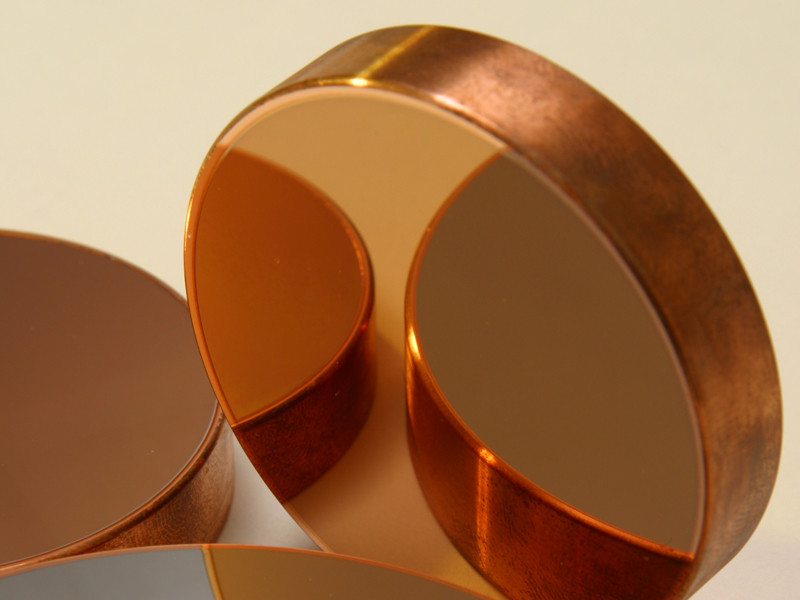

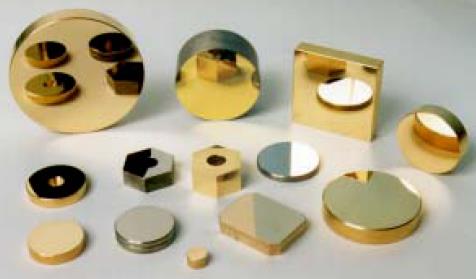

铜镜

产品型MDia mmET mmA degT %R %S2 ROC m镀膜
LM-CU-11SMA6-00Cu28645099.93SuperMax
LM-CU-15NCA8-00Cu38845099.93NiCu
LM-CU-15NCW15-00Cu381545098.6NiCu
LM-CU-D38-T10-A45Cu381045098.6NiCu
LM-CU-15NCA10-00Cu38645098.6NiCu
LM-CU-15NCA6-00Cu38645098.6SuperMax
LM-CU-15SMA6-00Cu38645099.93SuperMax
LM-CU-15SMA6-15Cu38.05645099.9315SuperMax
LM-CU-19.7NCA10-00Cu501045098.6NiCu
LM-CU-19.7NCW25-00Cu502545098.6NiCu
LM-CU-19.7SMA10-1000CXCu50645098.6SuperMax
LM-CU-19.7SMA5-00Cu50545098.6SuperMax
LM-CU-19.7SMA9-00Cu50945098.6SuperMax
LM-CU-20NCA5-00Cu50.8545098.6NiCu
LM-CU-20SMA5-00Cu50.8545098.6SuperMax
LM-CU-23.6NCA10-00Cu601045098.6NiCu
LM-CU-23.6SMA6-00Cu60645098.6SuperMax
LM-CU-29.5NCA15-00Cu751545098.6NiCu
LM-CU-29.5NCW25-00Cu752545098.6NiCu
LM-CU-29.5SMA17-00Cu751745098.6SuperMax

说明:A:入射角; ET:边缘厚度;T(%):透过率;R (%):反射率;ROC:曲率半径。

钼镜

产品型MDia mmET mmA degT %R %S2 ROC mCoating
LM-MO-5.9MO2-00Mo1520098.5flatUncoated
LM-MO-15MO6-00Mo38645098.5flatUncoated
LM-MO-17.5MO8-00Mo44.5845098.5flatUncoated
LM-MO-19.7MO2-00Mo50245098.5flatUncoated
LM-MO-19.7MO3-00Mo50345098.5flatUncoated
LM-MO-19.7MO5-14Mo50545098.5flatUncoated
LM-MO-19.7MO6-00Mo50645098.5flatUncoated
LM-MO-20MO5-00Mo50.85.145098.5flatUncoated
LM-MO-23.6MO10-00Mo601045098.5flatUncoated
LM-MO-29.5MO15-00Mo751545098.5flatUncoated

说明:A:入射角; ET:边缘厚度;T(%):透过率;R (%):反射率;ROC:曲率半径。
