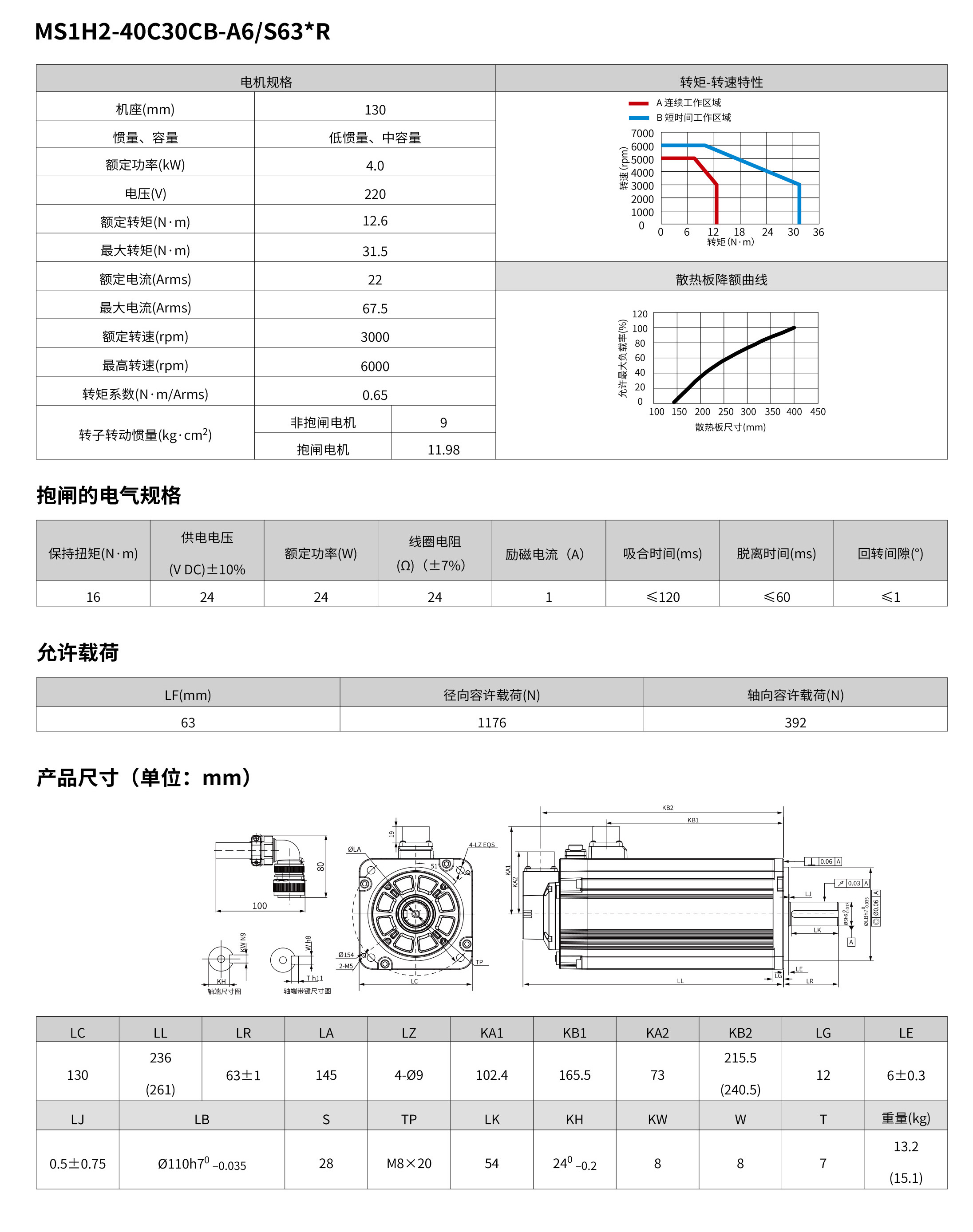

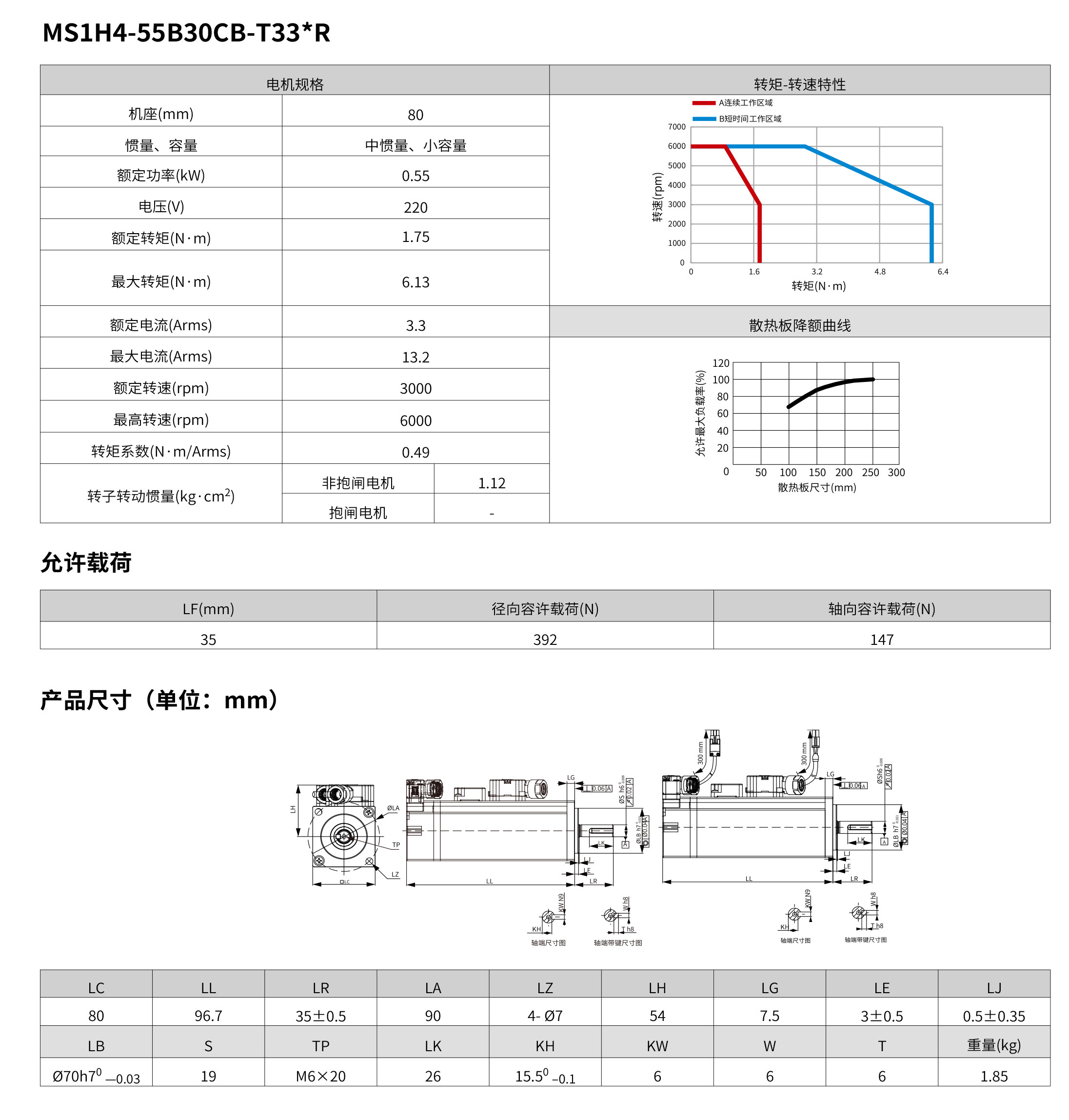

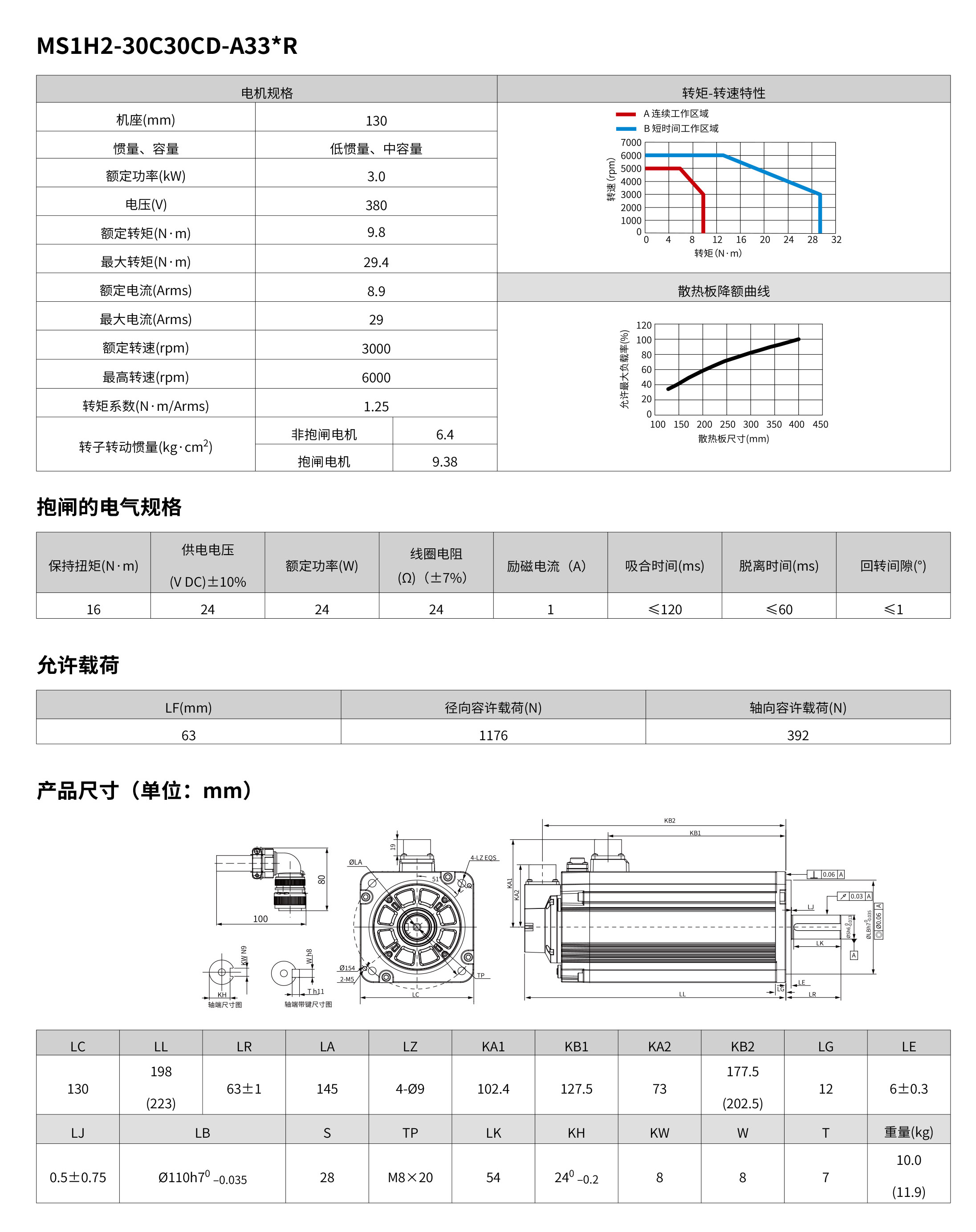

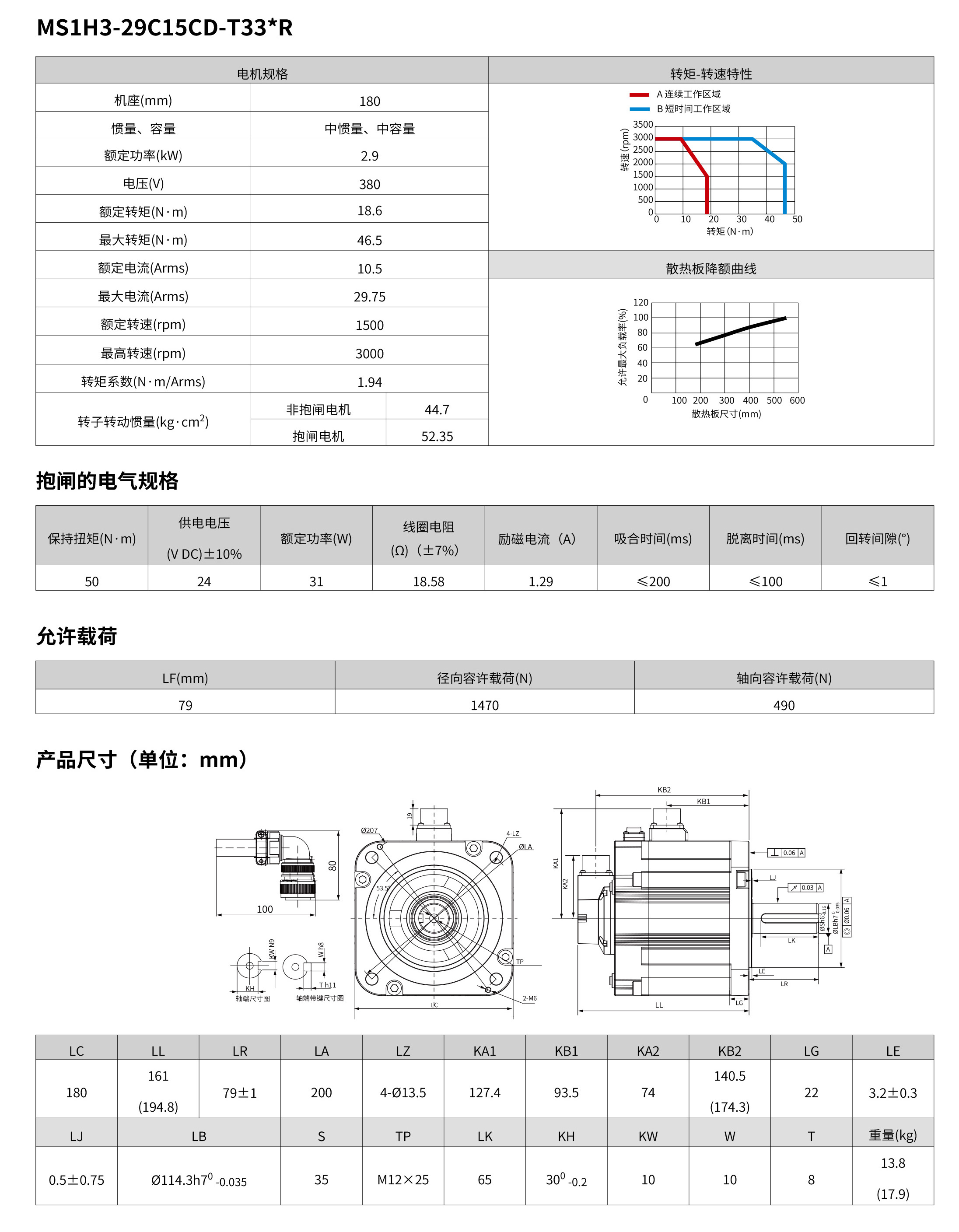

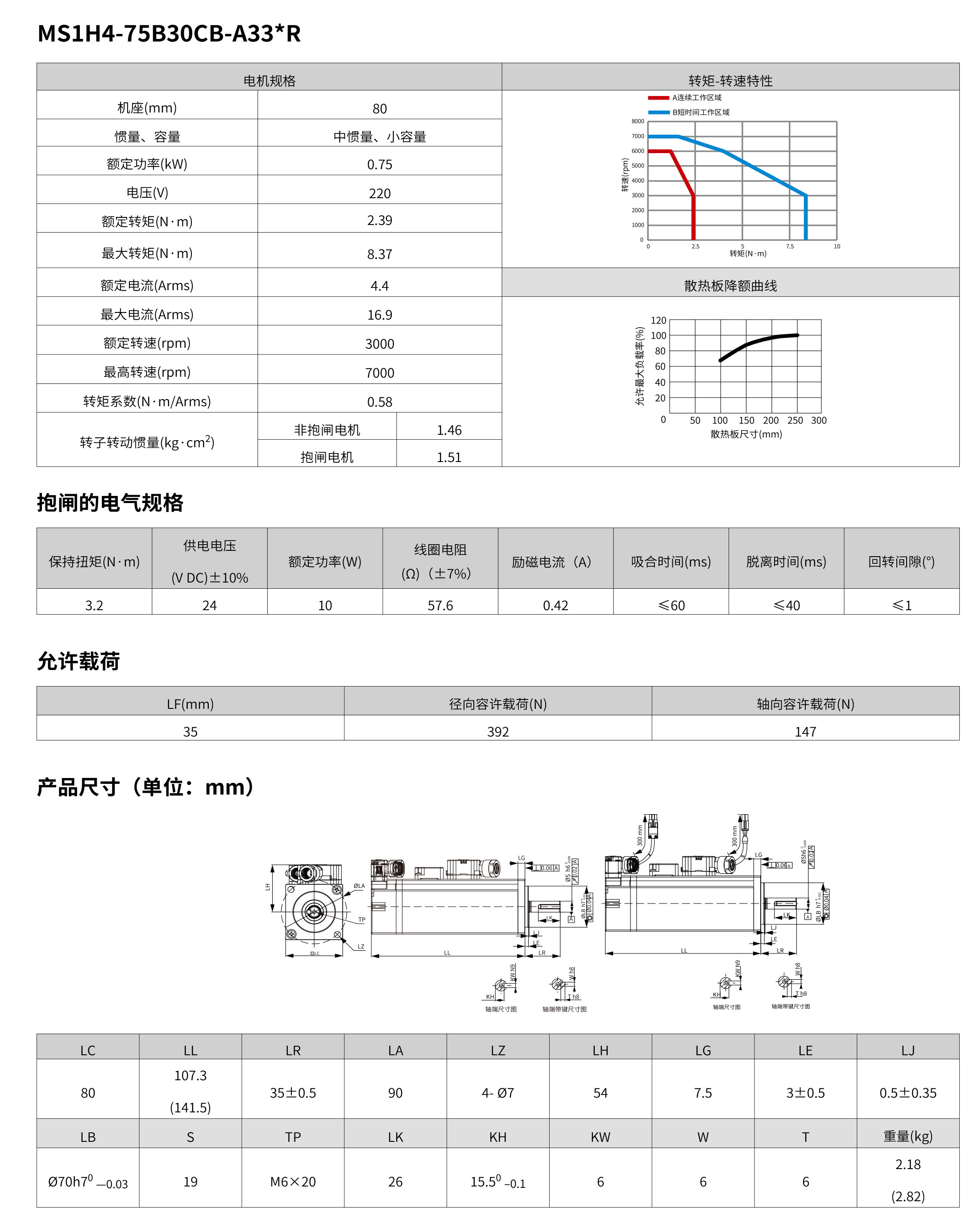

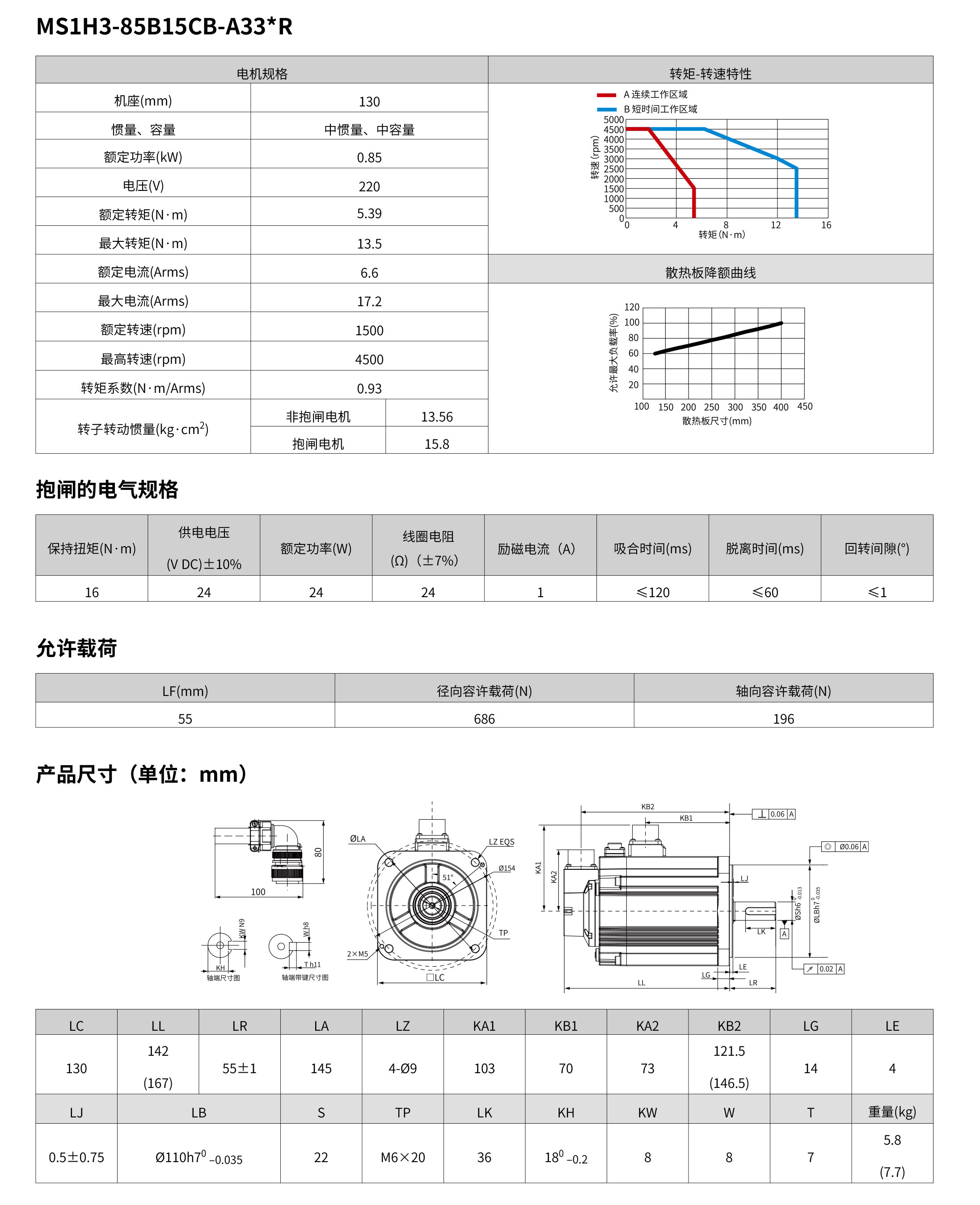

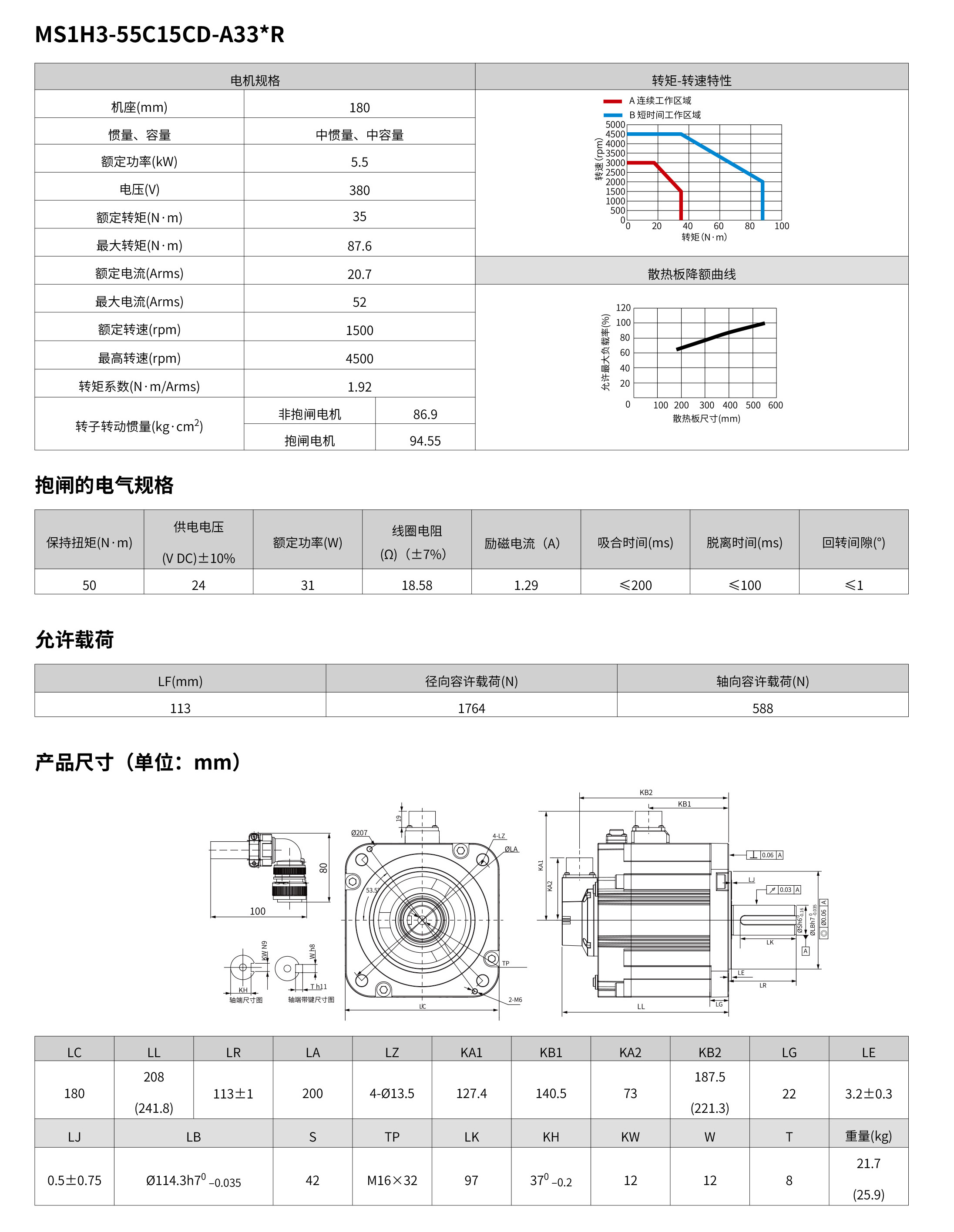

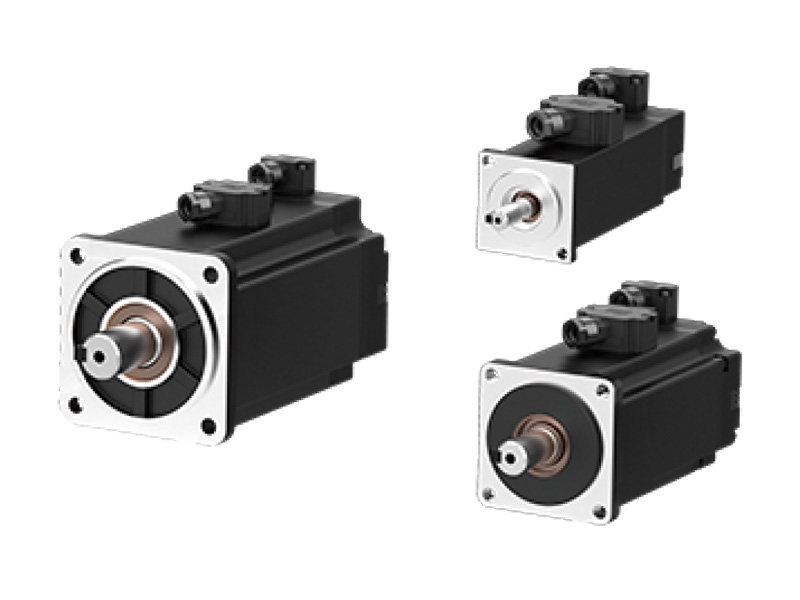

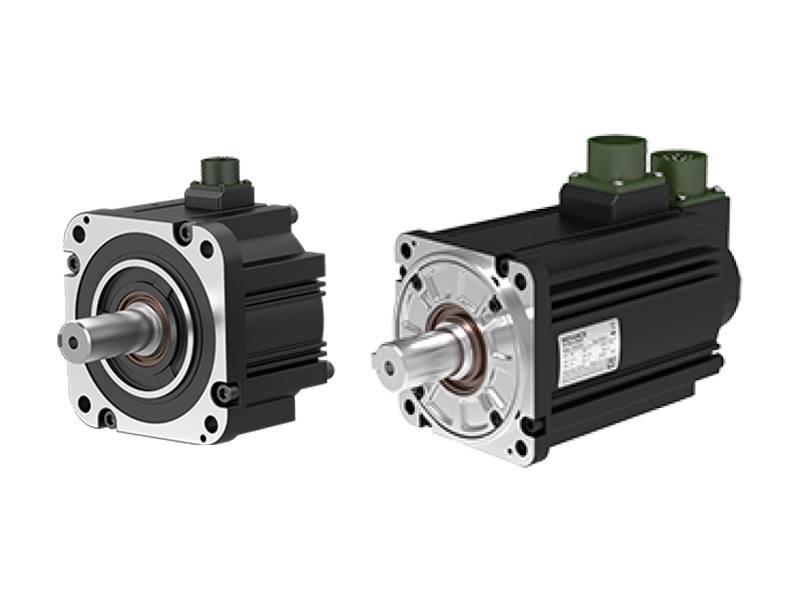

MS1-R系列小功率伺服电机

MS1-R系列伺服电机功率范围0.05kW~7.5kW,机座号40mm~180mm,提供多种惯量配置、转速段配置,可根据客户需求提供不同配置的编码器类型。适用于半导体、锂电、硅晶、机床、手机、印包、医药、纺织、显示等行业设备,可以实现快速精确的位置控制、速度控制和转矩控制。在产品性能,尺寸长度等都有大幅度提升。

产品特点

  • 更小尺寸:出力不变,安装空间变小,长度最大降幅达 29%,安装接口尺寸完全兼容上一代 Z 版本电机;

  • 更低温升:优化电磁回路,降低温升,60 机座和 80 机座,典型机型、工况比较,降低 20K;

  • 更全系列:40/60/80 机座 H1 机型为超小惯量机型,适用于快速点位,控制场合,没有快速点位需求场合统一使用 H4 机型电机。增加 26 位多圈绝对值编码器及功能安全型 26 位多圈绝对值编码器,满足更高精度、更高安全的要求

  • 更高刚性:典型机型,刚性等级提升 5 级

  • 更高转速:MS1H1 和 MS1H4 (40/60/80 机座 ) 最高转速从 6000rpm 提升到  7000rpm;MS1H2 机型最高转速从 5000rpm 提升到 6000rpm;MS1H3(130/180  机座)最高转速从 3000rpm 提升到 4500rpm(说明:带 26 位 &23 位编码器机型)

  • 能效满足国家一级能效标准: 550W 至 7.5kW 电机满足 GB30253-1 级能效要求

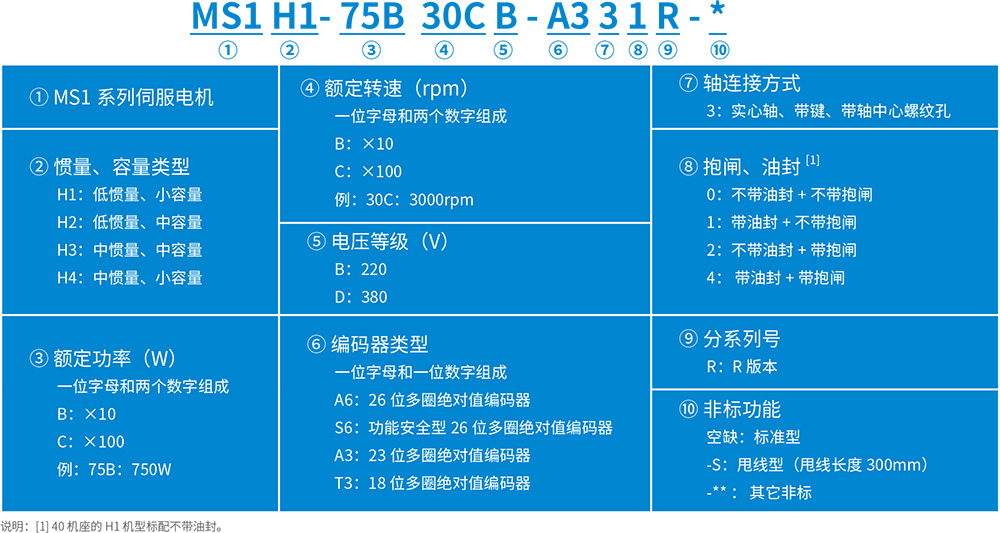

MS1-R系列命名规则

带26位编码器匹配驱动器

伺服电机伺服驱动器SV680******
非抱闸机型抱闸机型机座(mm)容量(kW)电压等级(V)SIZE推荐驱动器型号编号

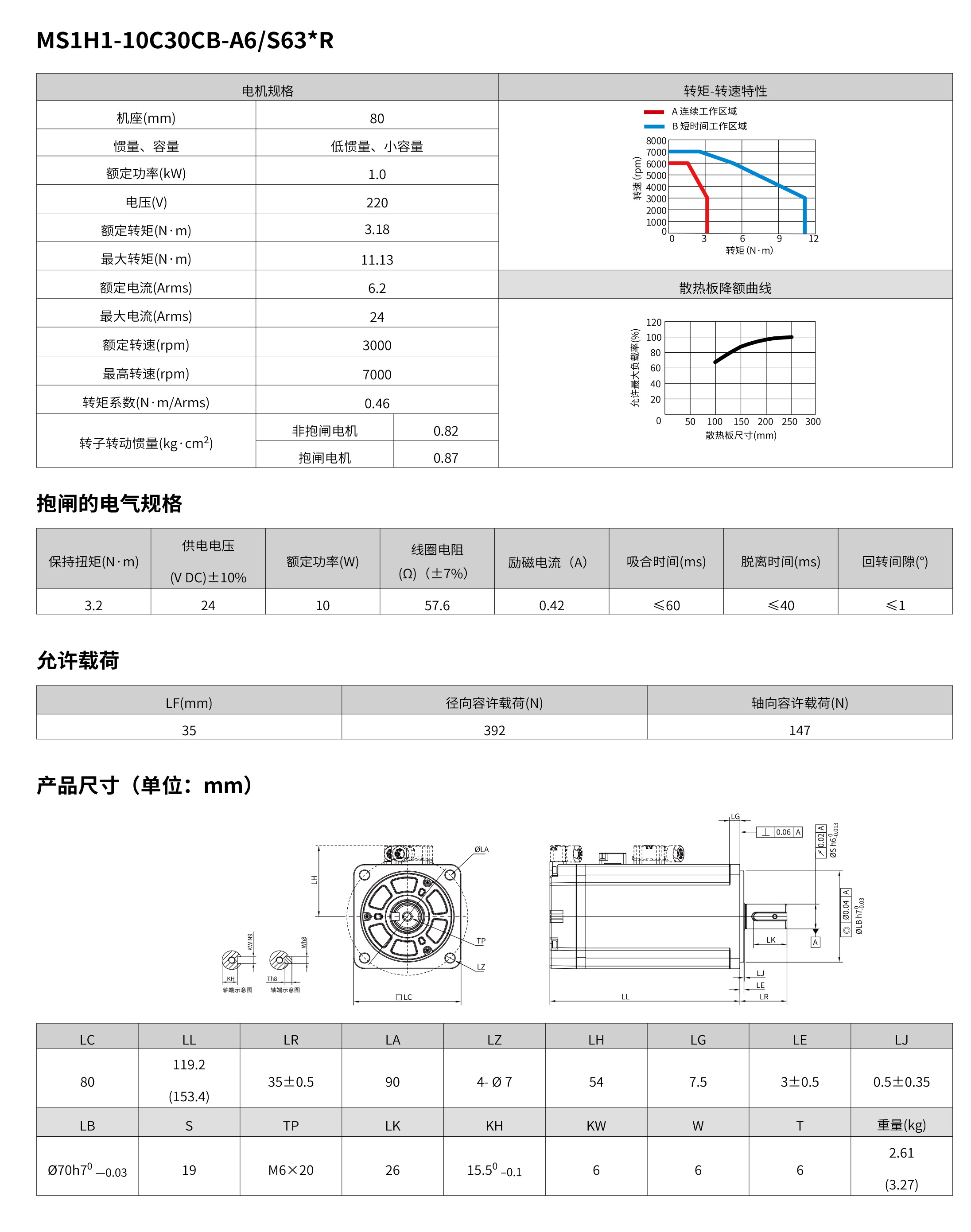

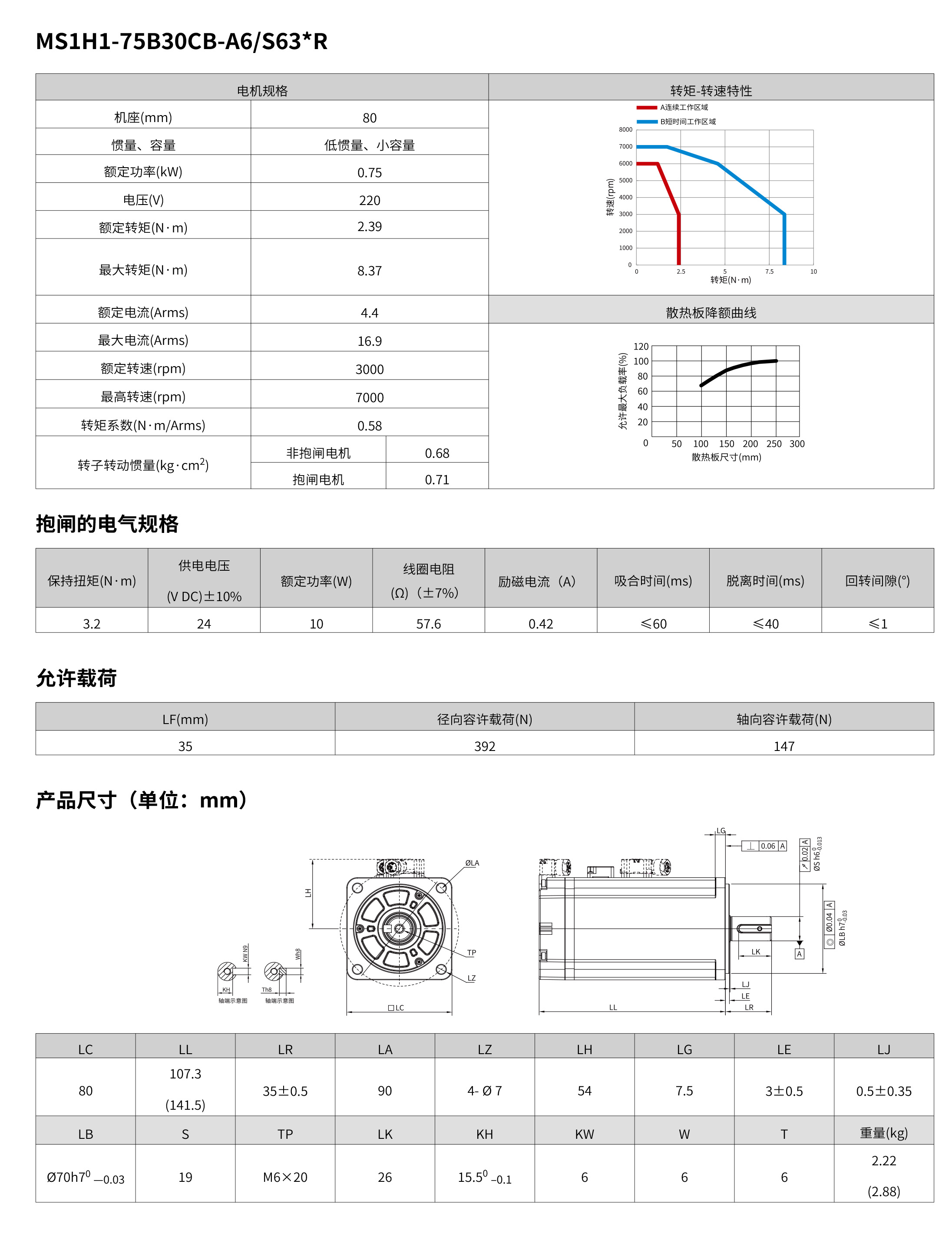

MS1H1(nN=3000rpm,nmax=7000rpm)系列额定值规格

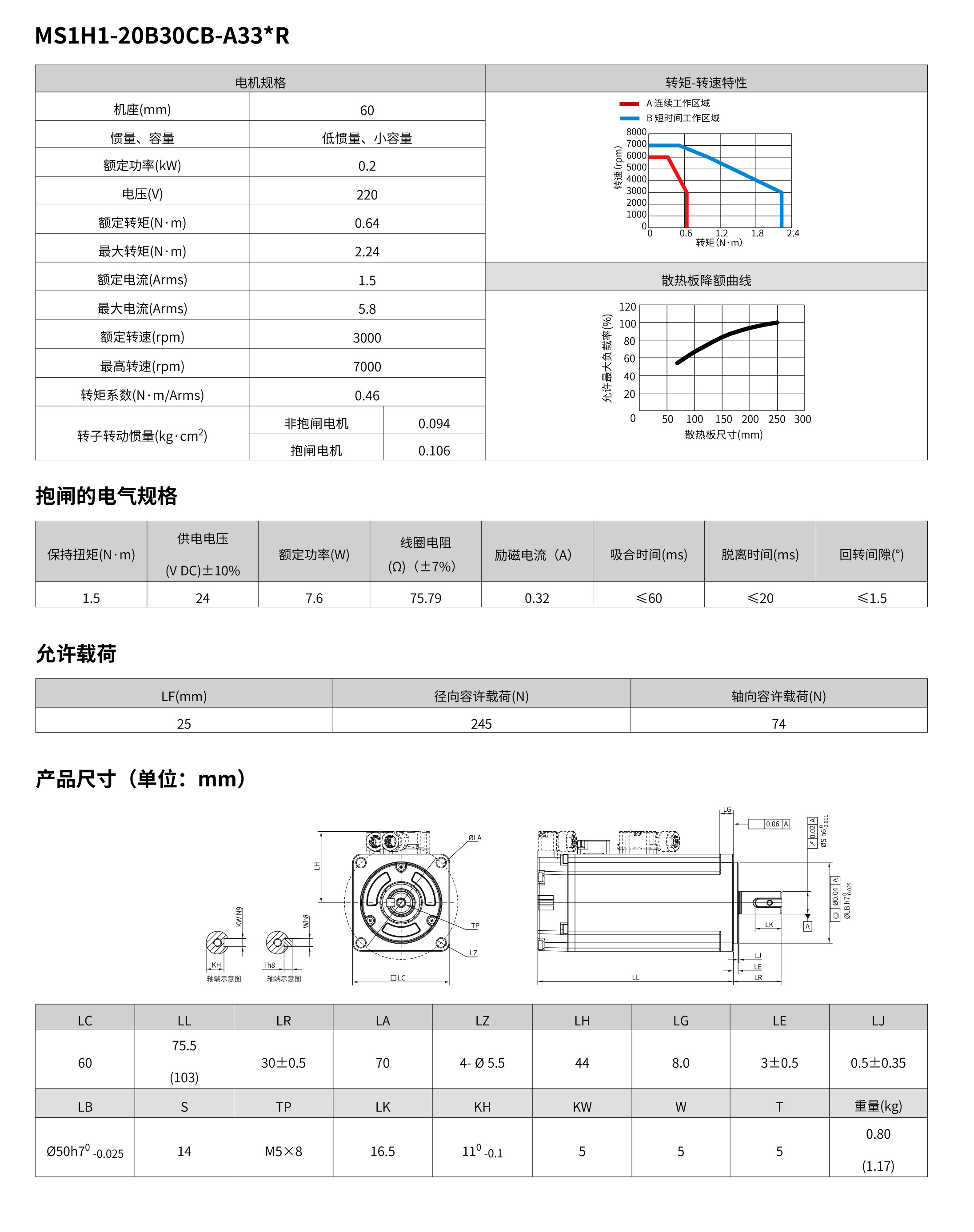

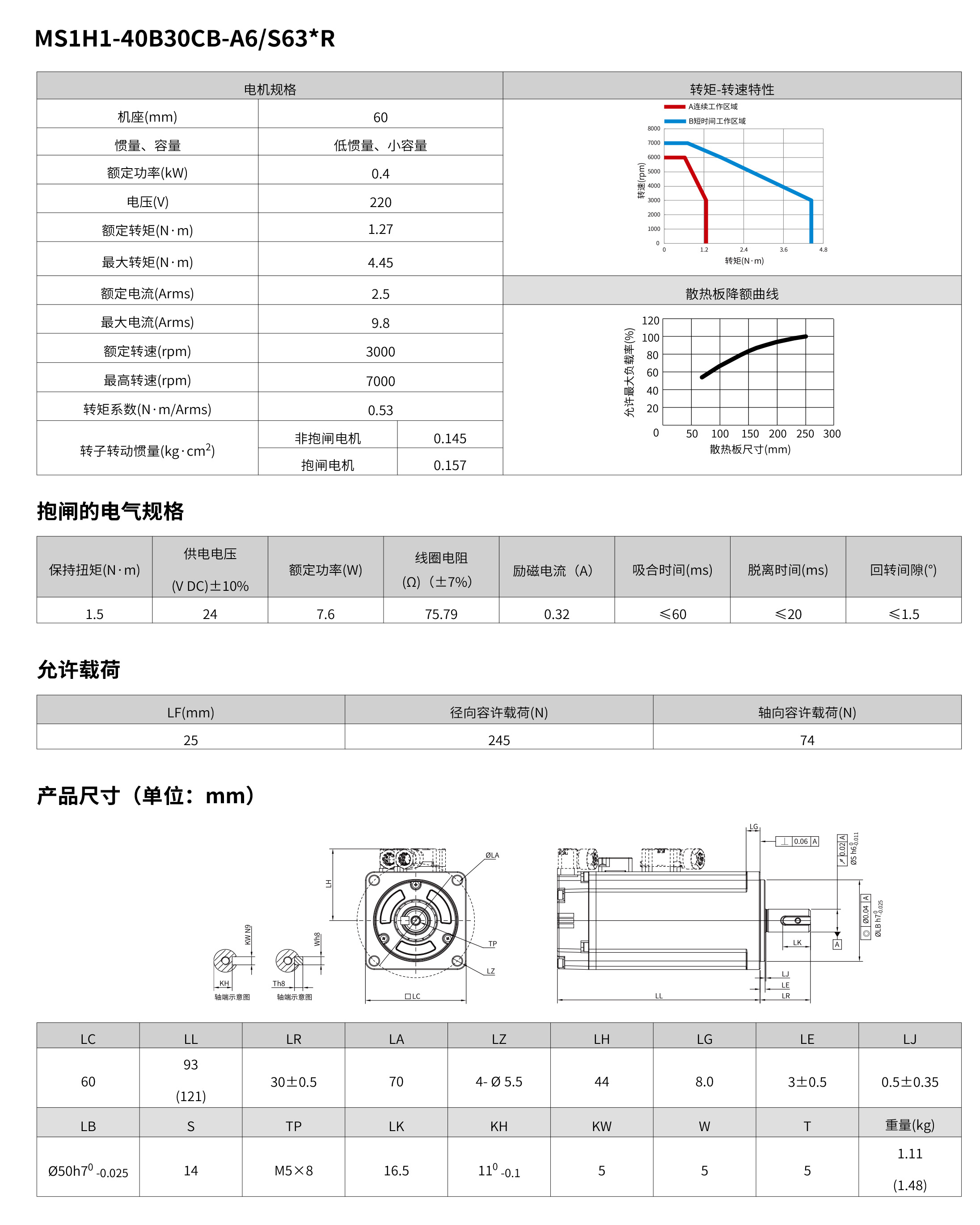

MS1H1-05B30CB-A6/S630RMS1H1-05B30CB-A6/S632R400.05单相/三相220VAS1R600002
MS1H1-10B30CB-A6/S630RMS1H1-10B30CB-A6/S632R400.1单相/三相220VAS1R600002

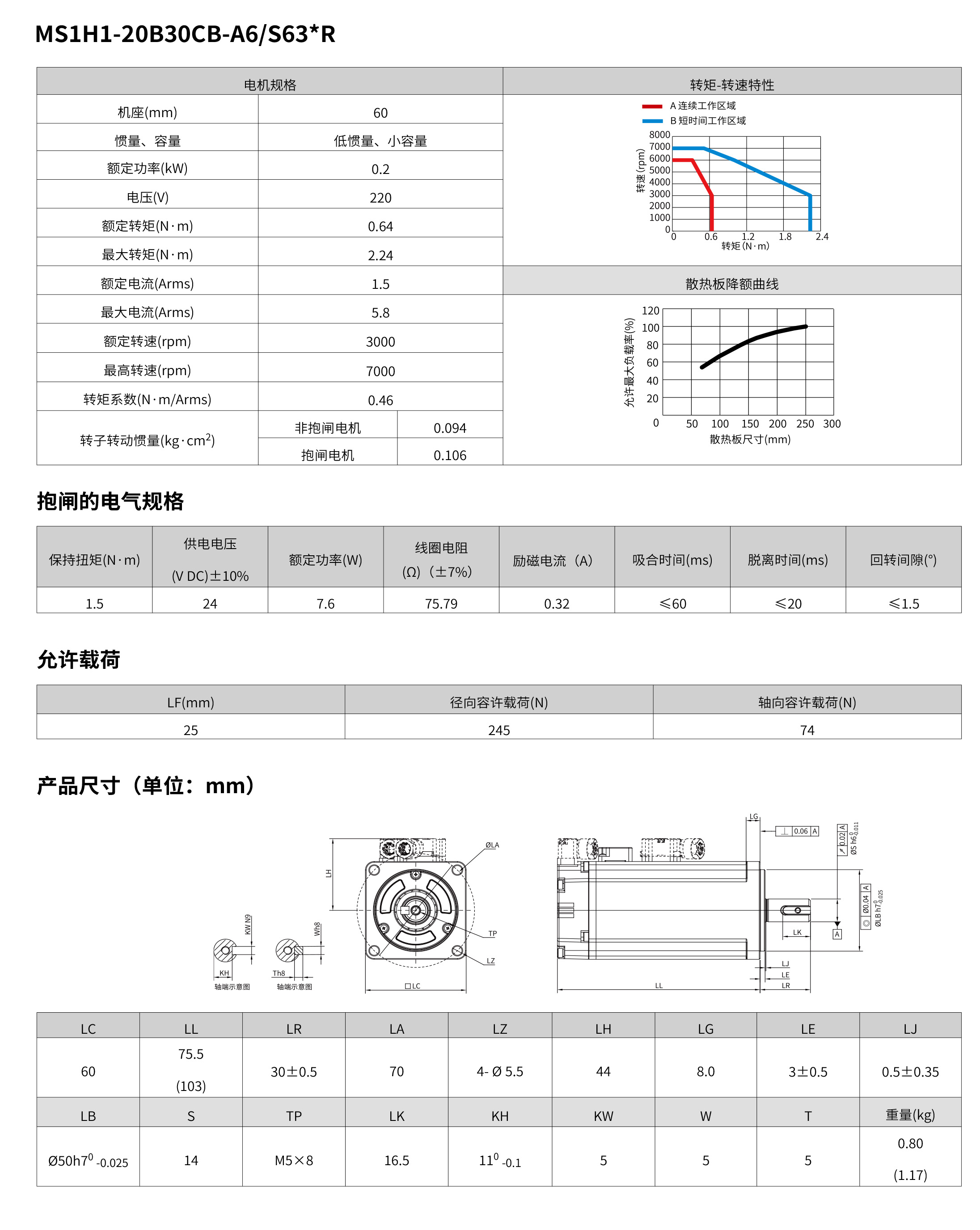

MS1H1-20B30CB-A6/S631RMS1H1-20B30CB-A6/S634R600.2单相/三相220VAS1R600002
MS1H1-40B30CB-A6/S631RMS1H1-40B30CB-A6/S634R600.4单相/三相220VAS2R800003

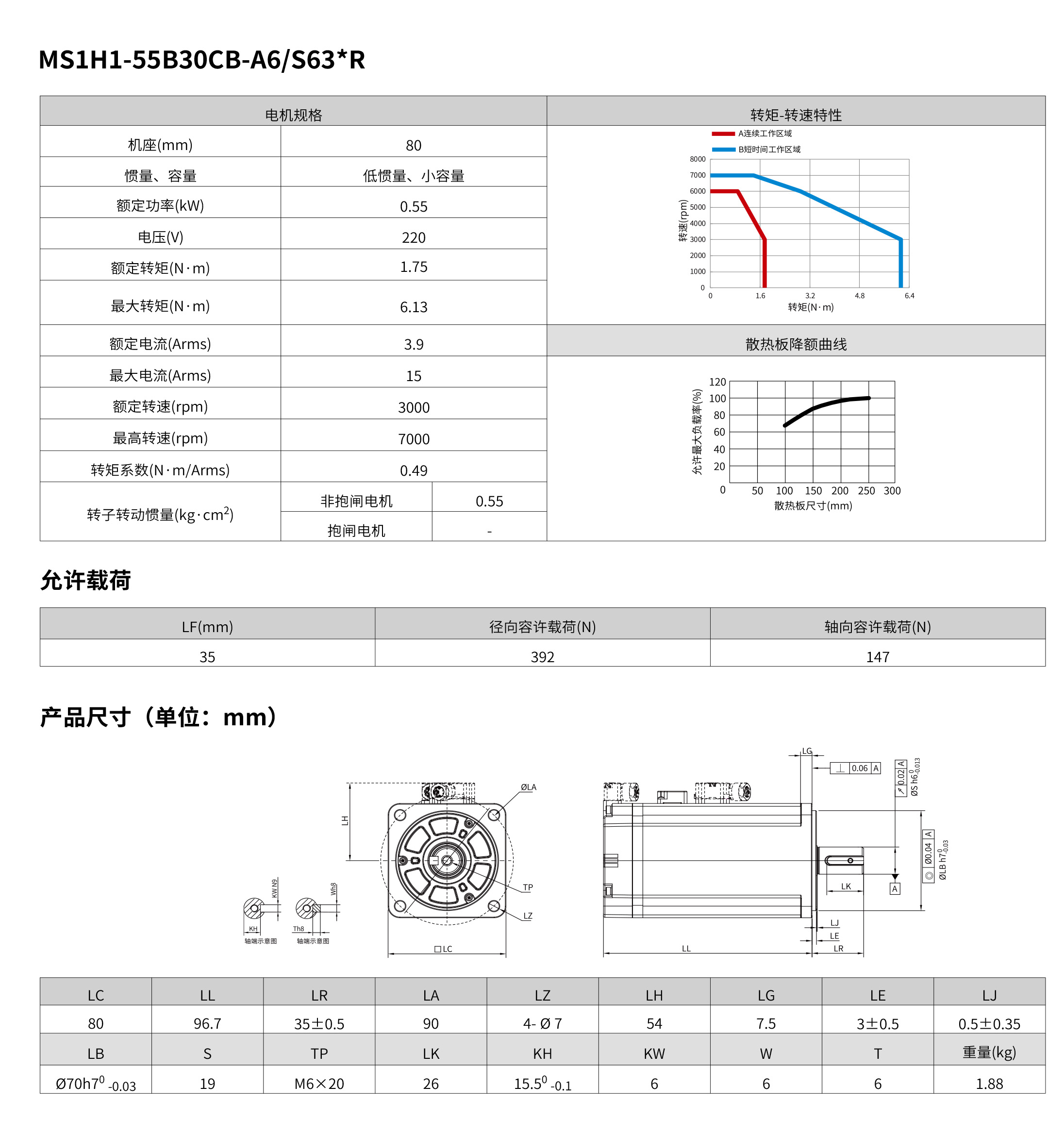

MS1H1-55B30CB-A6/S631R-800.55单相/三相220VCS5R500005
MS1H1-75B30CB-A6/S631RMS1H1-75B30CB-A6/S634R800.75单相/三相220VCS5R500005
MS1H1-10C30CB-A6/S631RMS1H1-10C30CB-A6/S634R801.0单相/三相220VCS7R600006

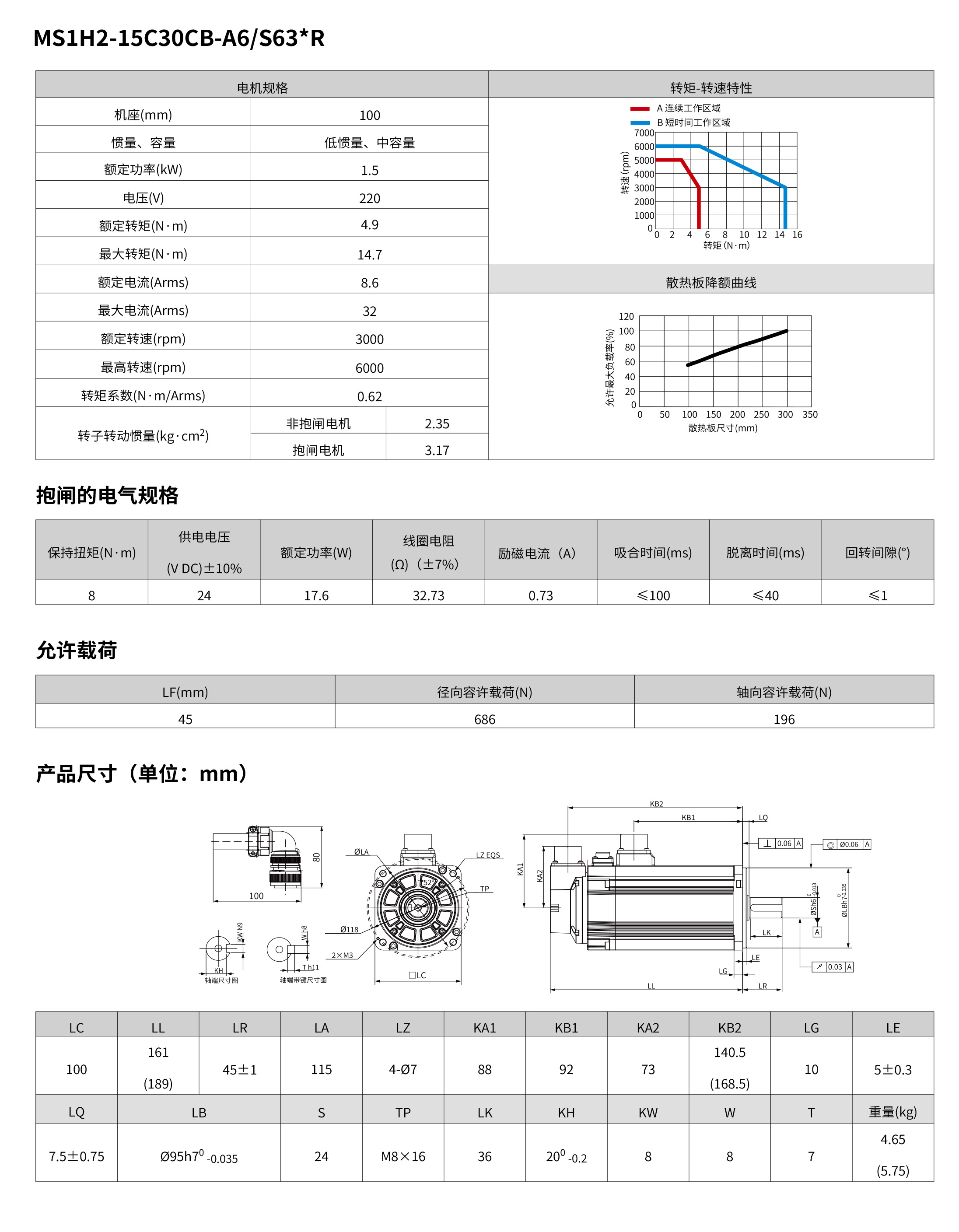

MS1H2(nN=3000rpm,nmax=6000rpm)系列额定值规格
MS1H2-10C30CB-A6/S631RMS1H2-10C30CB-A6/S634R1001.0单相/三相220VCS7R600006

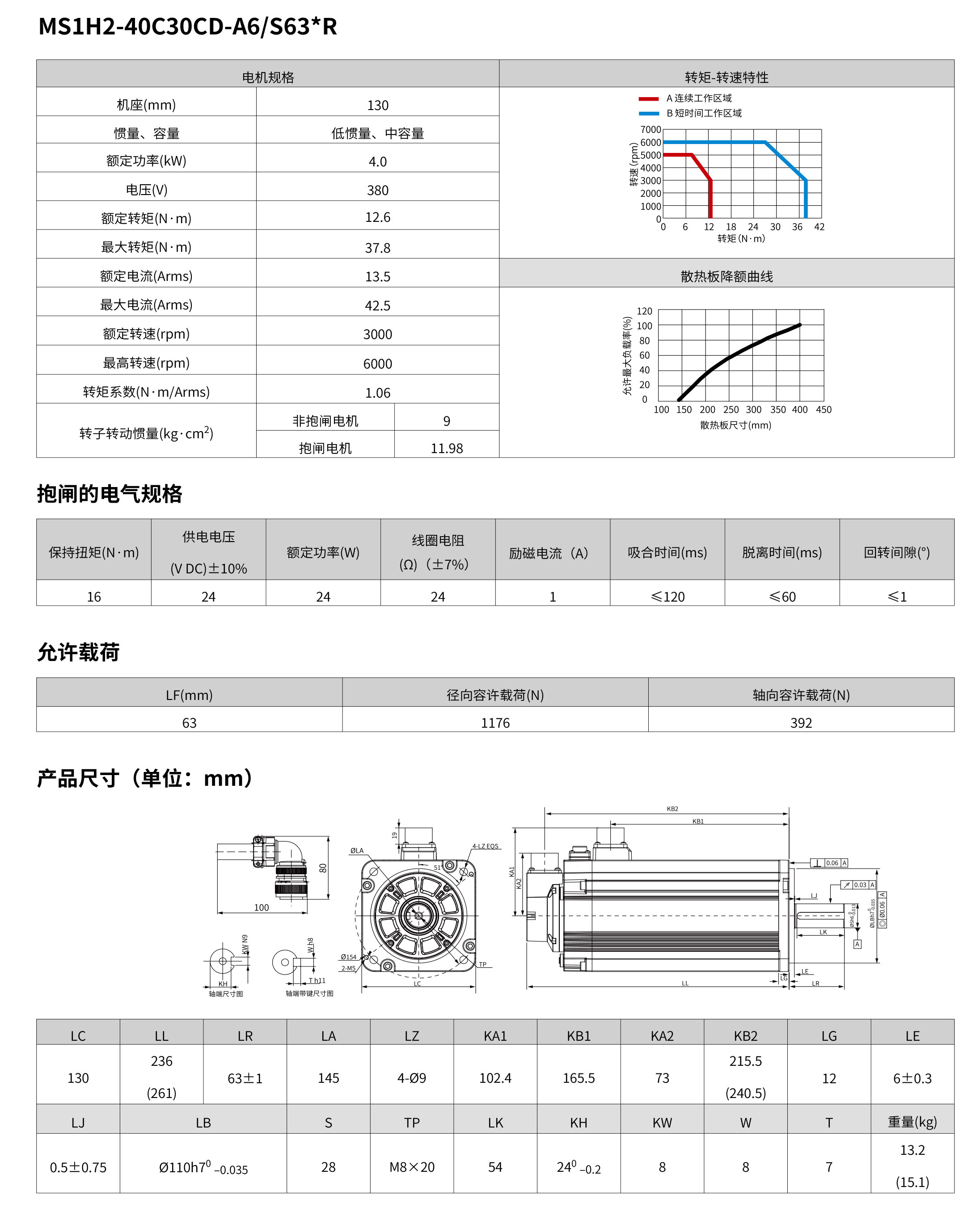

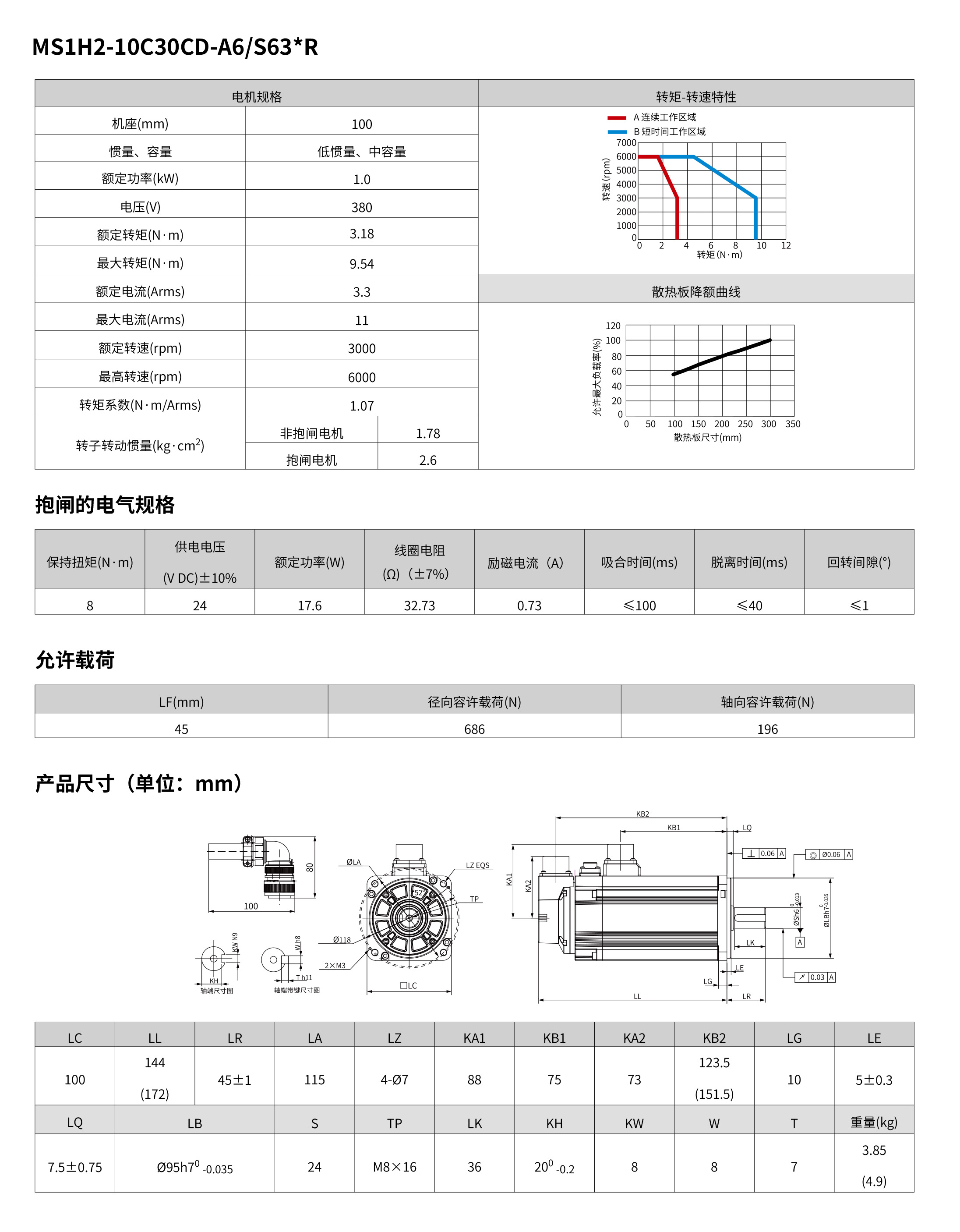

MS1H2-10C30CD-A6/S631RMS1H2-10C30CD-A6/S634R1001.0三相380VCT3R510001
MS1H2-15C30CB-A6/S631RMS1H2-15C30CB-A6/S634R1001.5单相/三相220VDS01200007

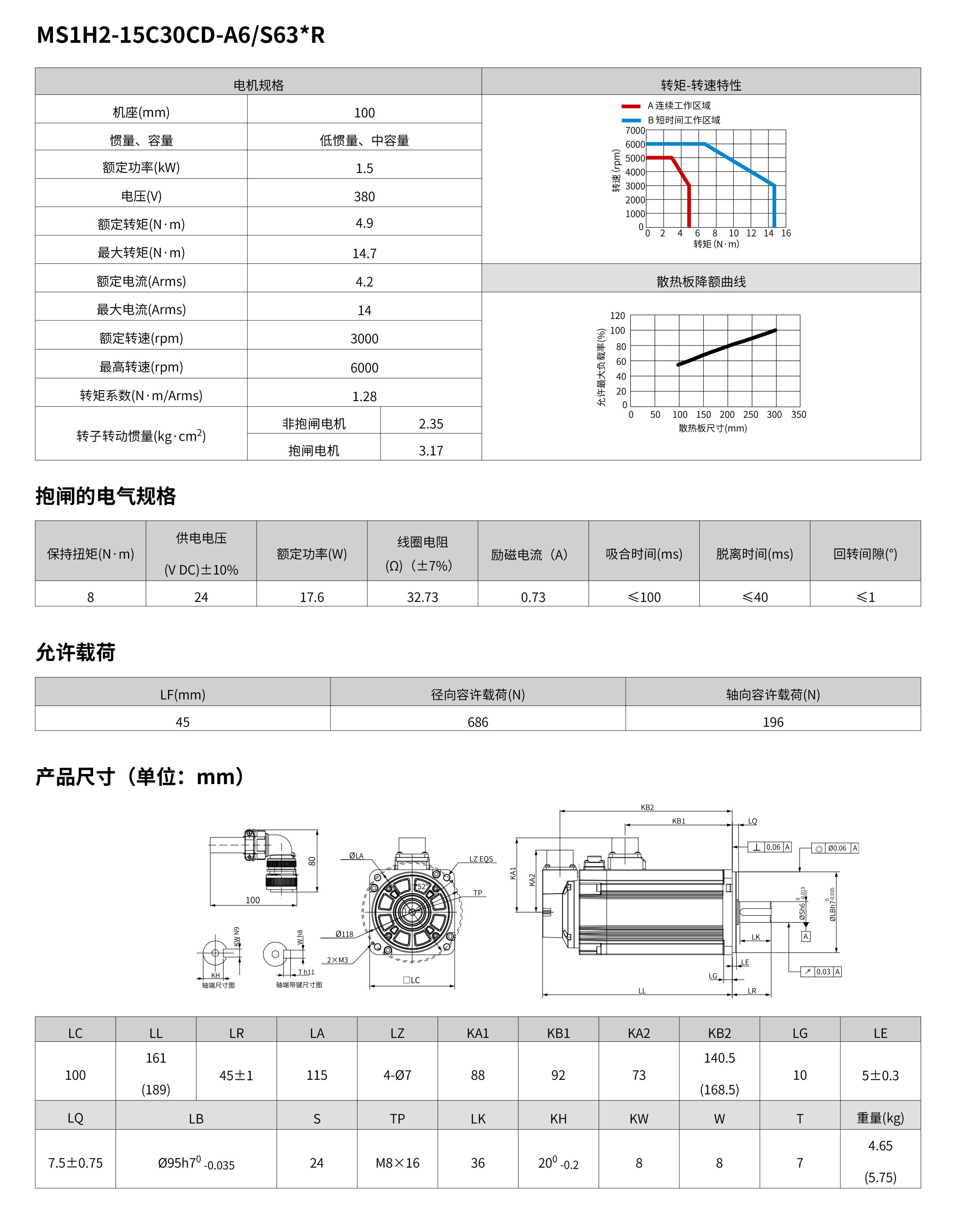

MS1H2-15C30CD-A6/S631RMS1H2-15C30CD-A6/S634R1001.5三相380VCT5R410002

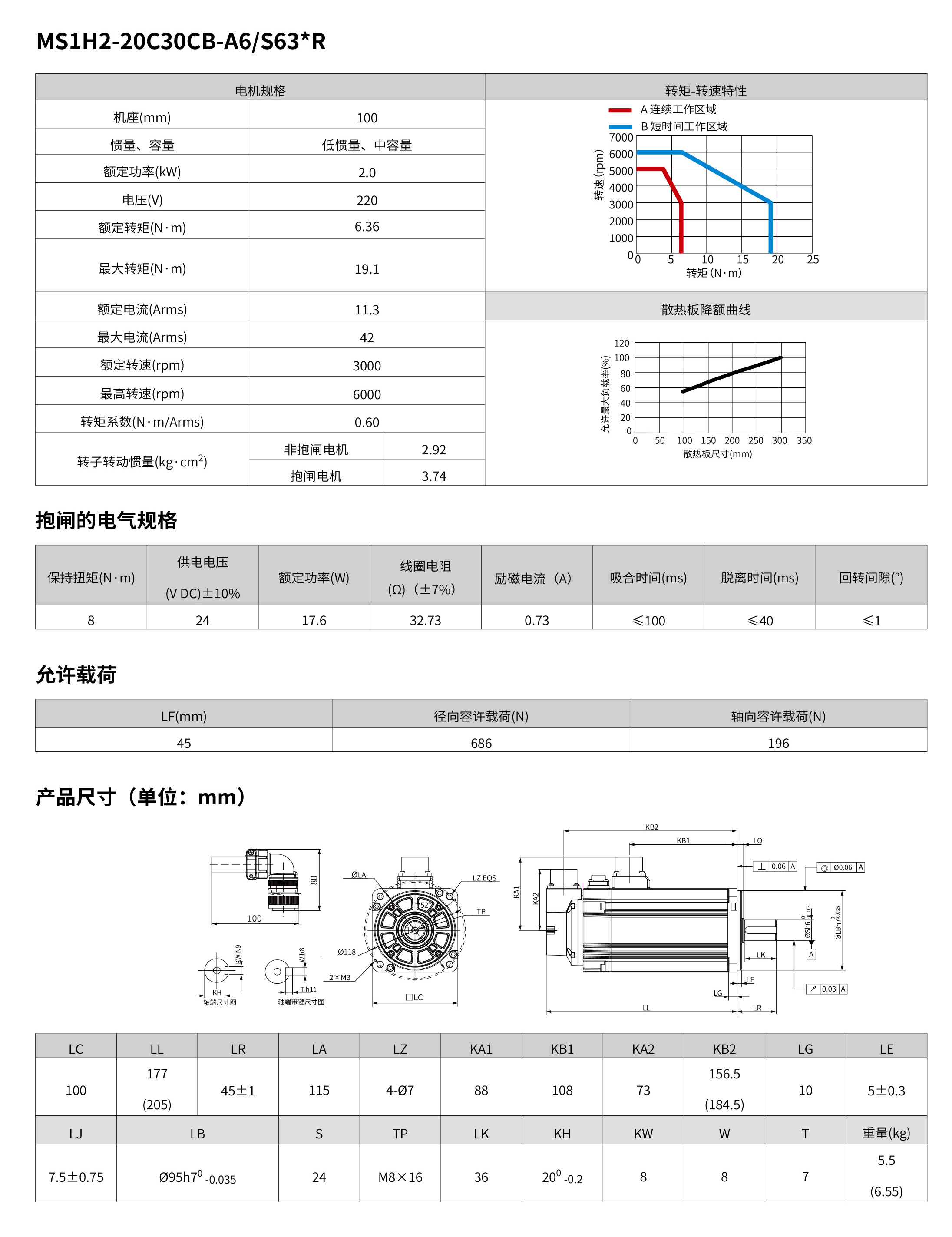

MS1H2-20C30CB-A6/S631RMS1H2-20C30CB-A6/S634R1002.0三相220VES01800008
MS1H2-20C30CD-A6/S631RMS1H2-20C30CD-A6/S634R1002.0三相380VDT8R410003
MS1H2-25C30CB-A6/S631RMS1H2-25C30CB-A6/S634R1002.5三相220VES02200009
MS1H2-25C30CD-A6/S631RMS1H2-25C30CD-A6/S634R1002.5三相380VDT01210004

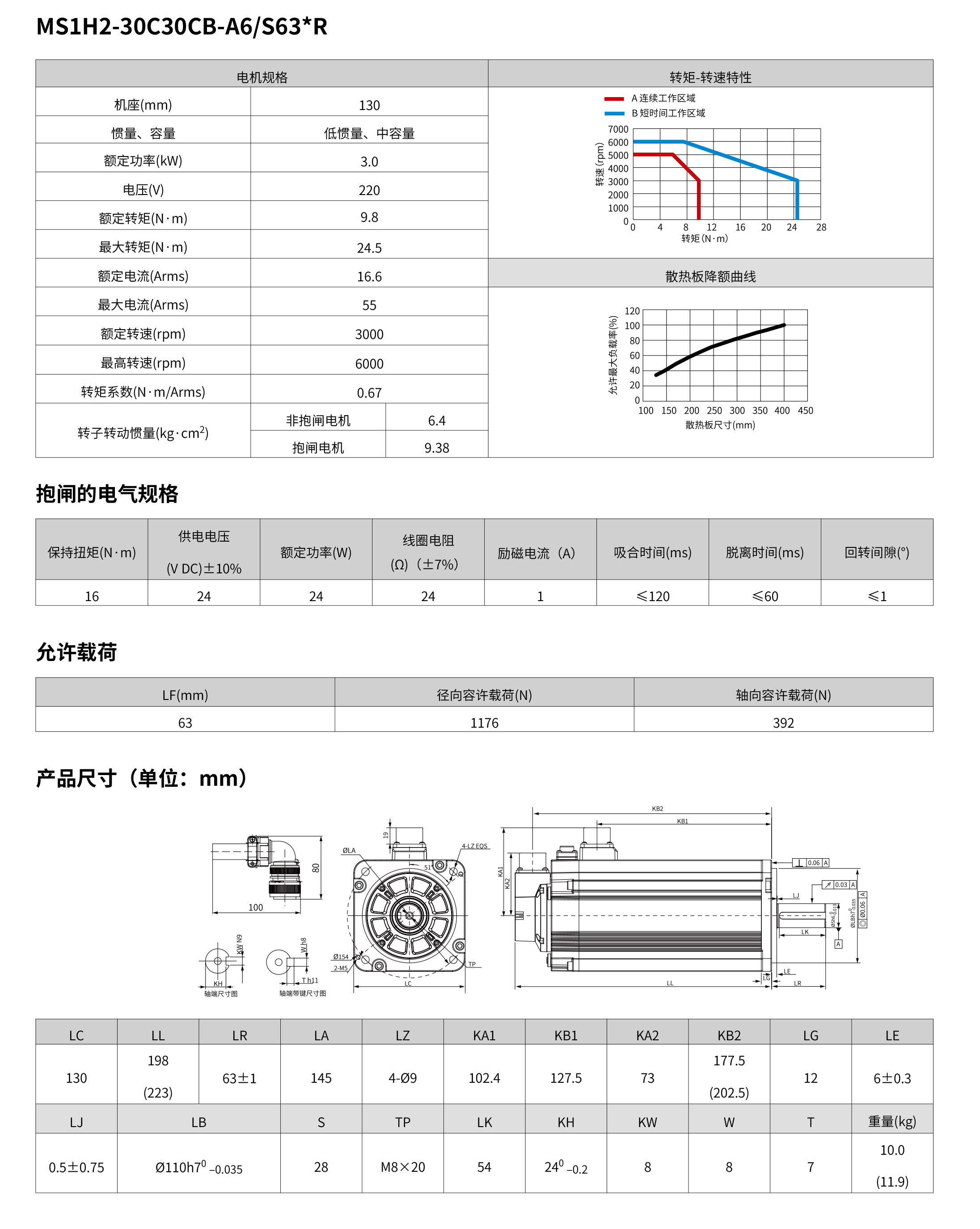

MS1H2-30C30CB-A6/S631RMS1H2-30C30CB-A6/S634R1303.0三相220VES02200009
MS1H2-30C30CD-A6/S631RMS1H2-30C30CD-A6/S634R1303.0三相380VDT01210004
MS1H2-40C30CB-A6/S631RMS1H2-40C30CB-A6/S634R1304.0三相220VES02700010
MS1H2-40C30CD-A6/S631RMS1H2-40C30CD-A6/S634R1304.0三相380VET01710005

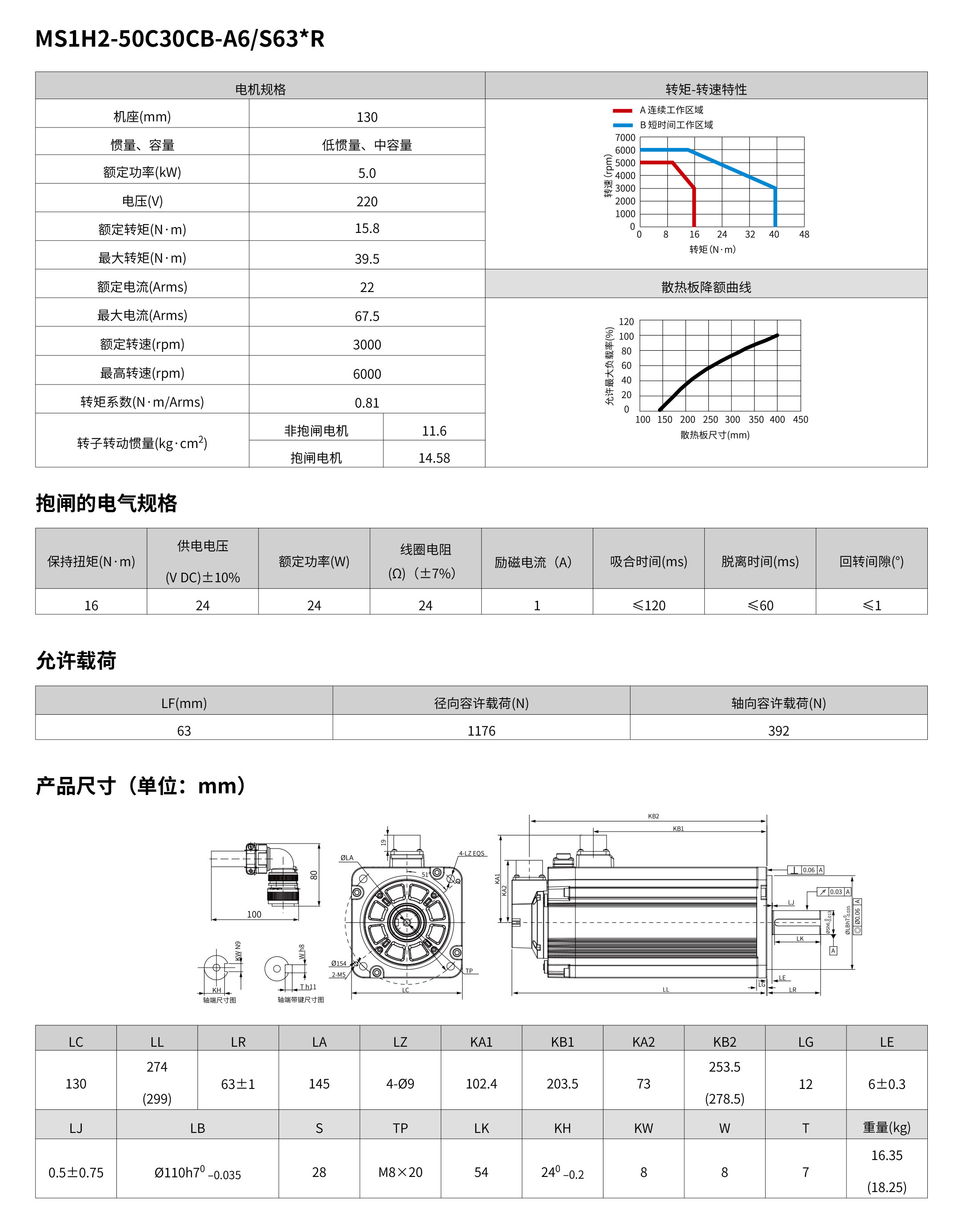

MS1H2-50C30CB-A6/S631RMS1H2-50C30CB-A6/S634R1305.0三相220VES02700010

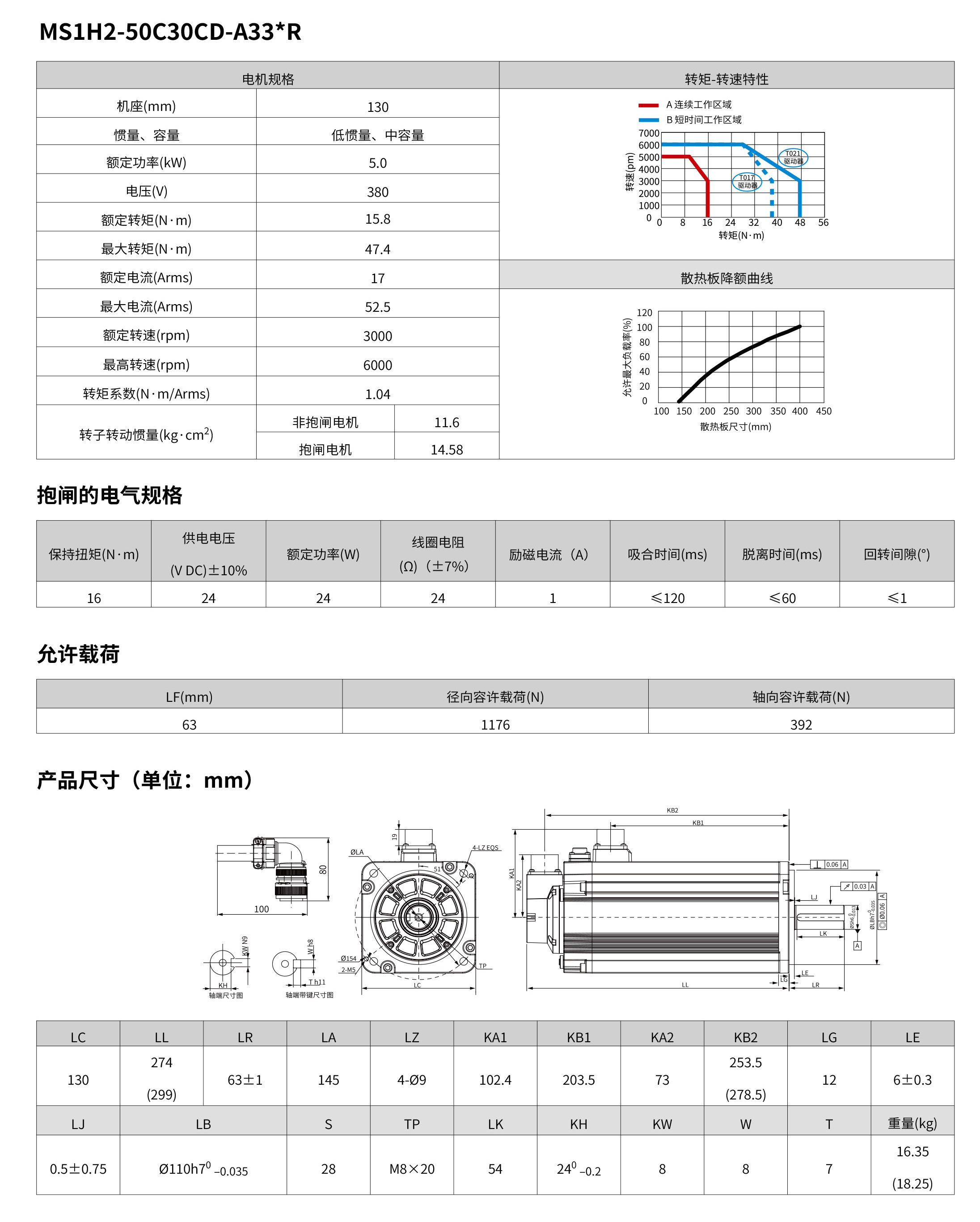

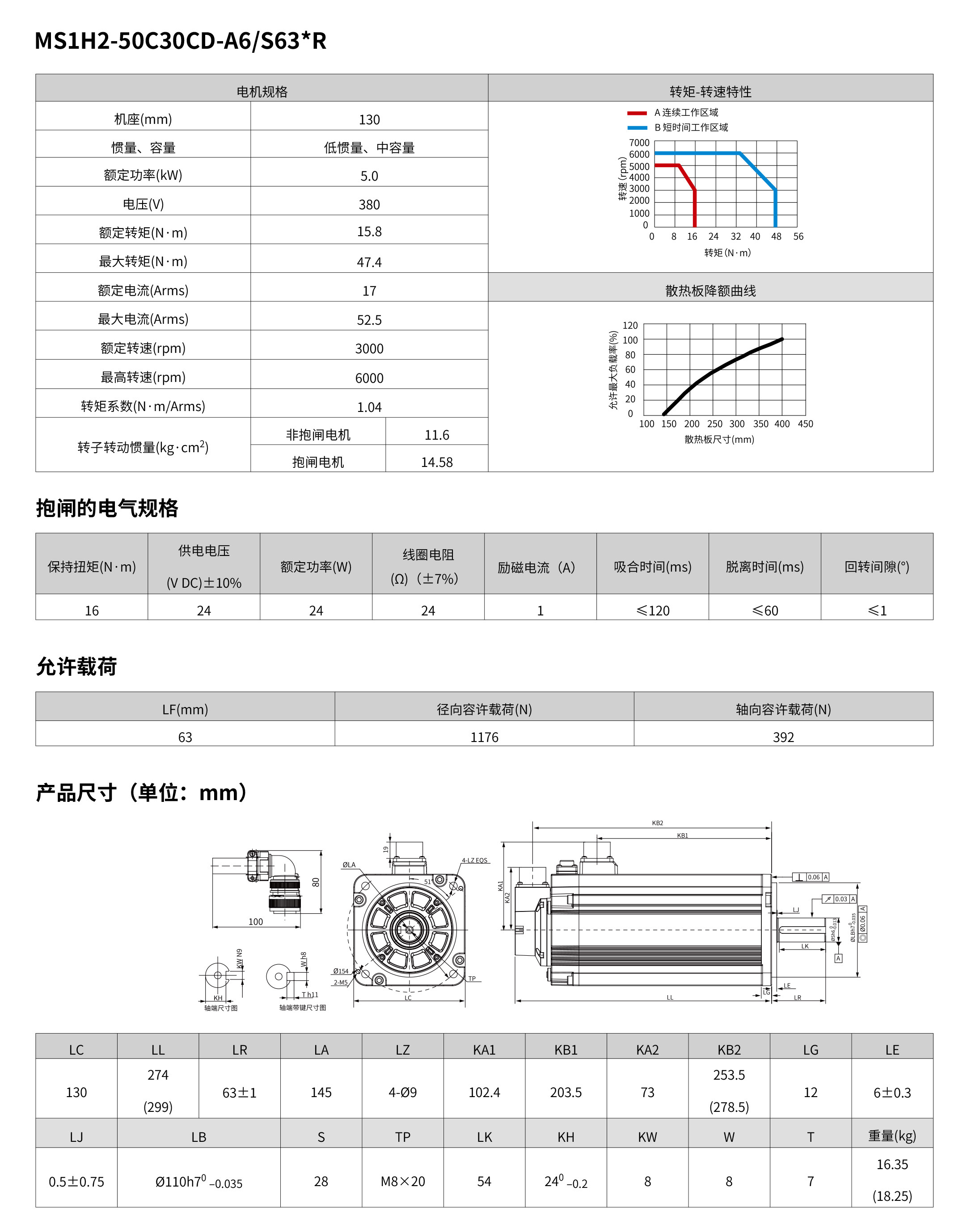

MS1H2-50C30CD-A6/S631RMS1H2-50C30CD-A6/S634R1305.0三相380VET02110006

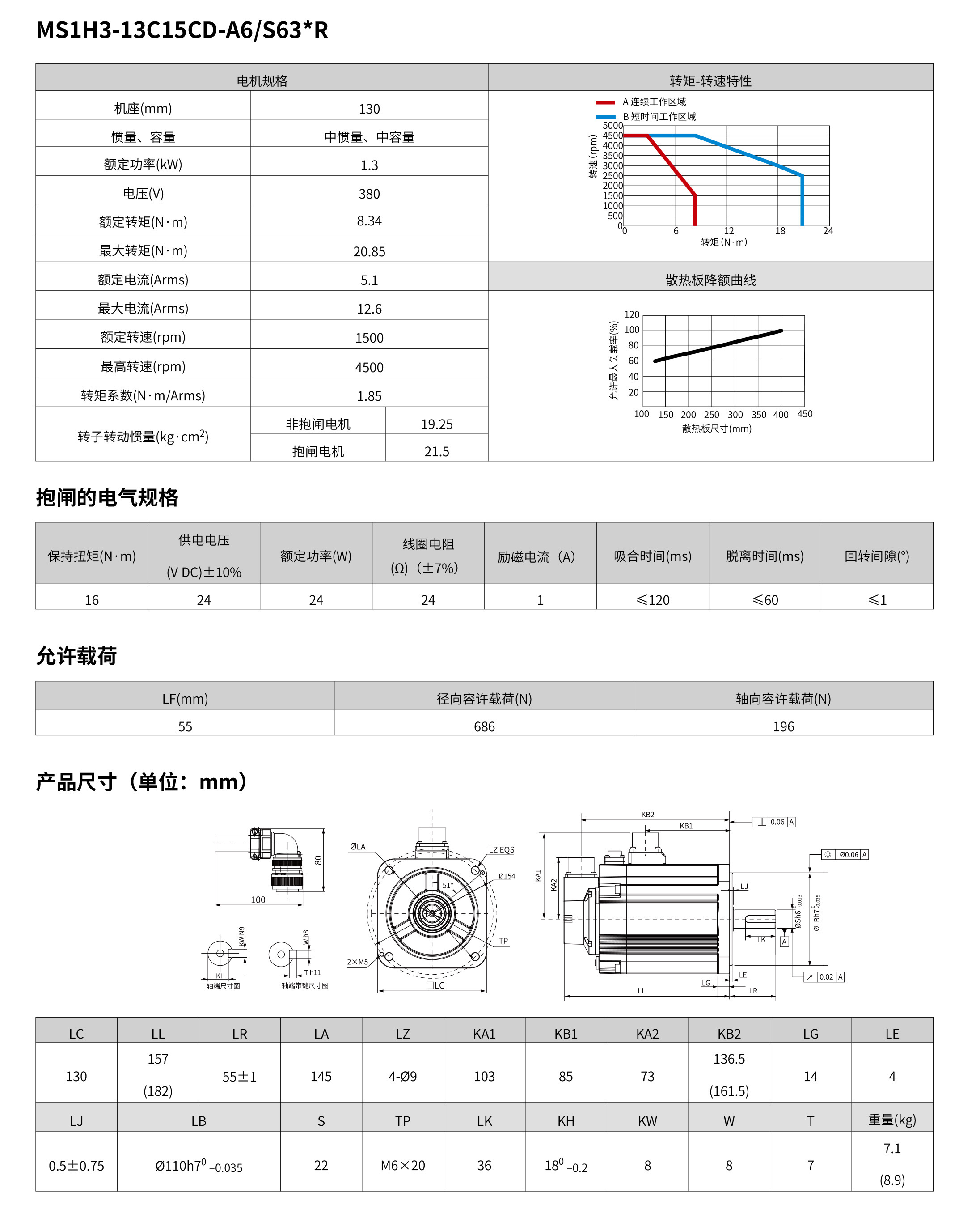

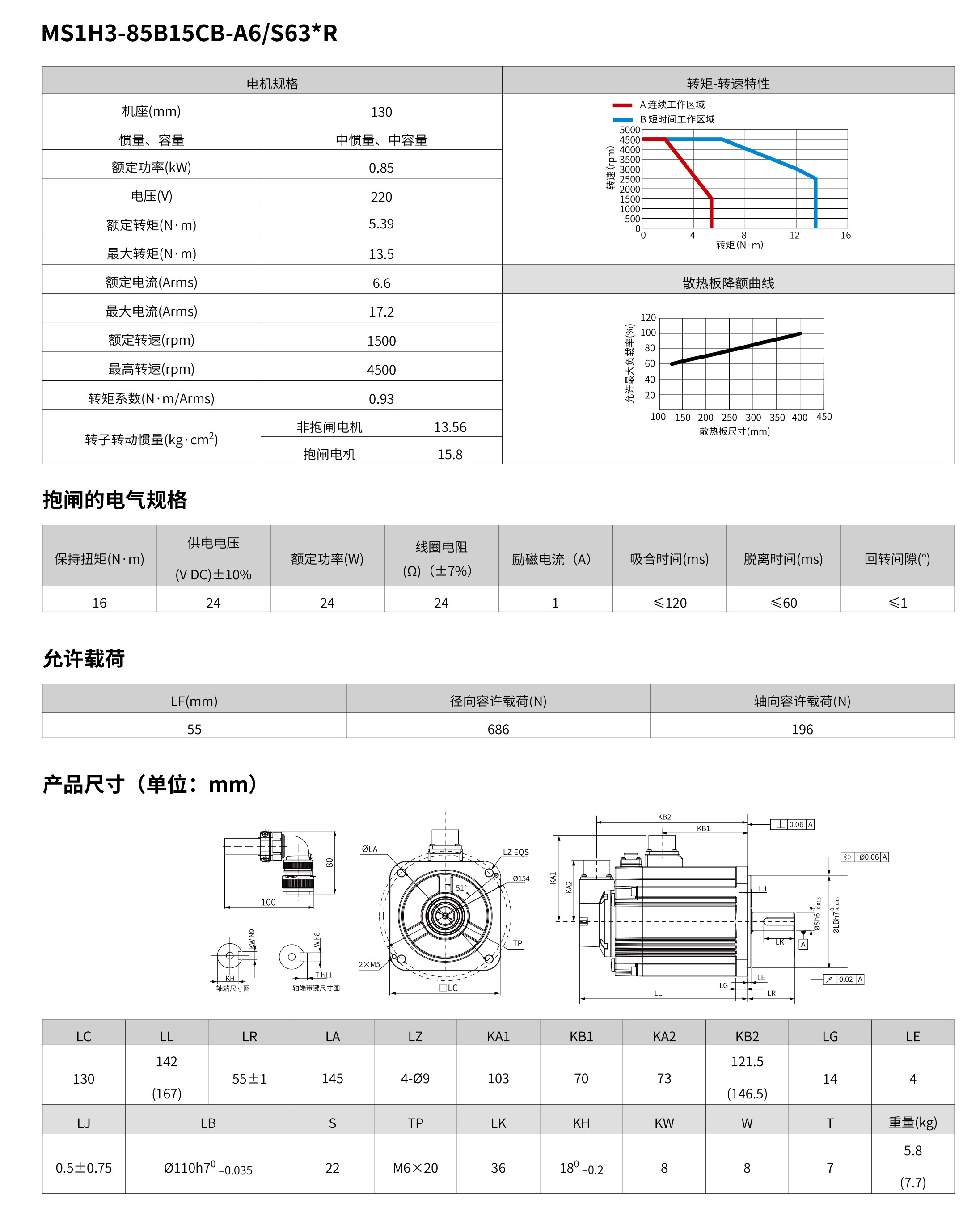

MS1H3(nN=1500rpm,nmax=4500rpm)系列额定值规格

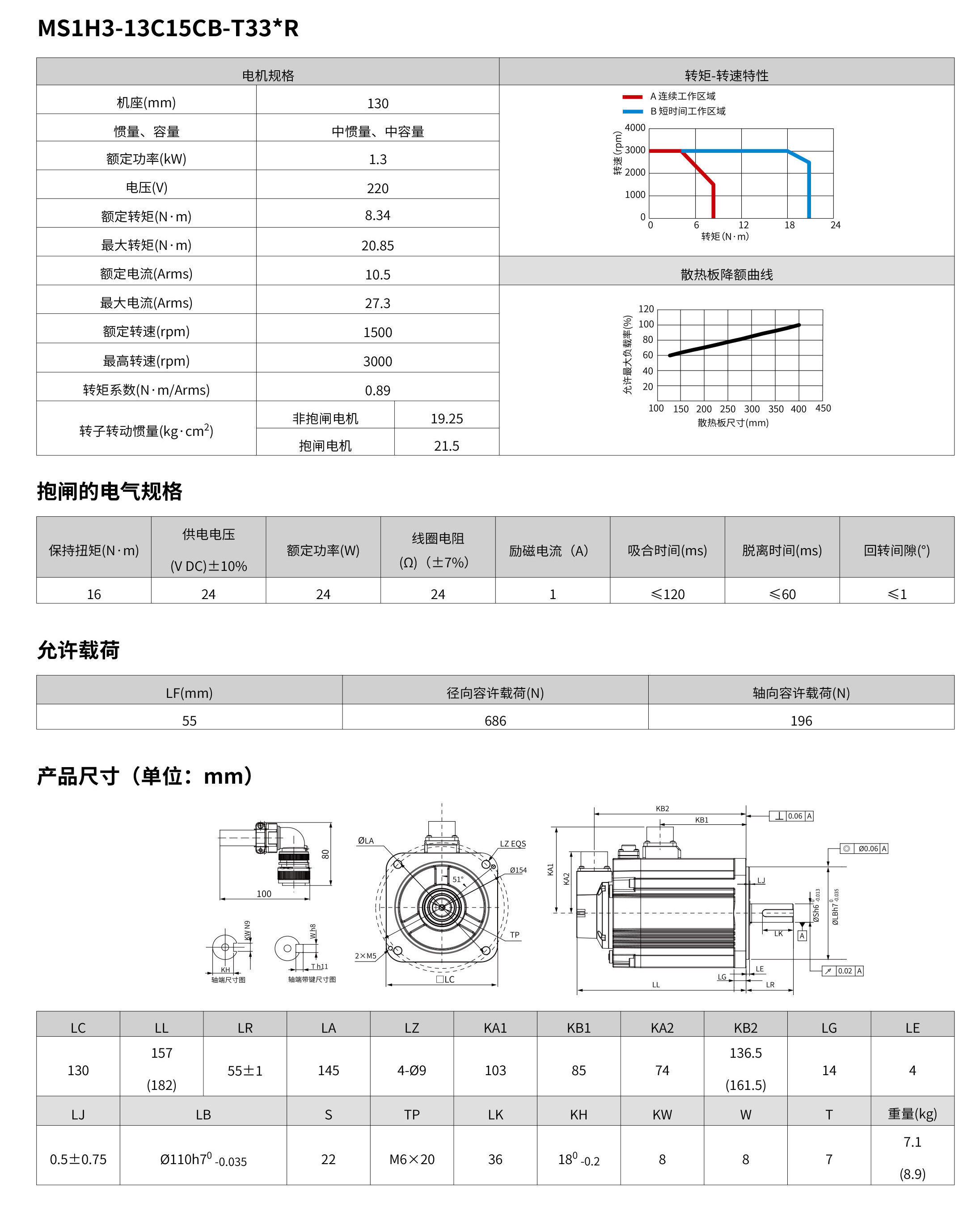

MS1H3-85B15CB-A6/S631RMS1H3-85B15CB-A6/S634R1300.85单相/三相220VCS7R600006

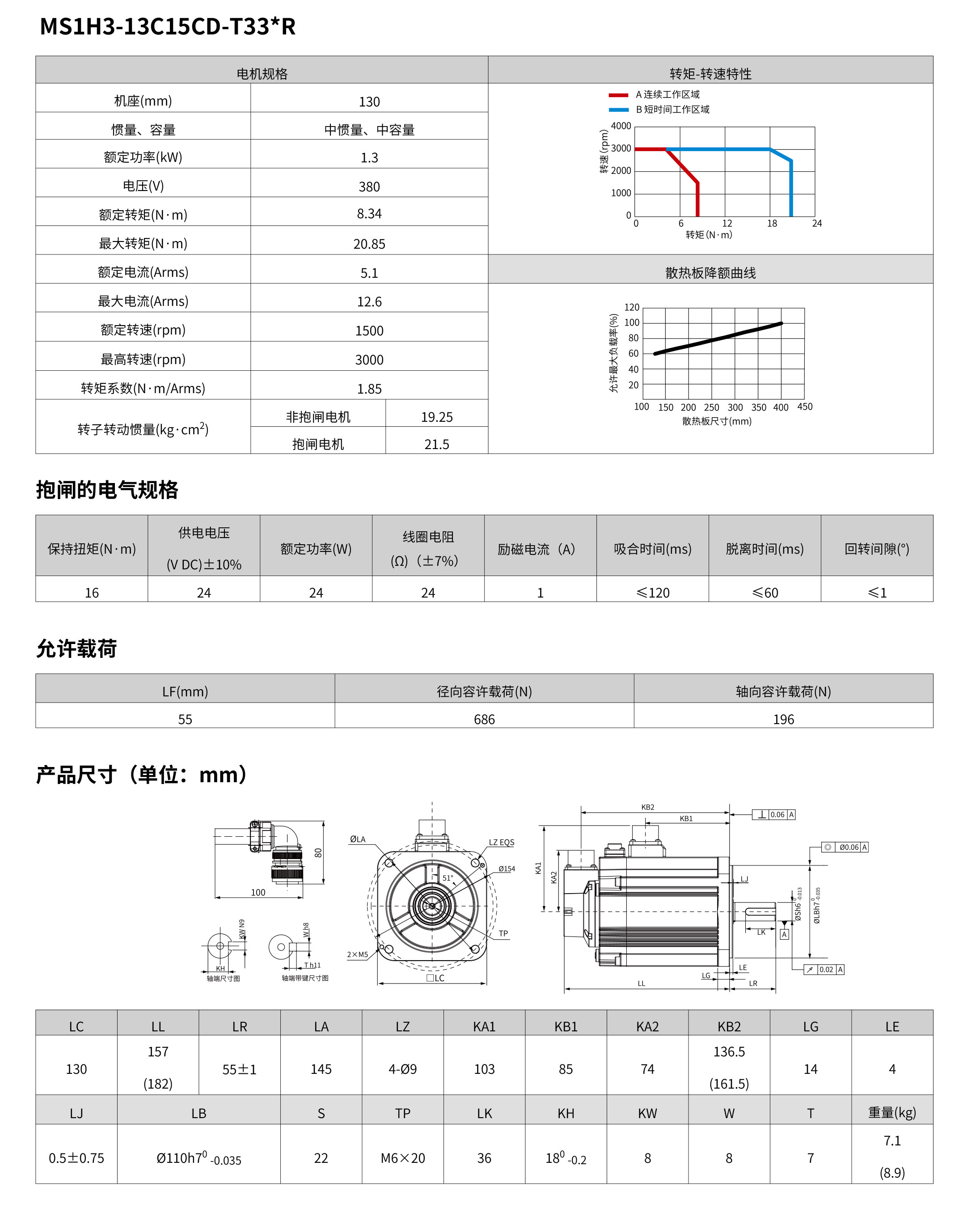

MS1H3-85B15CD-A6/S631RMS1H3-85B15CD-A6/S634R1300.85三相380VCT3R510001

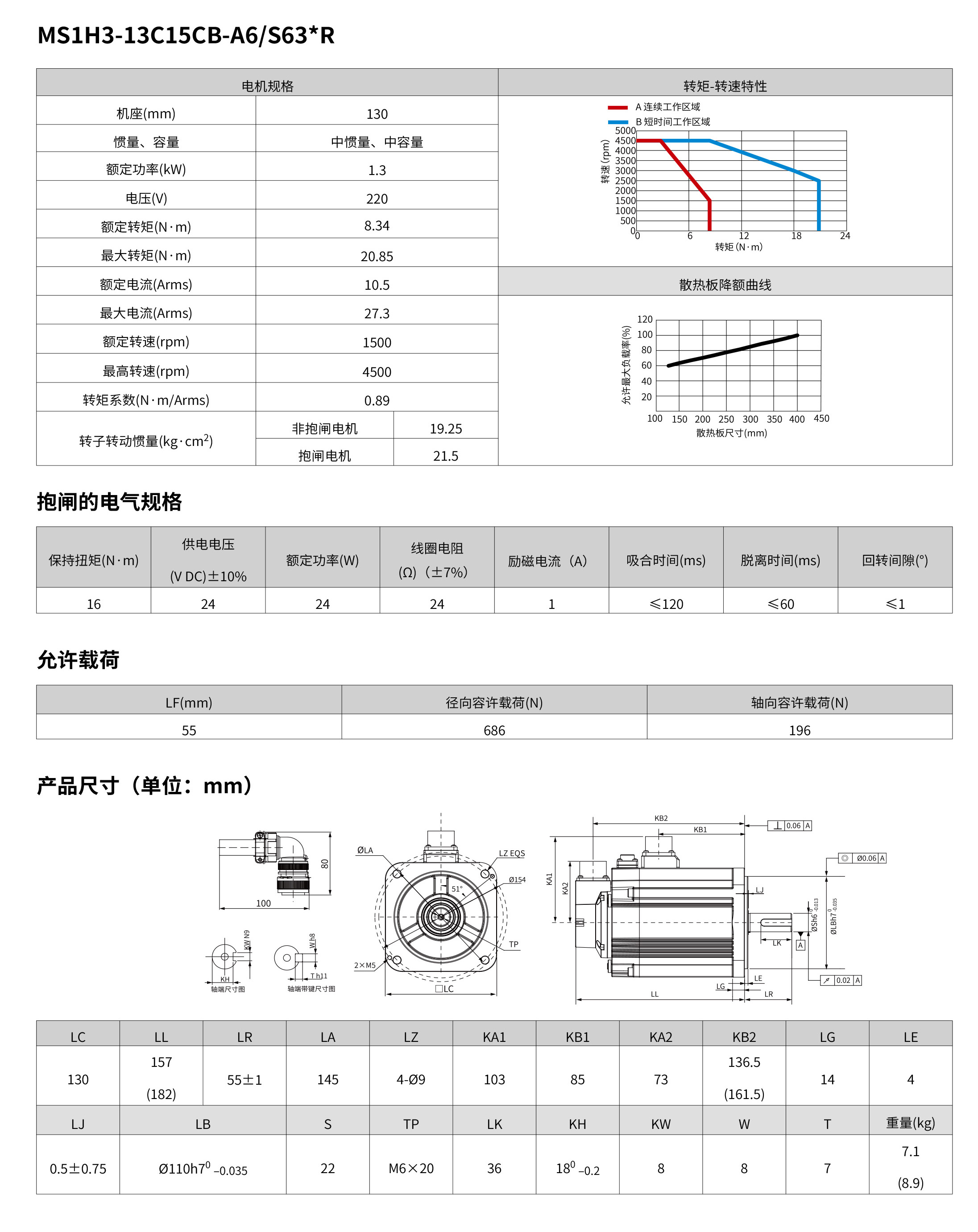

MS1H3-13C15CB-A6/S631RMS1H3-13C15CB-A6/S634R1301.3单相/三相220VDS01200007
MS1H3-13C15CD-A6/S631RMS1H3-13C15CD-A6/S634R1301.3三相380VCT5R410002
MS1H3-18C15CB-A6/S631RMS1H3-18C15CB-A6/S634R1301.8三相220VES01800008
MS1H3-18C15CD-A6/S631RMS1H3-18C15CD-A6/S634R1301.8三相380VDT8R410003

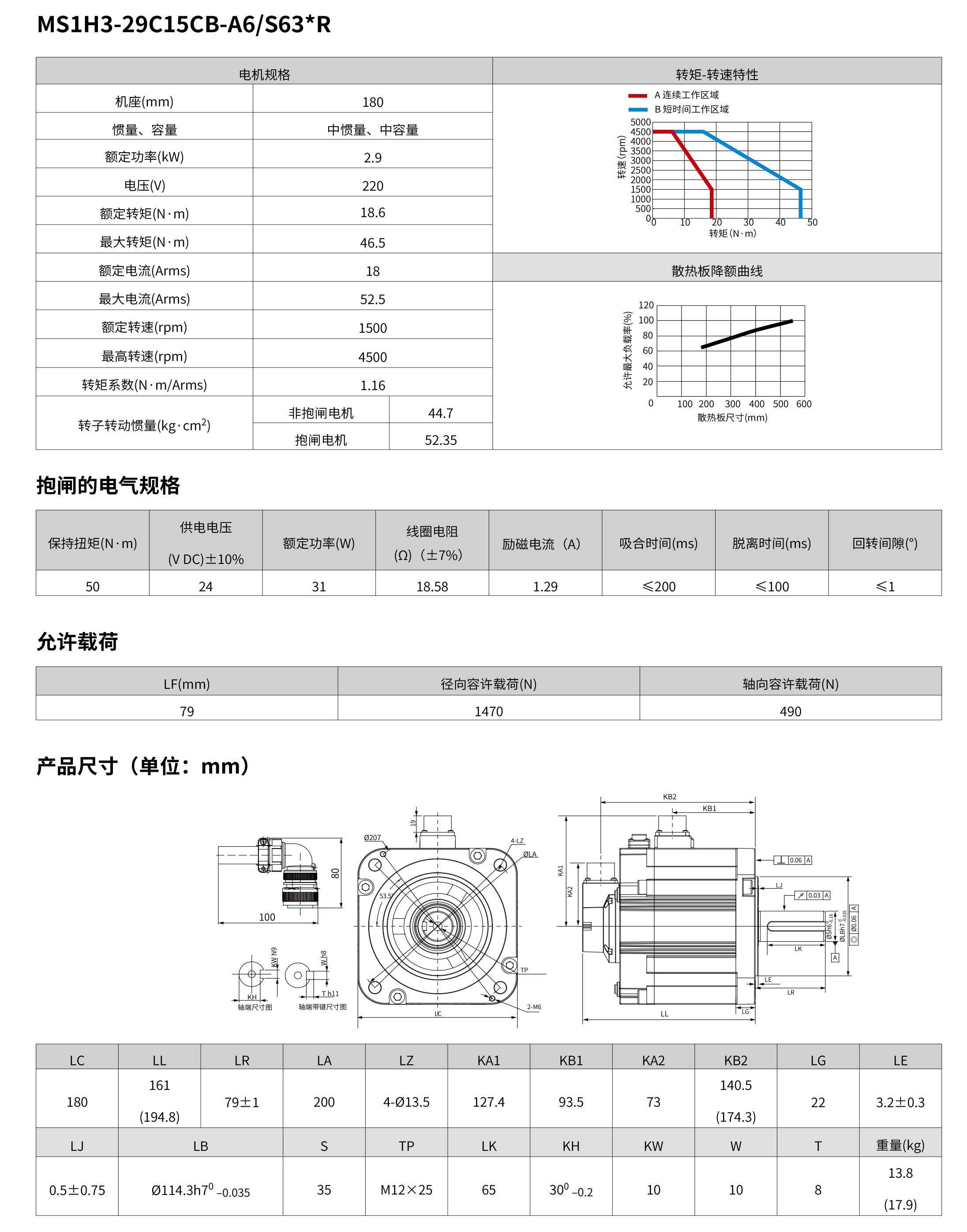

MS1H3-29C15CB-A6/S631RMS1H3-29C15CB-A6/S634R1802.9三相220VES02200009

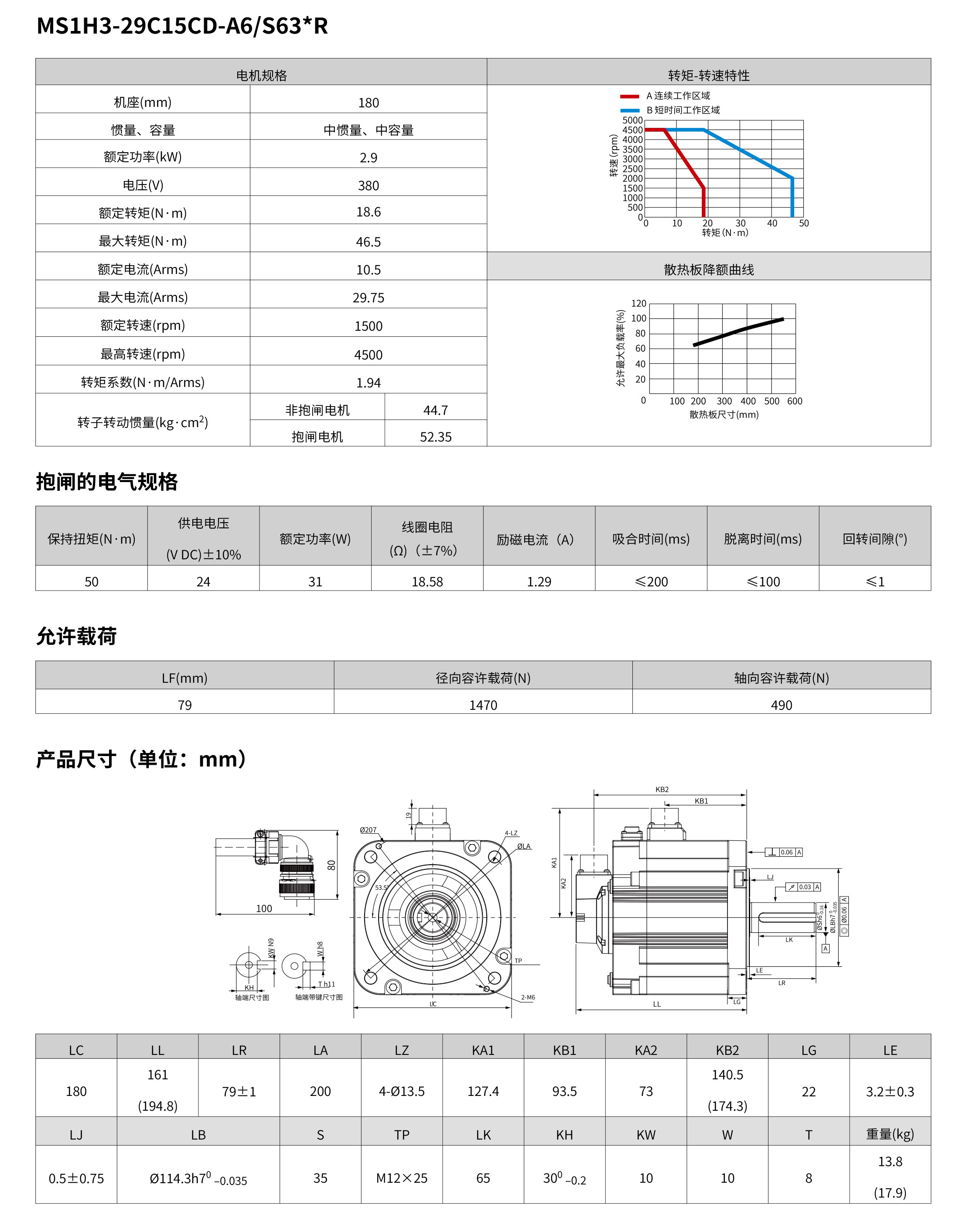

MS1H3-29C15CD-A6/S631RMS1H3-29C15CD-A6/S634R1802.9三相380VDT01210004
MS1H3-44C15CB-A6/S631RMS1H3-44C15CB-A6/S634R1804.4三相220VES02700010
MS1H3-44C15CD-A6/S631RMS1H3-44C15CD-A6/S634R1804.4三相380VET01710005

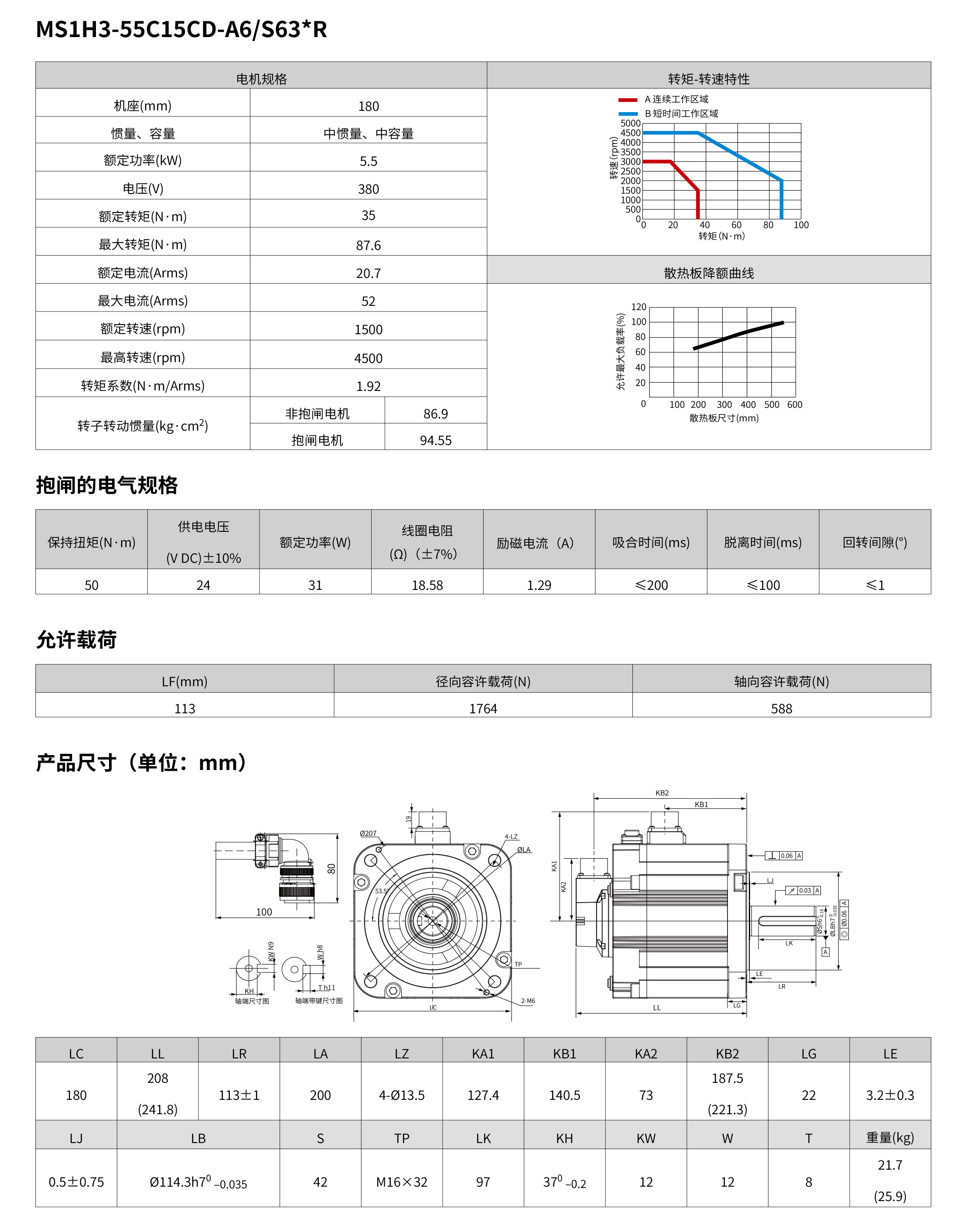

MS1H3-55C15CD-A6/S631RMS1H3-55C15CD-A6/S634R1805.5三相380VET02110006
MS1H3-75C15CD-A6/S631RMS1H3-75C15CD-A6/S634R1807.5三相380VET02610007

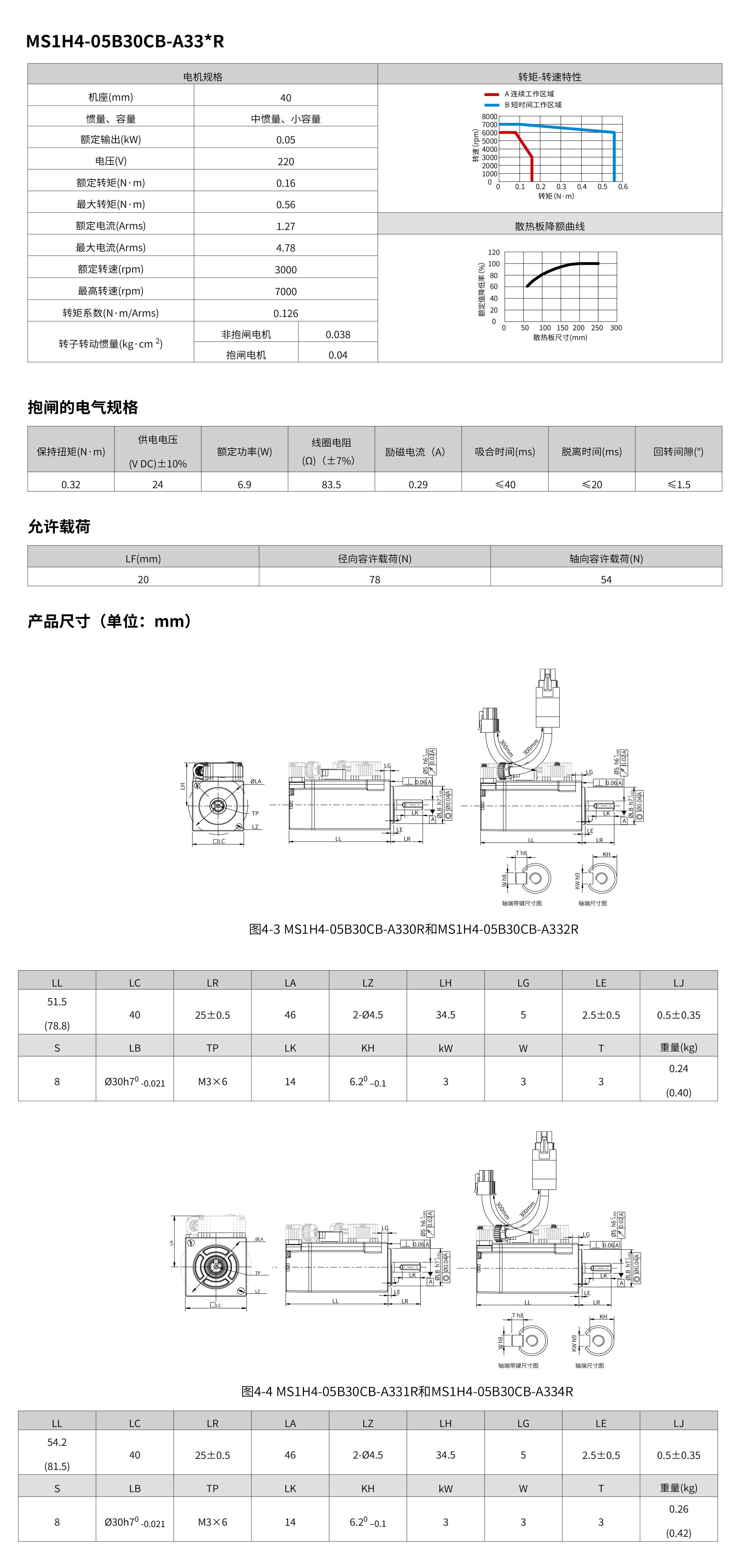

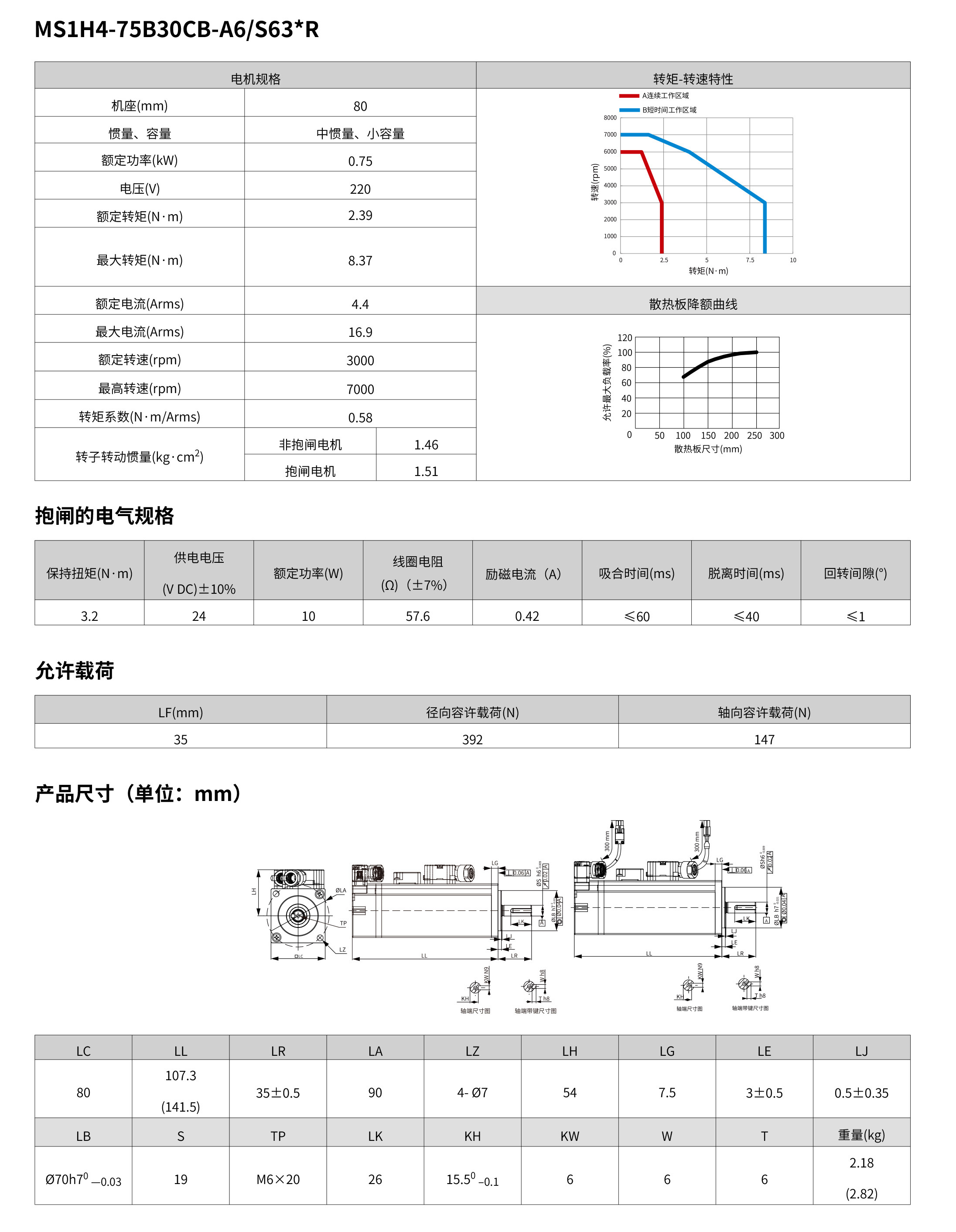

MS1H4(nN=3000rpm,nmax=7000rpm)系列额定值规格
MS1H4-05B30CB-A6/S630RMS1H4-05B30CB-A6/S632R400.05单相/三相220VAS1R600002
MS1H4-10B30CB-A6/S630RMS1H4-10B30CB-A6/S632R400.1单相/三相220VAS1R600002
MS1H4-05B30CB-A6/S631RMS1H4-05B30CB-A6/S634R400.05单相/三相220VAS1R600002
MS1H4-10B30CB-A6/S631RMS1H4-10B30CB-A6/S634R400.1单相/三相220VAS1R600002

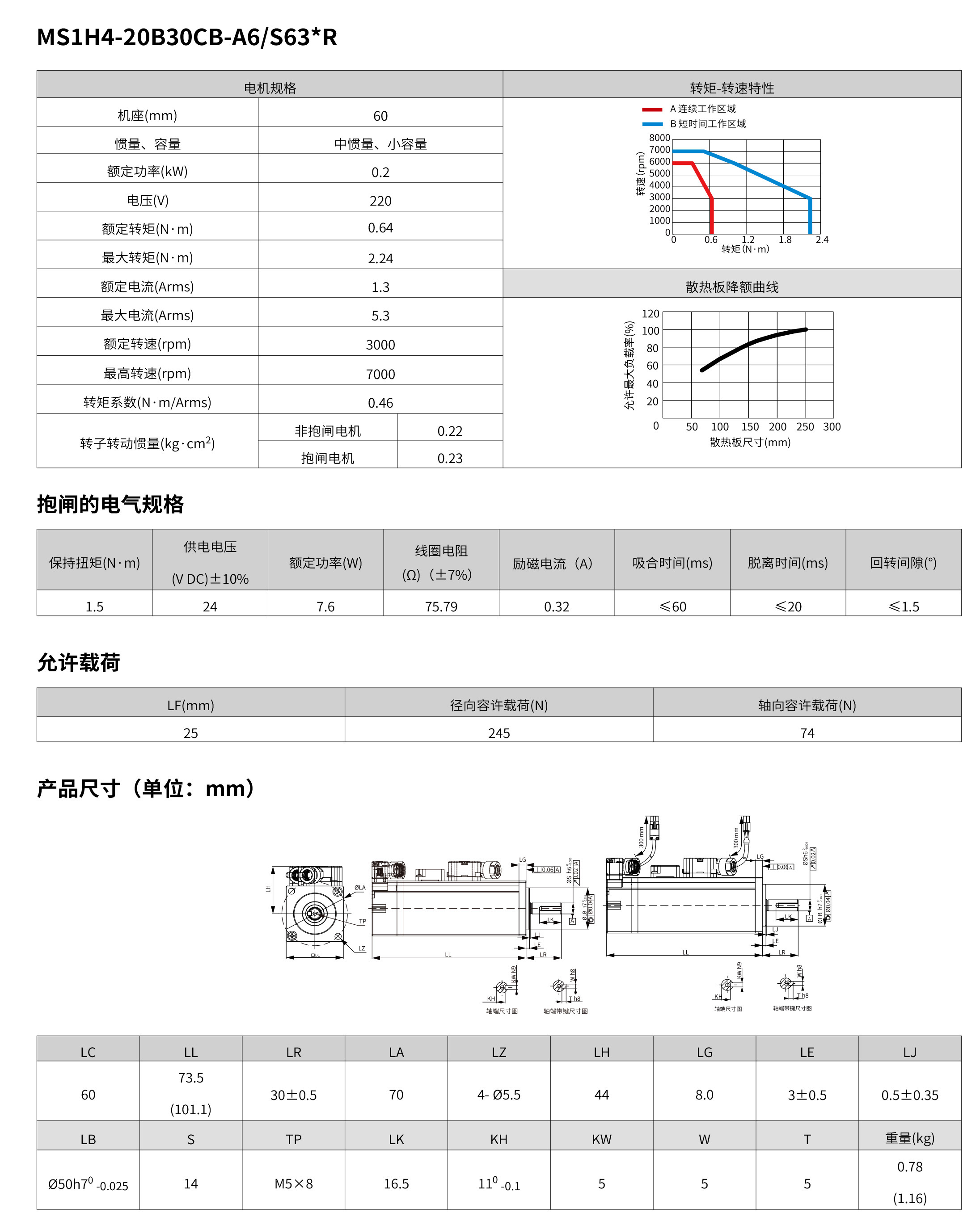

MS1H4-20B30CB-A6/S631RMS1H4-20B30CB-A6/S634R600.2单相/三相220VAS1R600002

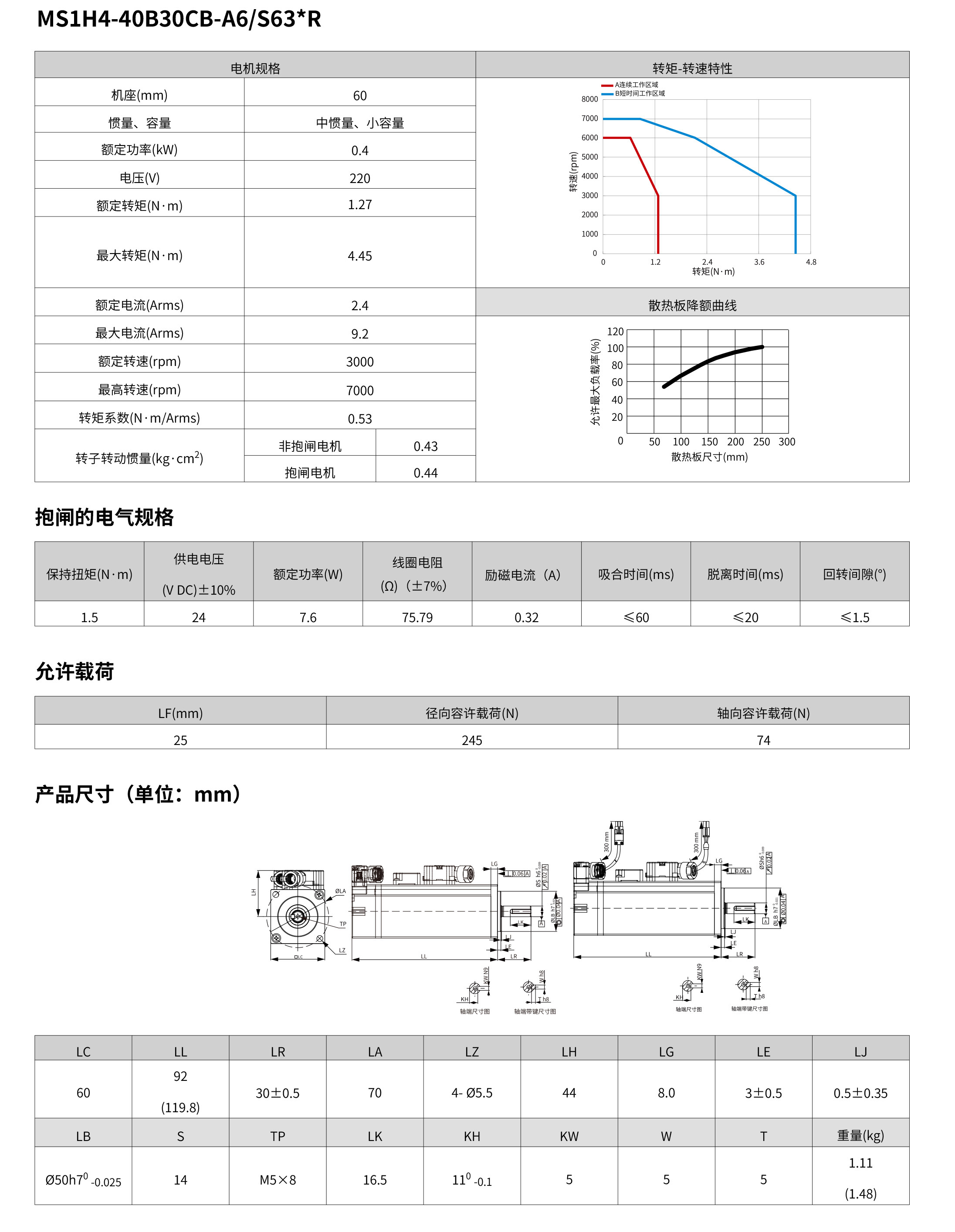

MS1H4-40B30CB-A6/S631RMS1H4-40B30CB-A6/S634R600.4单相/三相220VAS2R800003

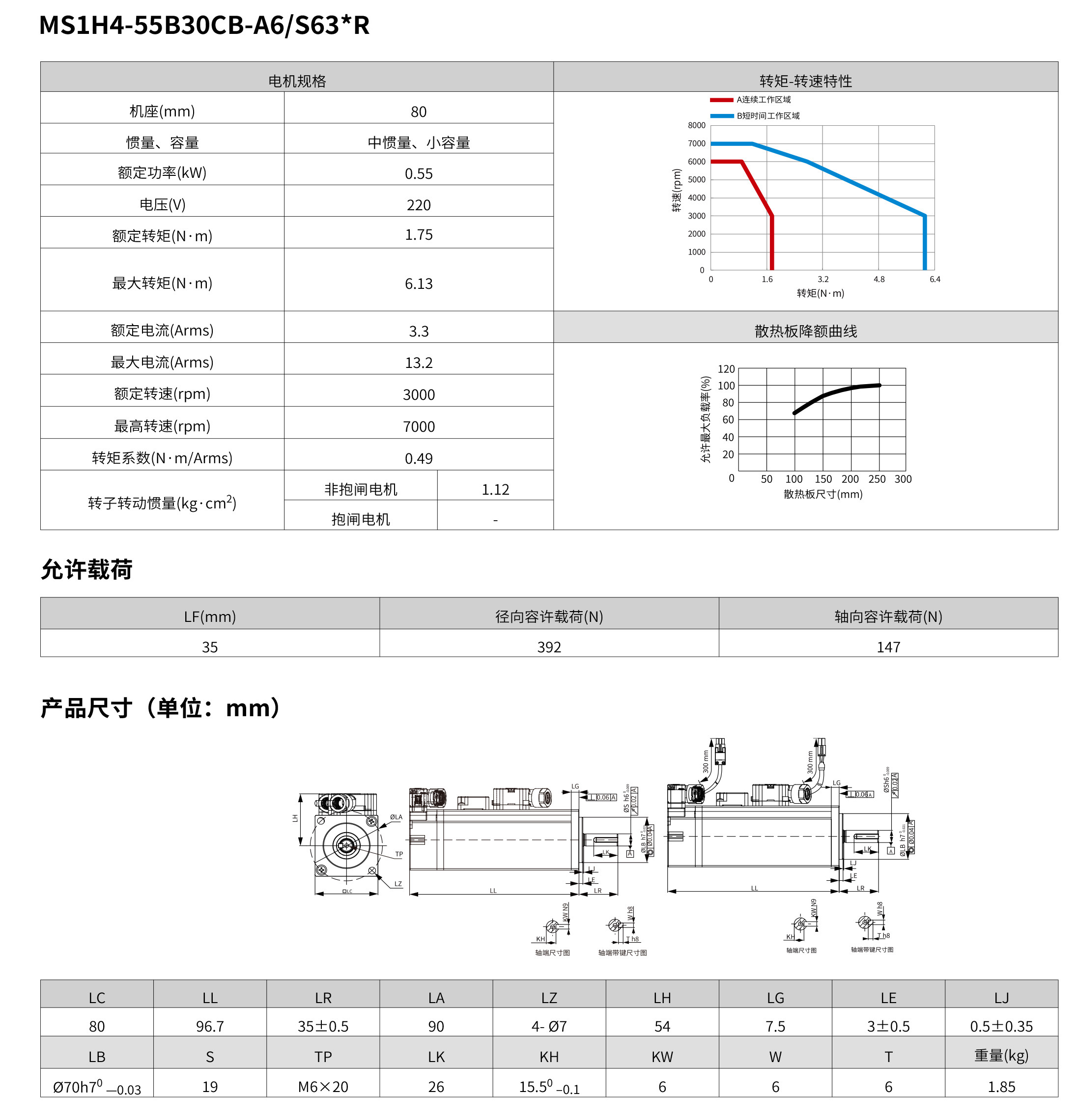

MS1H4-55B30CB-A6/S631R-800.55单相/三相220VCS5R500005
MS1H4-75B30CB-A6/S631RMS1H4-75B30CB-A6/S634R800.75单相/三相220VCS5R500005
MS1H4-10C30CB-A6/S631RMS1H4-10C30CB-A6/S634R801.0单相/三相220VCS7R600006

驱动器型号说明:

  • S-220V电压等级;

  • T-380V电压等级。

  • 1R6-额定输出电流1.6A,2R8-额定输出电流2.8A,···,026-额定输出电流26A,027-额定输出电流27A。

带23位编码器匹配驱动器

伺服电机伺服驱动器SV670******
非抱闸机型抱闸机型机座(mm)容量(kW)电压等级SIZE型号编号
MS1H1(nN=3000rpm,nmax=7000rpm)系列额定值规格
MS1H1-05B30CB-A330RMS1H1-05B30CB-A332R400.05单相/三相220VAS1R600002

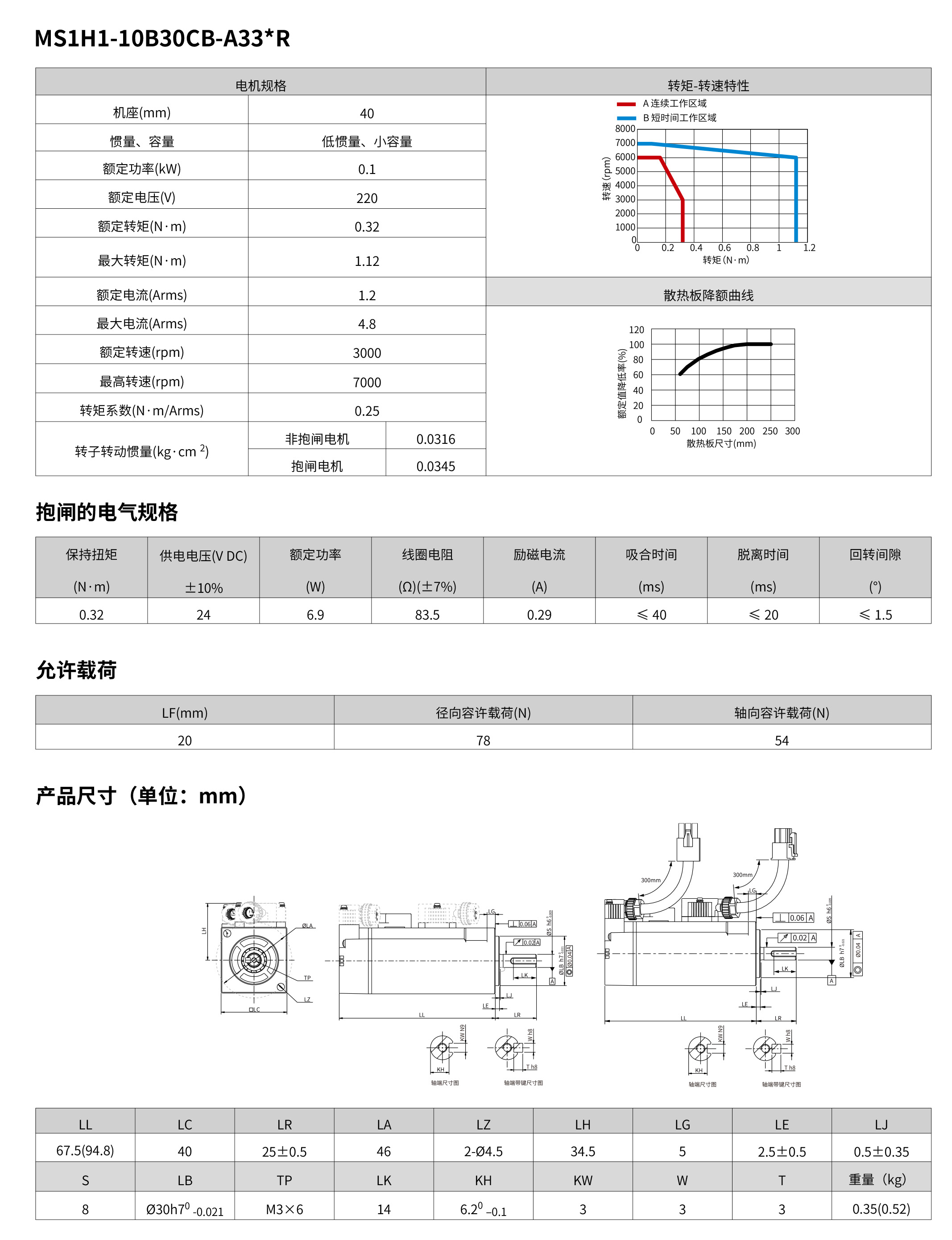

MS1H1-10B30CB-A330RMS1H1-10B30CB-A332R400.1单相/三相220VAS1R600002
MS1H1-20B30CB-A331RMS1H1-20B30CB-A334R600.2单相/三相220VAS1R600002

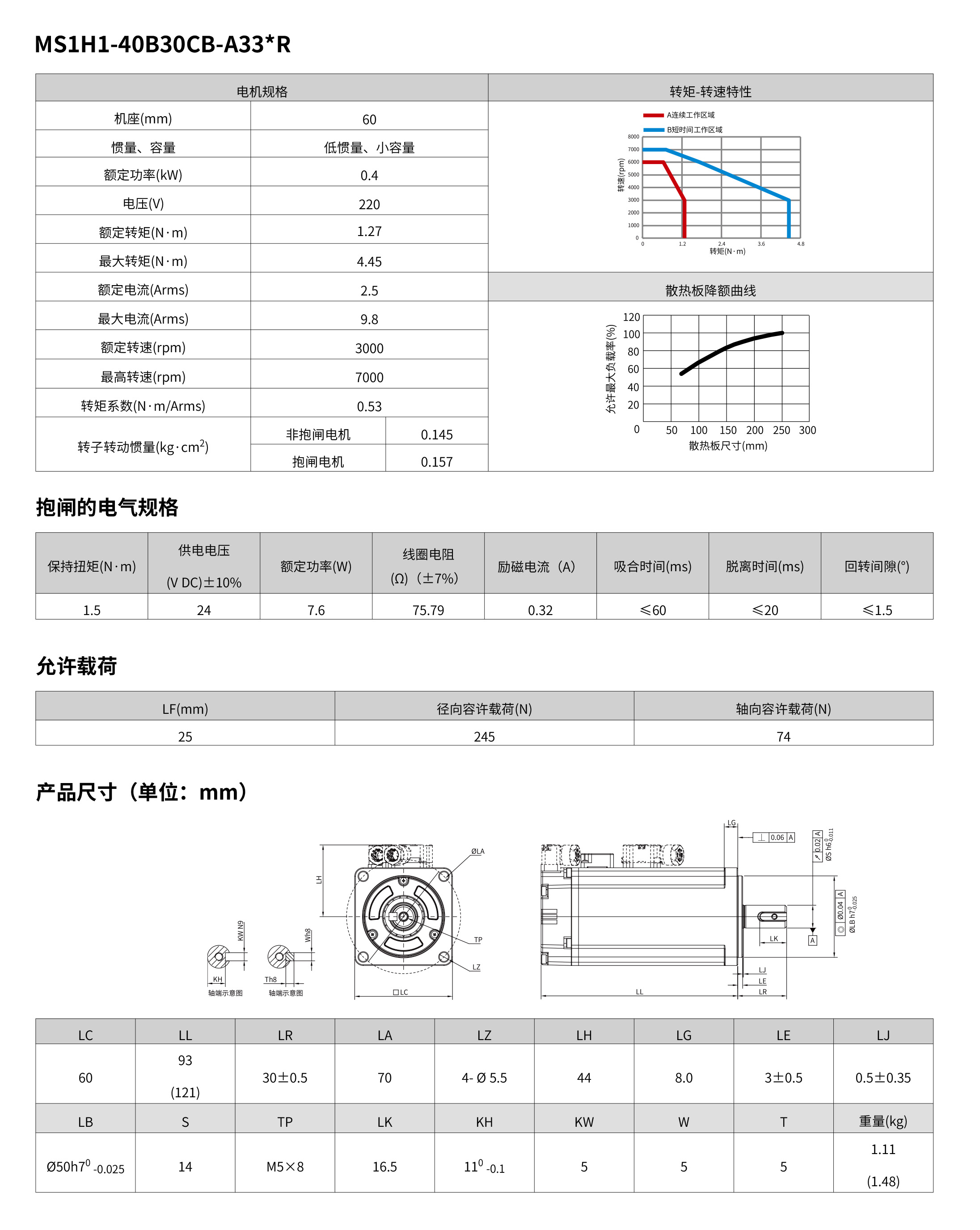

MS1H1-40B30CB-A331RMS1H1-40B30CB-A334R600.4单相/三相220VAS2R800003
MS1H1-55B30CB-A331R-800.55单相/三相220VCS5R500005

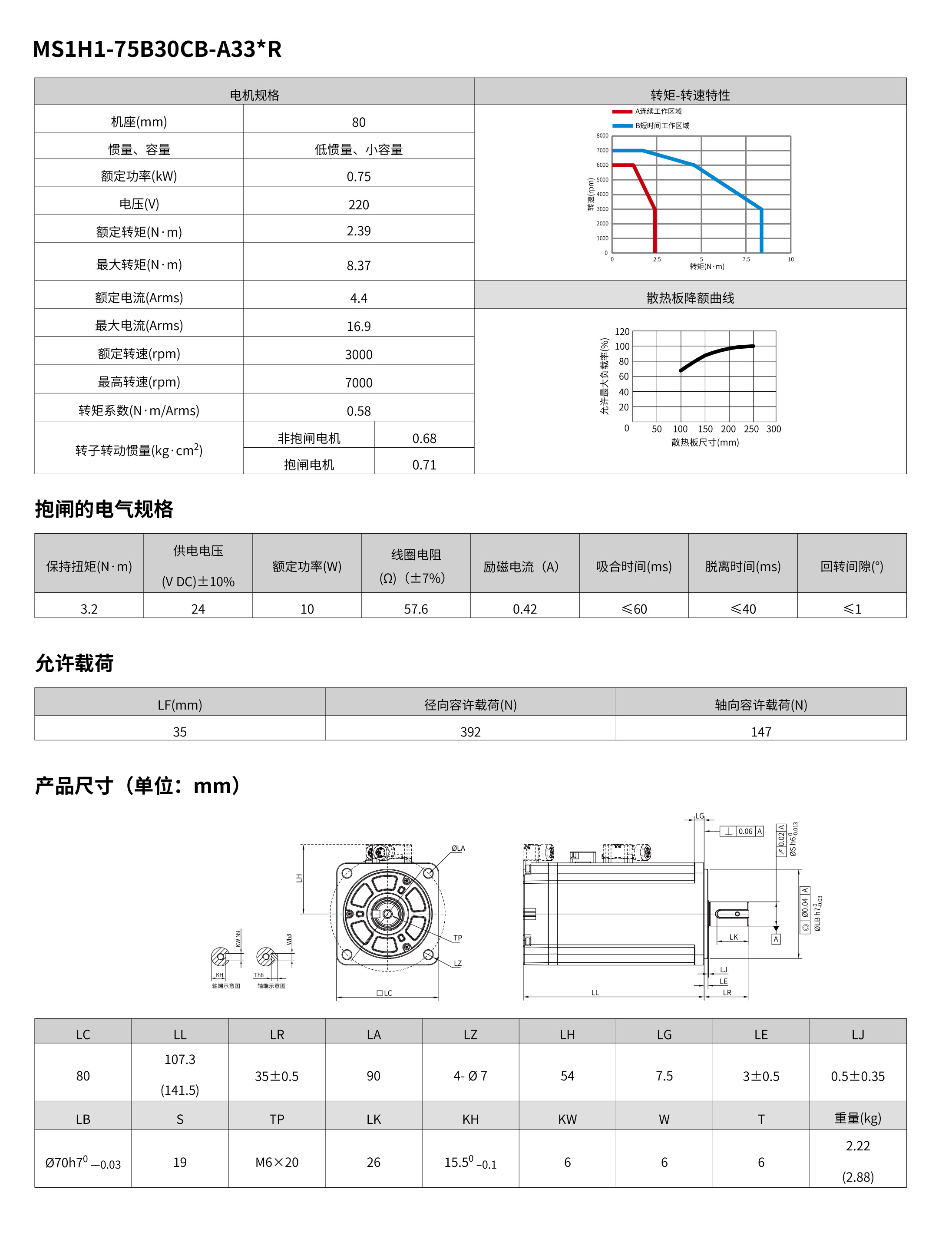

MS1H1-75B30CB-A331RMS1H1-75B30CB-A334R800.75单相/三相220VCS5R500005

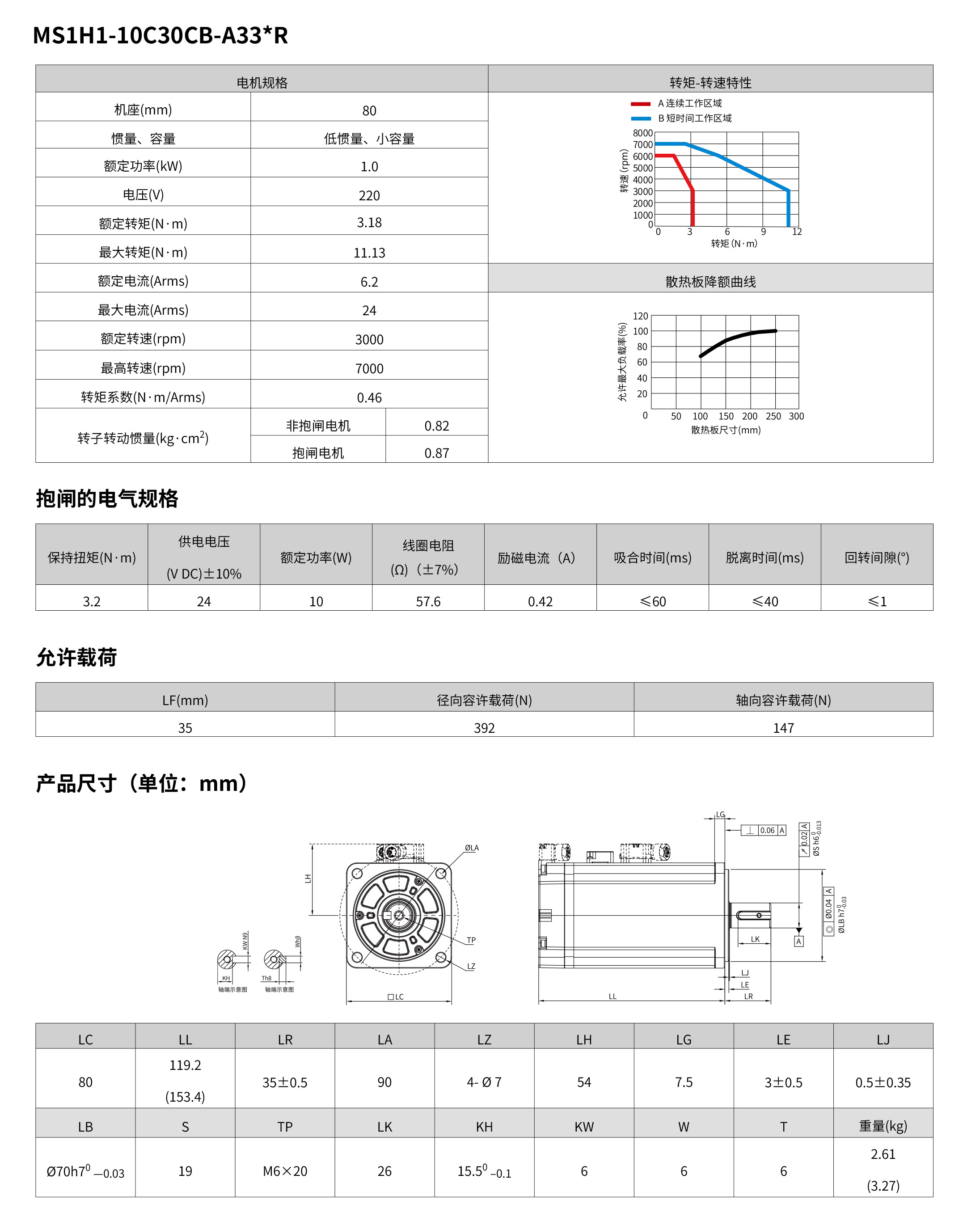

MS1H1-10C30CB-A331RMS1H1-10C30CB-A334R801.0单相/三相220VCS7R600006
MS1H2(nN=3000rpm,nmax=6000rpm)系列额定值规格
MS1H2-10C30CB-A331RMS1H2-10C30CB-A334R 1001.0单相/三相220VCS7R600006
MS1H2-10C30CD-A331RMS1H2-10C30CD-A334R 1001.0三相380VCT3R510001
MS1H2-15C30CB-A331RMS1H2-15C30CB-A334R 1001.5单相/三相220VDS01200007

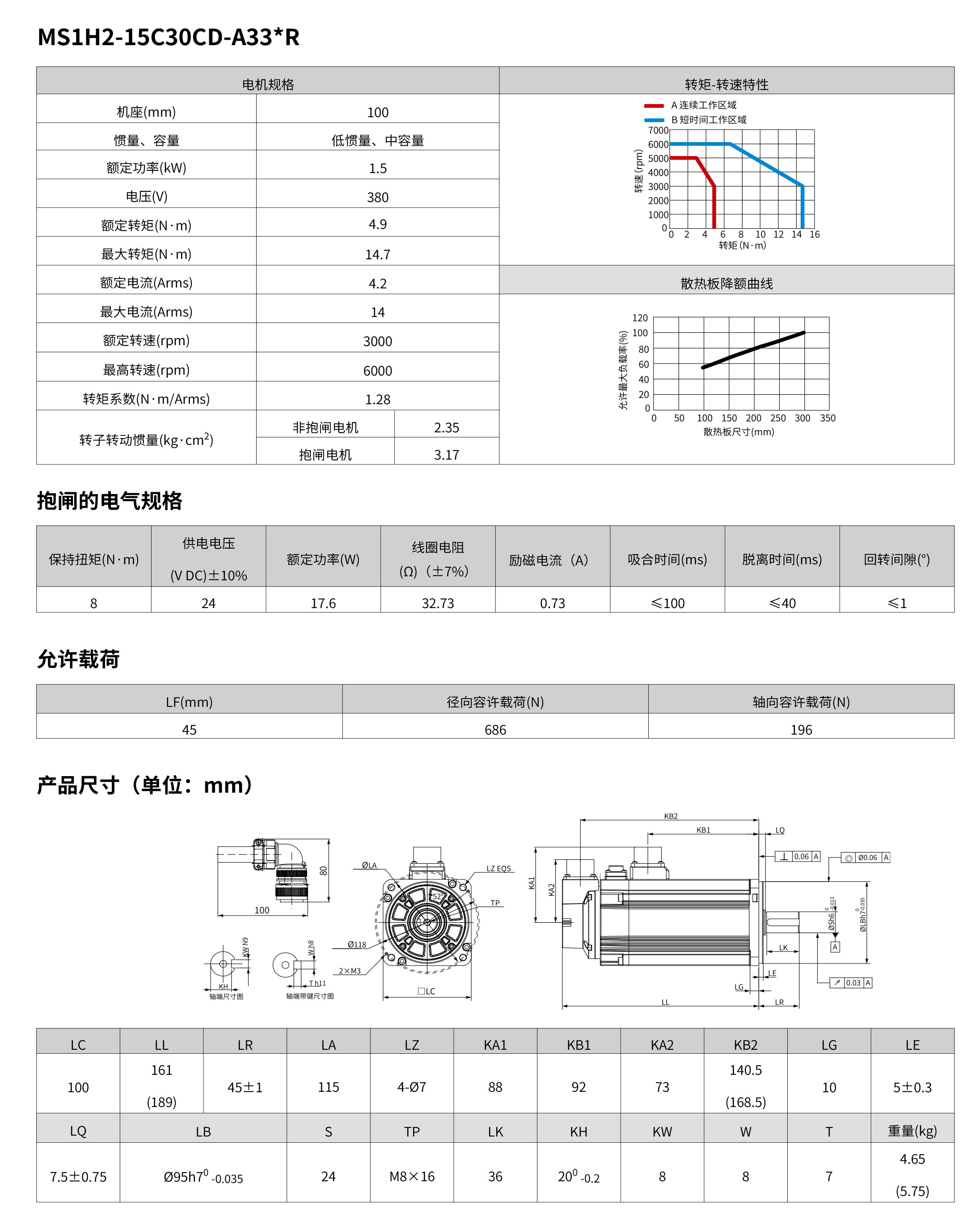

MS1H2-15C30CD-A331RMS1H2-15C30CD-A334R 1001.5三相380VCT5R410002
MS1H2-20C30CB-A331RMS1H2-20C30CB-A334R 1002.0三相220VES018[1]00008
MS1H2-20C30CD-A331RMS1H2-20C30CD-A334R 1002.0三相380VDT8R410003
MS1H2-25C30CB-A331RMS1H2-25C30CB-A334R 1002.5三相220VES02200009
MS1H2-25C30CD-A331RMS1H2-25C30CD-A334R 1002.5三相380VDT012[2]10004

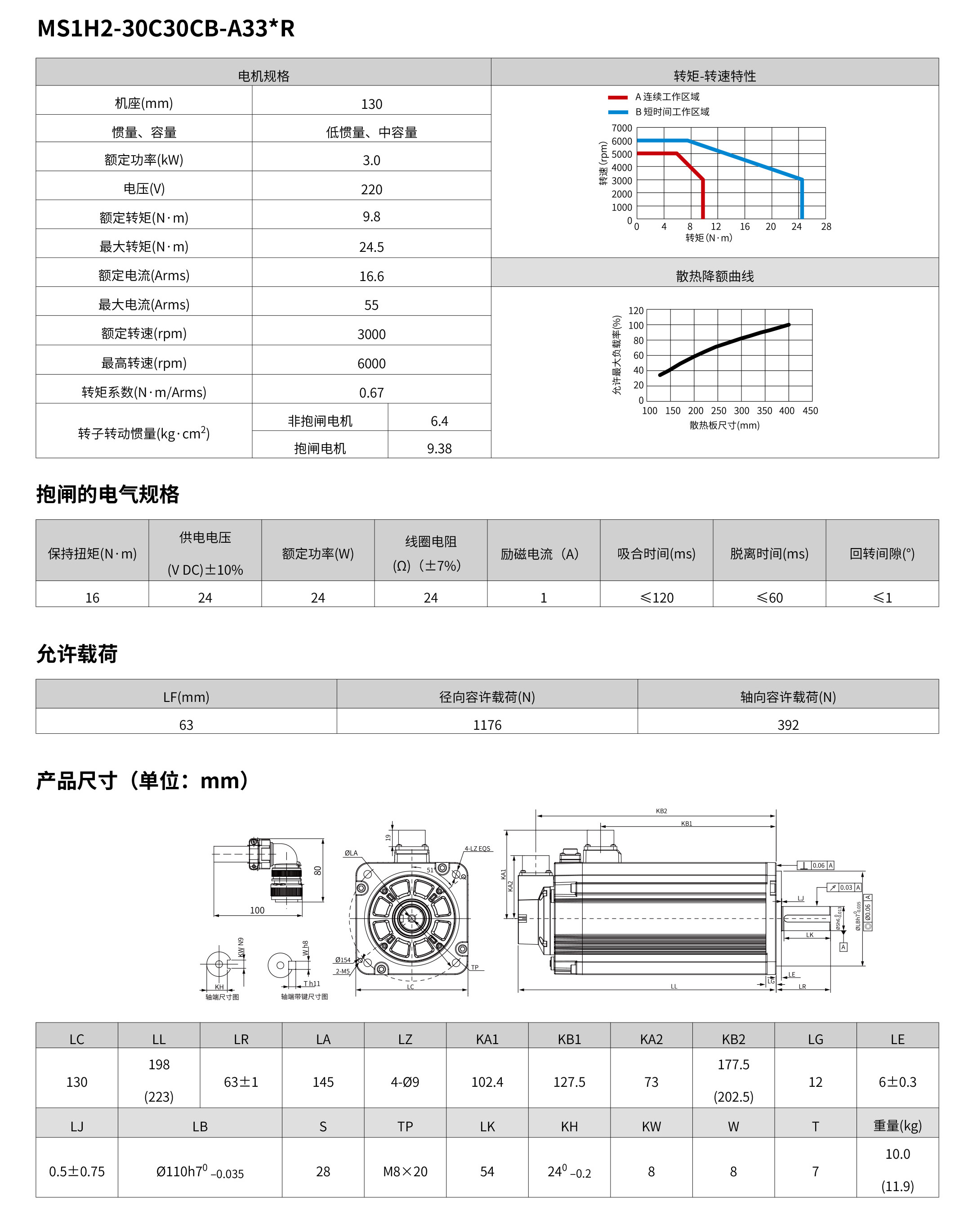

MS1H2-30C30CB-A331RMS1H2-30C30CB-A334R 1303.0三相220VES02200009
MS1H2-30C30CD-A331RMS1H2-30C30CD-A334R 1303.0三相380VDT01210004

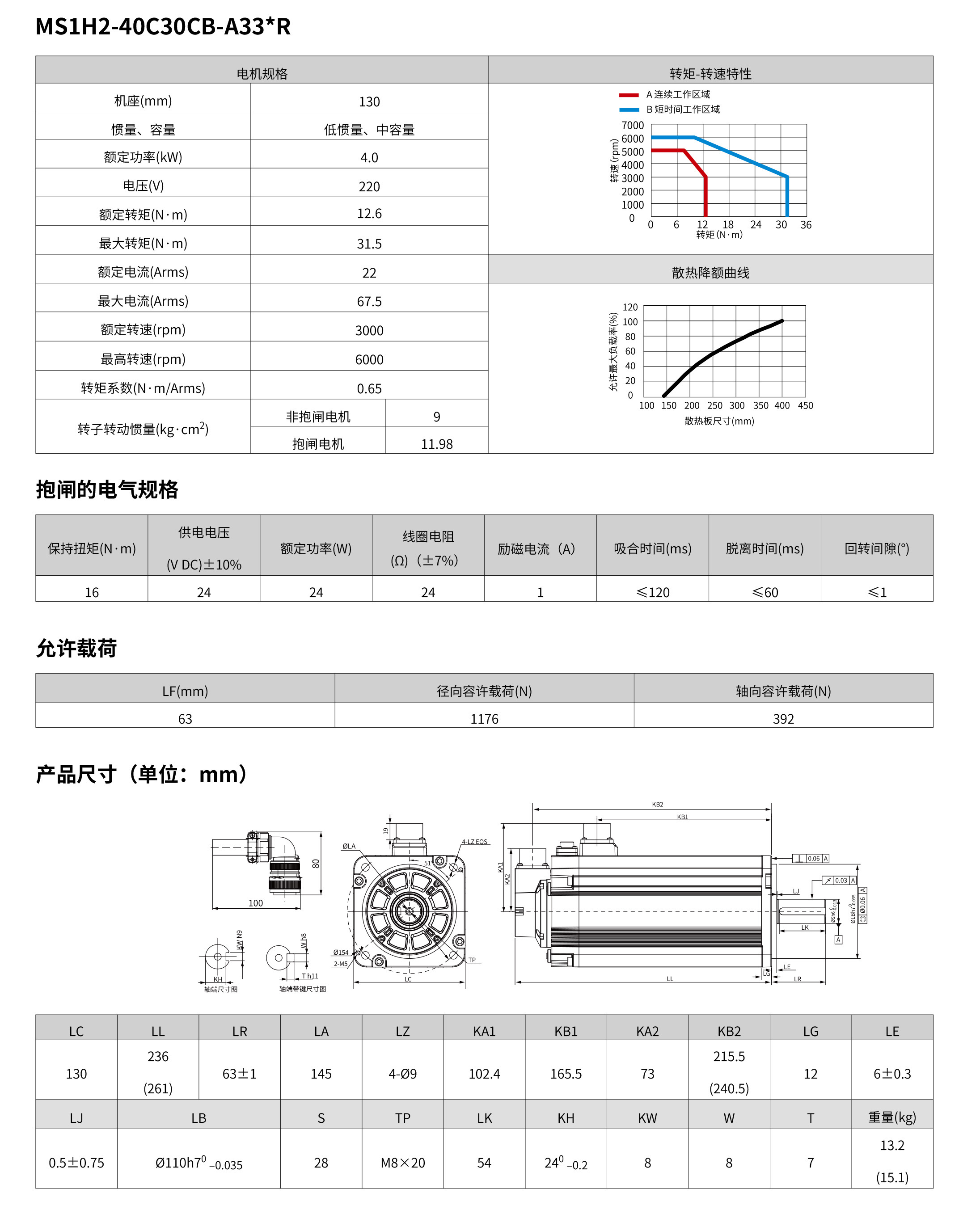

MS1H2-40C30CB-A331RMS1H2-40C30CB-A334R 1304.0三相220VES02700010
MS1H2-40C30CD-A331RMS1H2-40C30CD-A334R 1304.0三相380VET01710005
MS1H2-50C30CB-A331RMS1H2-50C30CB-A334R 1305.0三相220VES02700010
MS1H2-50C30CD-A331RMS1H2-50C30CD-A334R 1305.0三相380VET021[3]10006
MS1H3(nN=1500rpm,nmax=4500rpm)系列额定值规格
MS1H3-85B15CB-A331R MS1H3-85B15CB-A334R1300.85单相/三相220VCS7R600006
MS1H3-85B15CD-A331R MS1H3-85B15CD-A334R1300.85三相380VCT3R510001
MS1H3-13C15CB-A331R MS1H3-13C15CB-A334R1301.3单相/三相220VDS01200007
MS1H3-13C15CD-A331R MS1H3-13C15CD-A334R1301.3三相380VCT5R410002
MS1H3-18C15CB-A331R MS1H3-18C15CB-A334R1301.8三相220VDS01200007
MS1H3-18C15CD-A331R MS1H3-18C15CD-A334R1301.8三相380VDT8R410003
MS1H3-29C15CB-A331R MS1H3-29C15CB-A334R1802.9三相220VES02200009
MS1H3-29C15CD-A331R MS1H3-29C15CD-A334R1802.9三相380VDT01210004
MS1H3-44C15CB-A331R MS1H3-44C15CB-A334R1804.4三相220VES02700010
MS1H3-44C15CD-A331R MS1H3-44C15CD-A334R1804.4三相380VET01710005
MS1H3-55C15CD-A331R MS1H3-55C15CD-A334R1805.5三相380VET02110006
MS1H3-75C15CD-A331R MS1H3-75C15CD-A334R1807.5三相380VET02610007
MS1H4(nN=3000rpm,nmax=7000rpm)系列额定值规格
MS1H4-05B30CB-A330R MS1H4-05B30CB-A332R400.05单相/三相220VAS1R600002

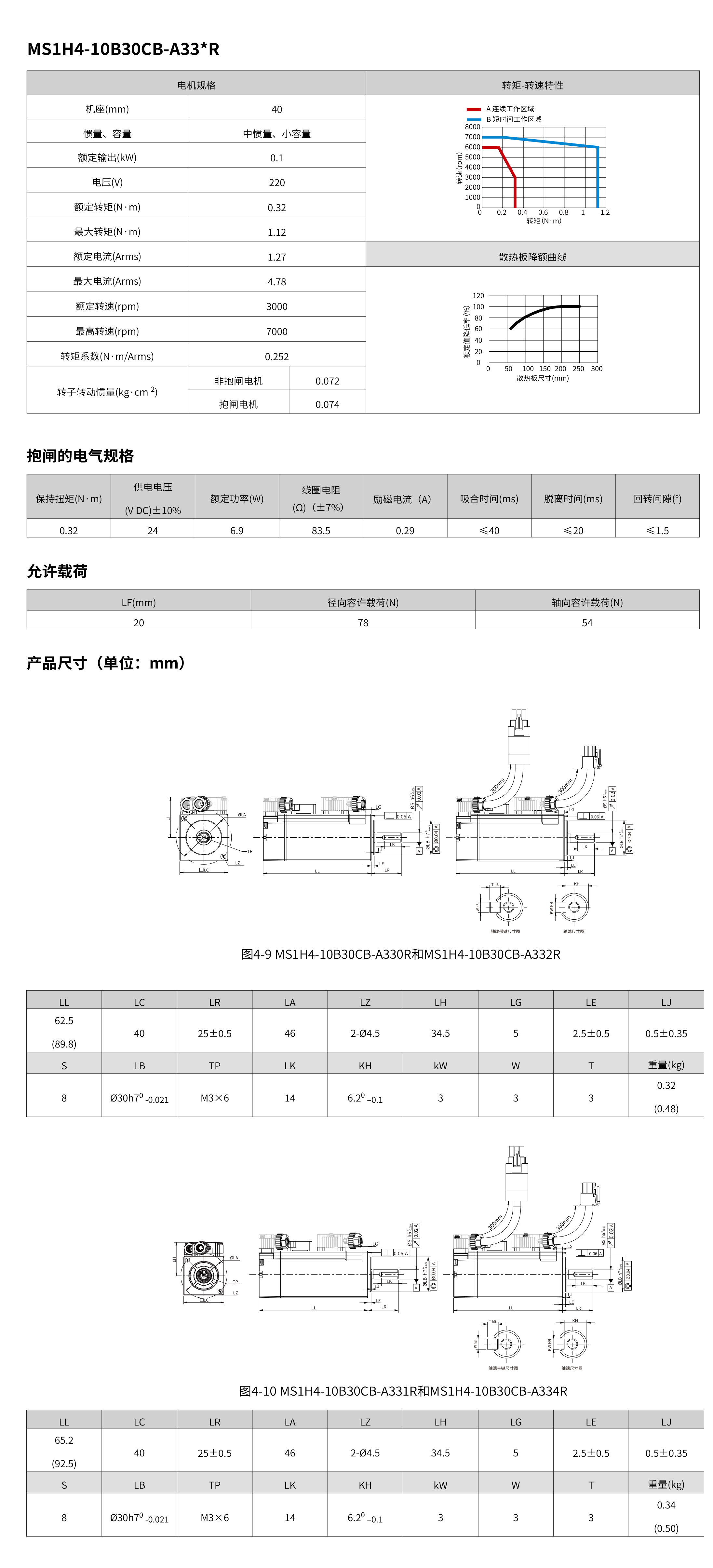

MS1H4-10B30CB-A330R MS1H4-10B30CB-A332R400.1单相/三相220VAS1R600002
MS1H4-05B30CB-A331R MS1H4-05B30CB-A334R400.05单相/三相220VAS1R600002
MS1H4-10B30CB-A331R MS1H4-10B30CB-A334R400.1单相/三相220VAS1R600002
MS1H4-20B30CB-A331R MS1H4-20B30CB-A334R600.2单相/三相220VAS1R600002
MS1H4-40B30CB-A331R MS1H4-40B30CB-A334R600.4单相/三相220VAS2R800003

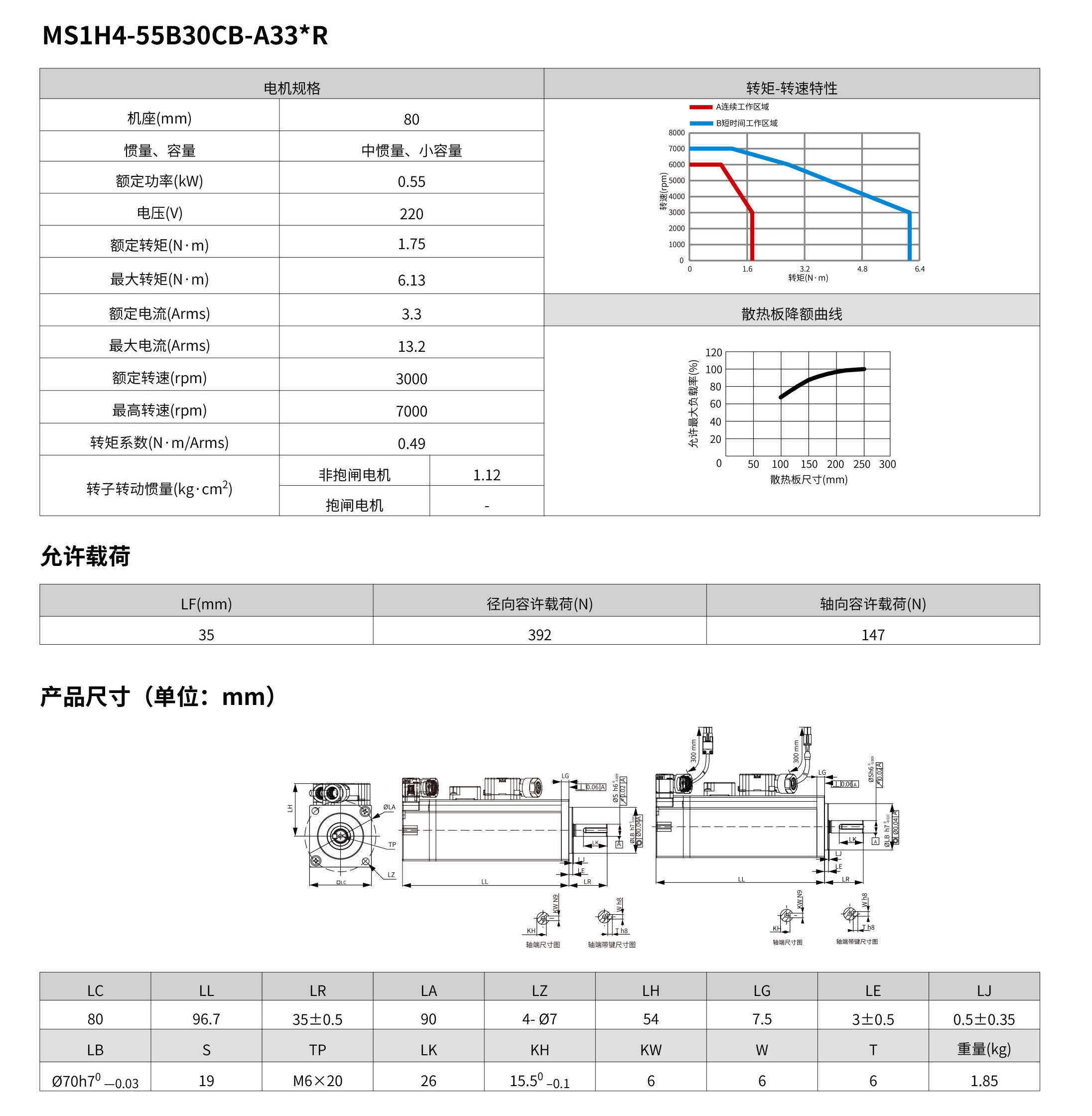

MS1H4-55B30CB-A331R -800.55单相/三相220VCS5R500005
MS1H4-75B30CB-A331R MS1H4-75B30CB-A334R800.75单相/三相220VCS5R500005

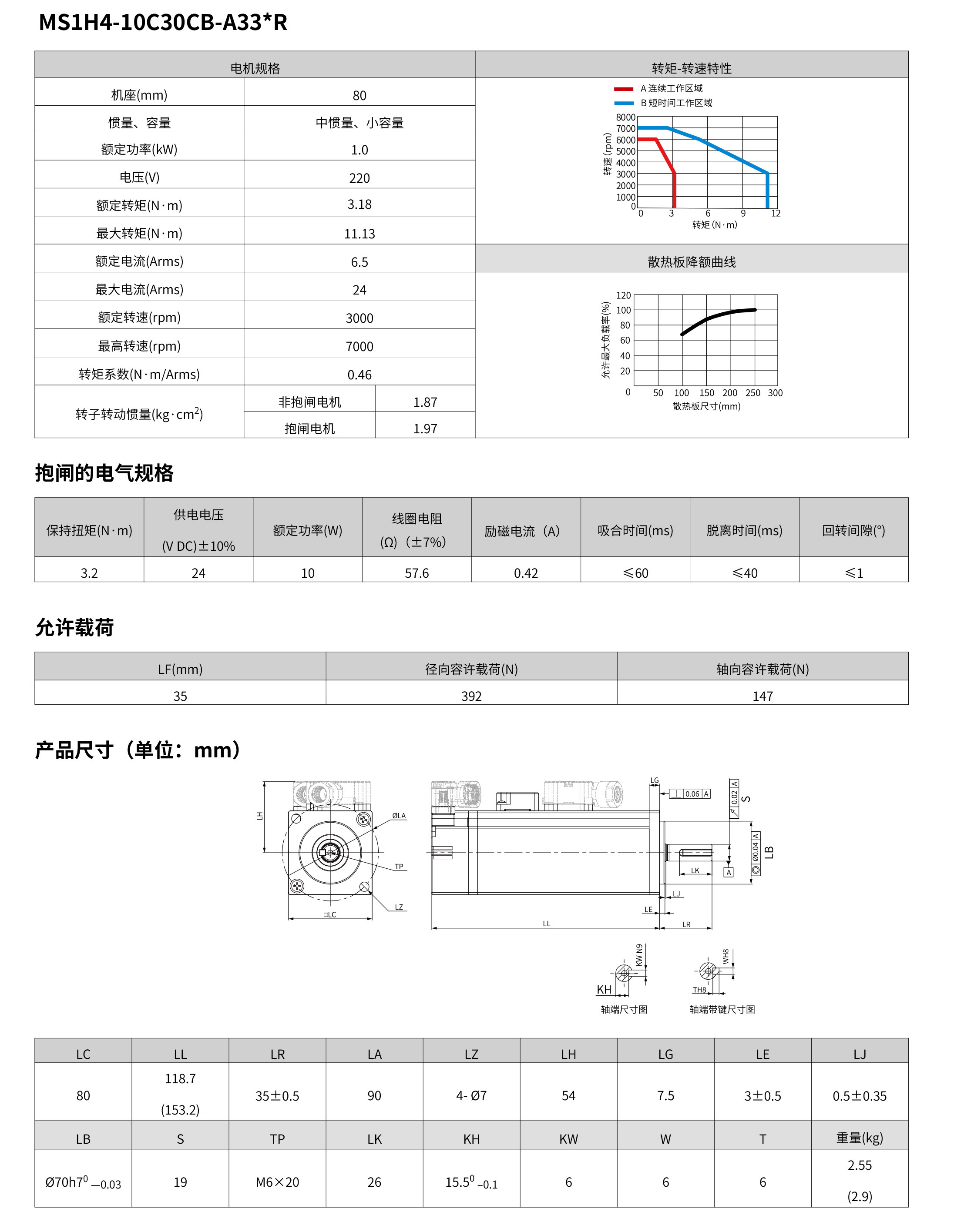

MS1H4-10C30CB-A331R MS1H4-10C30CB-A334R801.0单相/三相220VCS7R600006

说明

  • [1]带S012驱动器请参考该型号的转矩-转速特性曲线。

  • [2]带T8R4驱动器请参考该型号的转矩-转速特性曲线。

  • [3]带T017驱动器请参考该型号的转矩-转速特性曲线。

带23位编码器匹配驱动器

伺服电机伺服驱动器 SV660******
非抱闸机型抱闸机型机座
 (mm)
容量
 (kW)
电压等级SIZE型号编号
MS1H1(nN=3000rpm,nmax=7000rpm)系列额定值规格
MS1H1-05B30CB-A330RMS1H1-05B30CB-A332R400.05单相220VAS1R600002
MS1H1-10B30CB-A330RMS1H1-10B30CB-A332R400.1单相220VAS1R600002
MS1H1-20B30CB-A331RMS1H1-20B30CB-A334R600.2单相220VAS1R600002
MS1H1-40B30CB-A331RMS1H1-40B30CB-A334R600.4单相220VAS2R800003
MS1H1-55B30CB-A331R-800.55单相220VBS5R500005
MS1H1-75B30CB-A331RMS1H1-75B30CB-A334R800.75单相220VBS5R500005
MS1H1-10C30CB-A331RMS1H1-10C30CB-A334R801.0单相/三相220VCS7R600006
MS1H2(nN=3000rpm,nmax=6000rpm)系列额定值规格
MS1H2-10C30CB-A331R MS1H2-10C30CB-A334R1001.0单相/三相220VCS7R600006
MS1H2-10C30CD-A331R MS1H2-10C30CD-A334R1001.0三相380VCT3R510001
MS1H2-15C30CB-A331R MS1H2-15C30CB-A334R1001.5单相/三相220VDS01200007
MS1H2-15C30CD-A331R MS1H2-15C30CD-A334R1001.5三相380VCT5R410002
MS1H2-20C30CB-A331R MS1H2-20C30CB-A334R1002.0单相/三相220VDS01200007
MS1H2-20C30CD-A331R MS1H2-20C30CD-A334R1002.0三相380VDT8R410003
MS1H2-25C30CD-A331R MS1H2-25C30CD-A334R1002.5三相380VDT012[1]10004
MS1H2-30C30CD-A331R MS1H2-30C30CD-A334R1303.0三相380VDT01210004
MS1H2-40C30CD-A331R MS1H2-40C30CD-A334R1304.0三相380VET01710005
MS1H2-50C30CD-A331R MS1H2-50C30CD-A334R1305.0三相380VET021[2]10006
MS1H3(nN=1500rpm,nmax=4500rpm)系列额定值规格
MS1H3-85B15CB-A33*R MS1H3-85B15CB-A334R1300.85单相/三相220VCS7R600006
MS1H3-85B15CD-A331R MS1H3-85B15CD-A334R1300.85三相380VCT3R510001
MS1H3-13C15CB-A331R MS1H3-13C15CB-A334R1301.3单相/三相220VDS01200007
MS1H3-13C15CD-A331R MS1H3-13C15CD-A334R1301.3三相380VCT5R410002
MS1H3-18C15CB-A331R MS1H3-18C15CB-A334R1301.8单相/三相220VDS01200007
MS1H3-18C15CD-A331R MS1H3-18C15CD-A334R1301.8三相380VDT8R410003
MS1H3-29C15CD-A331R MS1H3-29C15CD-A334R1802.9三相380VDT01210004
MS1H3-44C15CD-A331R MS1H3-44C15CD-A334R1804.4三相380VET01710005
MS1H3-55C15CD-A331R MS1H3-55C15CD-A334R1805.5三相380VET02110006
MS1H3-75C15CD-A331R MS1H3-75C15CD-A334R1807.5三相380VET02610007
MS1H4(nN=3000rpm,nmax=7000rpm)系列额定值规格
MS1H4-05B30CB-A330R MS1H4-05B30CB-A332R400.05单相220VAS1R600002
MS1H4-10B30CB-A330R MS1H4-10B30CB-A332R400.1单相220VAS1R600002
MS1H4-05B30CB-A331R MS1H4-05B30CB-A334R400.05单相220VAS1R600002
MS1H4-10B30CB-A331R MS1H4-10B30CB-A334R400.1单相220VAS1R600002
MS1H4-20B30CB-A331R MS1H4-20B30CB-A334R 600.2单相220VAS1R600002
MS1H4-40B30CB-A331R MS1H4-40B30CB-A334R600.4单相220VAS2R800003
MS1H4-55B30CB-A331R -800.55单相220VBS5R500005
MS1H4-75B30CB-A331R MS1H4-75B30CB-A334R800.75单相220VBS5R500005
MS1H4-10C30CB-A331R MS1H4-10C30CB-A334R801.0单相/三相220VBS7R600006

说明

  • [1]带T8R4驱动器请参考该型号的转矩-转速特性曲线。

  • [2]带T017驱动器请参考该型号的转矩-转速特性曲线。

带18位编码器匹配驱动器

伺服电机伺服驱动
非抱闸机型抱闸机型机座号(mm)容量(kW)电压等级SIZE型号编号

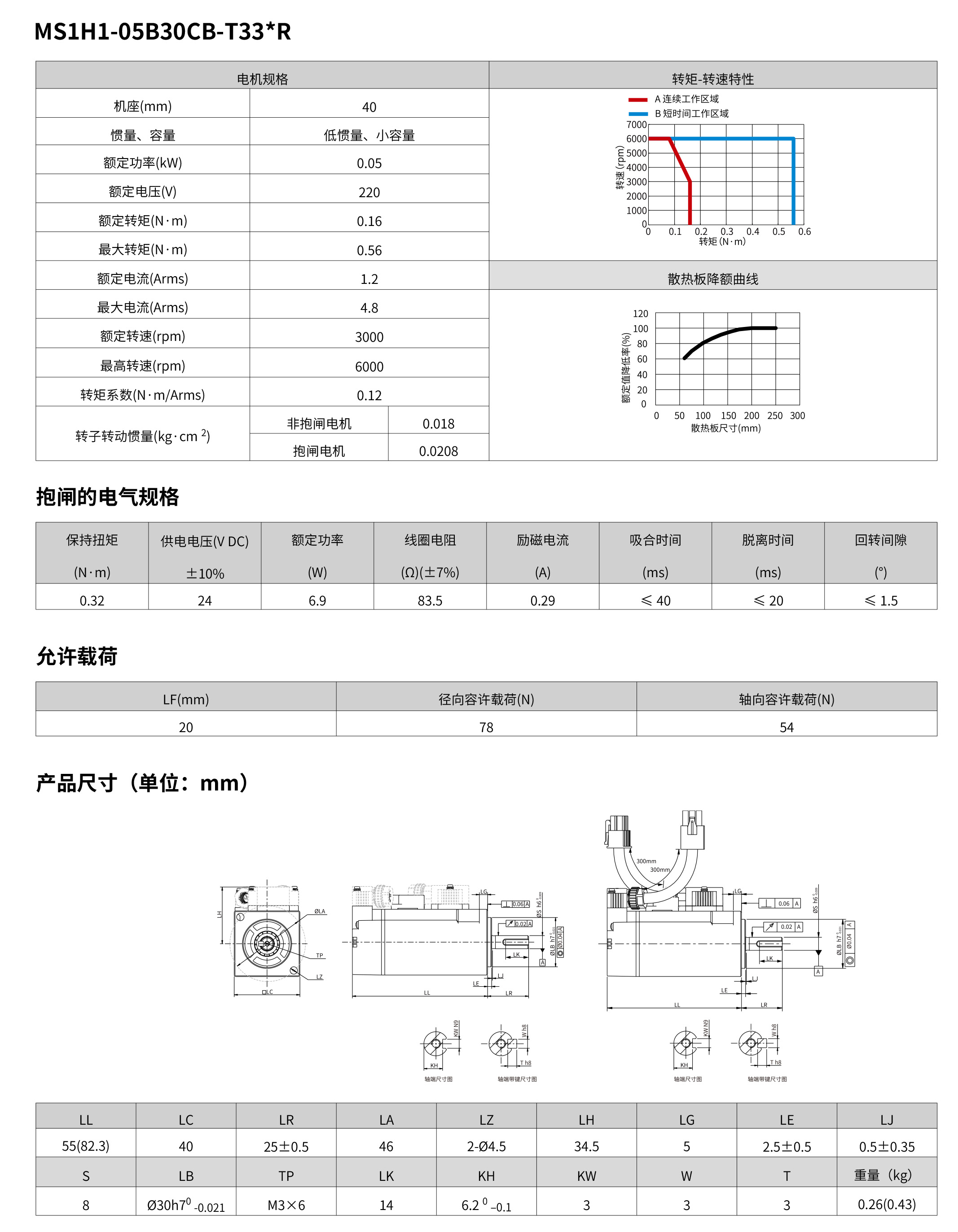

MS1H1(nN=3000rpm,nmax=6000rpm)系列额定值规格
MS1H1-05B30CB-T330RMS1H1-05B30CB-T332R400.05单相220VAS1R600002

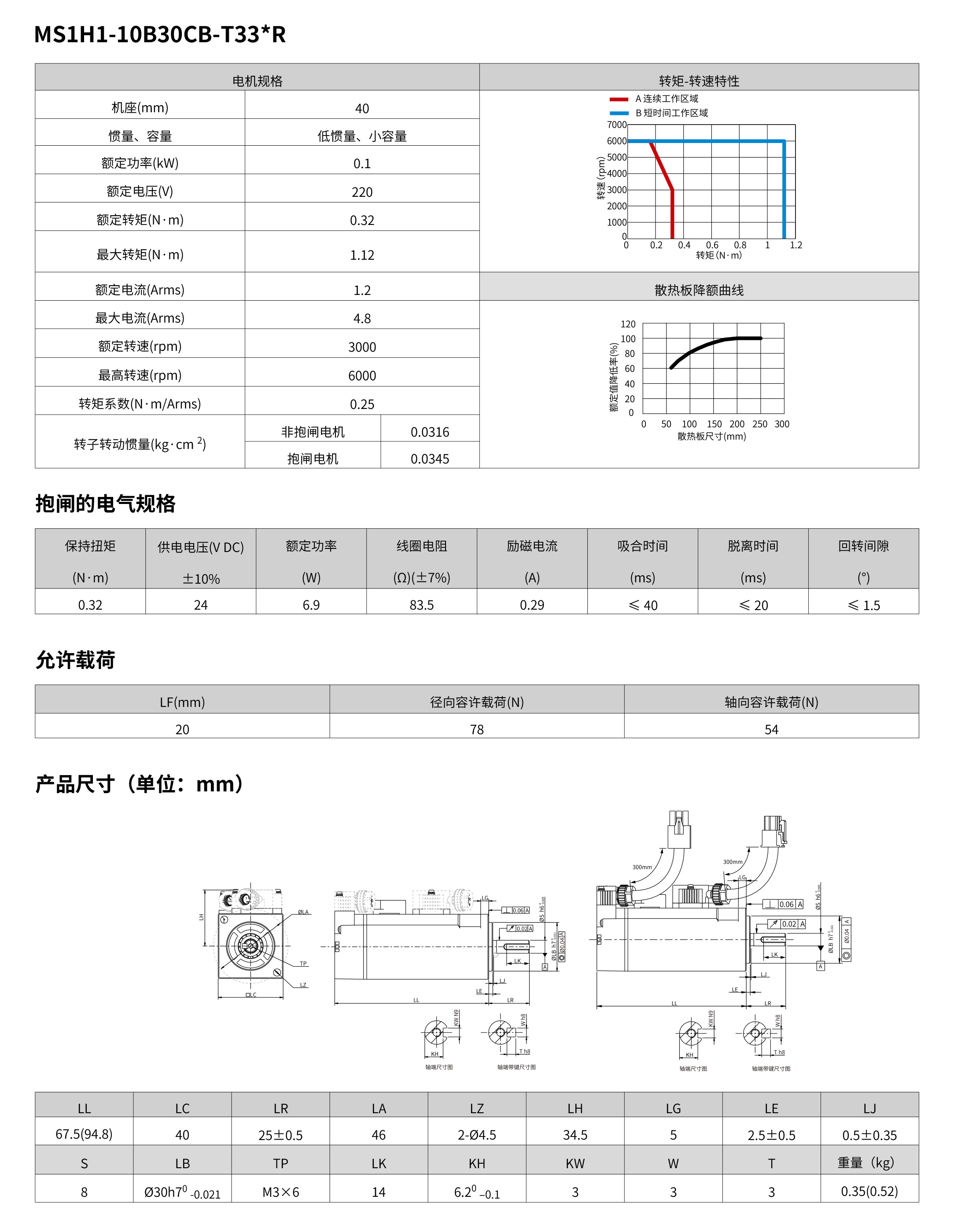

MS1H1-10B30CB-T330RMS1H1-10B30CB-T332R400.1单相220VAS1R600002
MS1H2(nN    =3000rpm, nmax =6000rpm/5000rpm)系列额定值规格

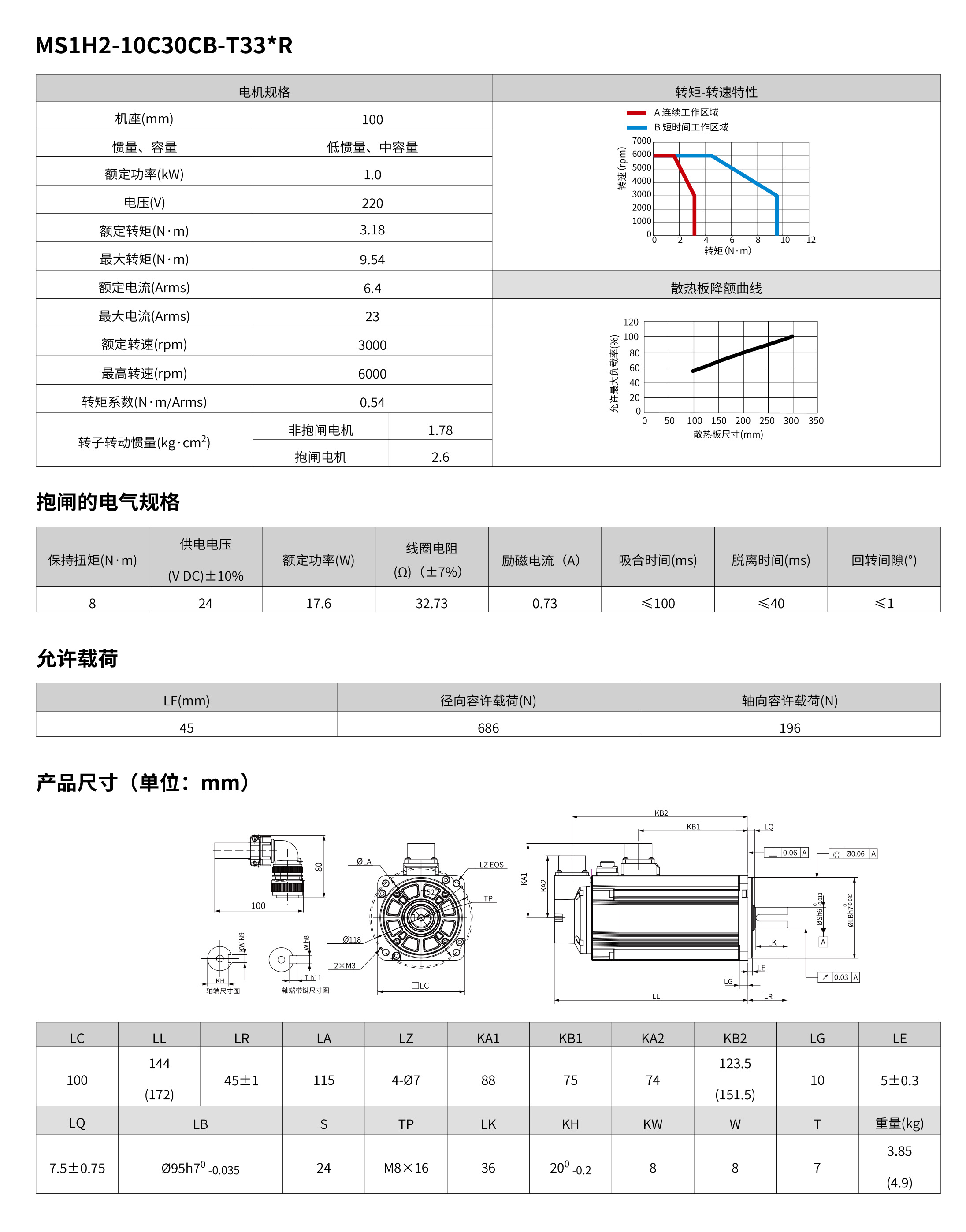

MS1H2-10C30CB-T331RMS1H2-10C30CB-T334R1001单相/三相220VCS7R600006
MS1H2-10C30CD-T331R MS1H2-10C30CD-T334R1001三相380VCT3R510001
MS1H2-15C30CB-T331R MS1H2-15C30CB-T334R1001.5单相/三相220VDS01200007

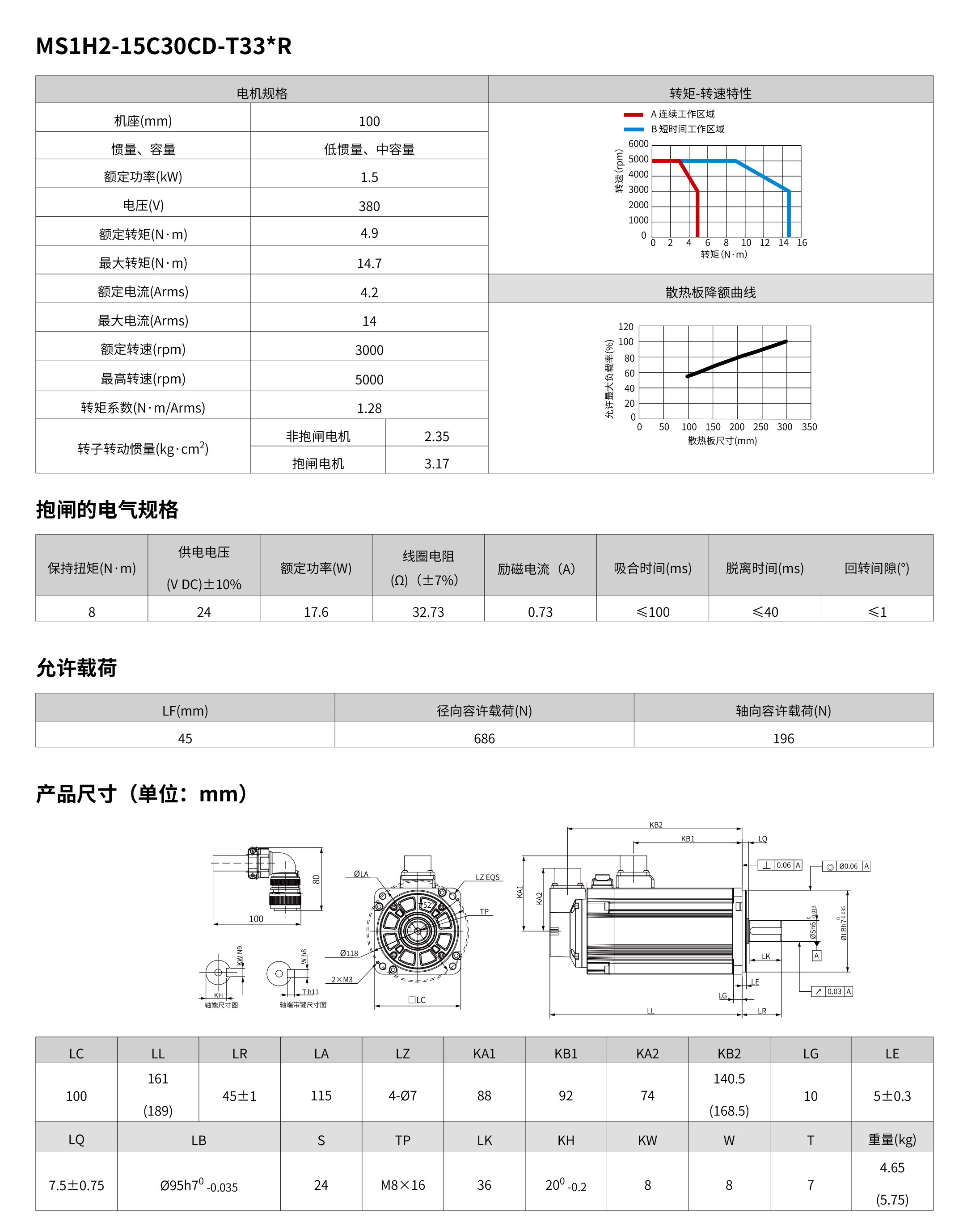

MS1H2-15C30CD-T331R MS1H2-15C30CD-T334R1001.5三相380VCT5R410002
MS1H2-20C30CB-T331R MS1H2-20C30CB-T334R1002单相/三相220VDS01200007
MS1H2-20C30CD-T331R MS1H2-20C30CD-T334R1002三相380VDT8R410003
MS1H2-25C30CD-T331R MS1H2-25C30CD-T334R1002.5三相380VDT012[1]10004
MS1H2-30C30CD-T331R MS1H2-30C30CD-T334R1303三相380VDT01210004

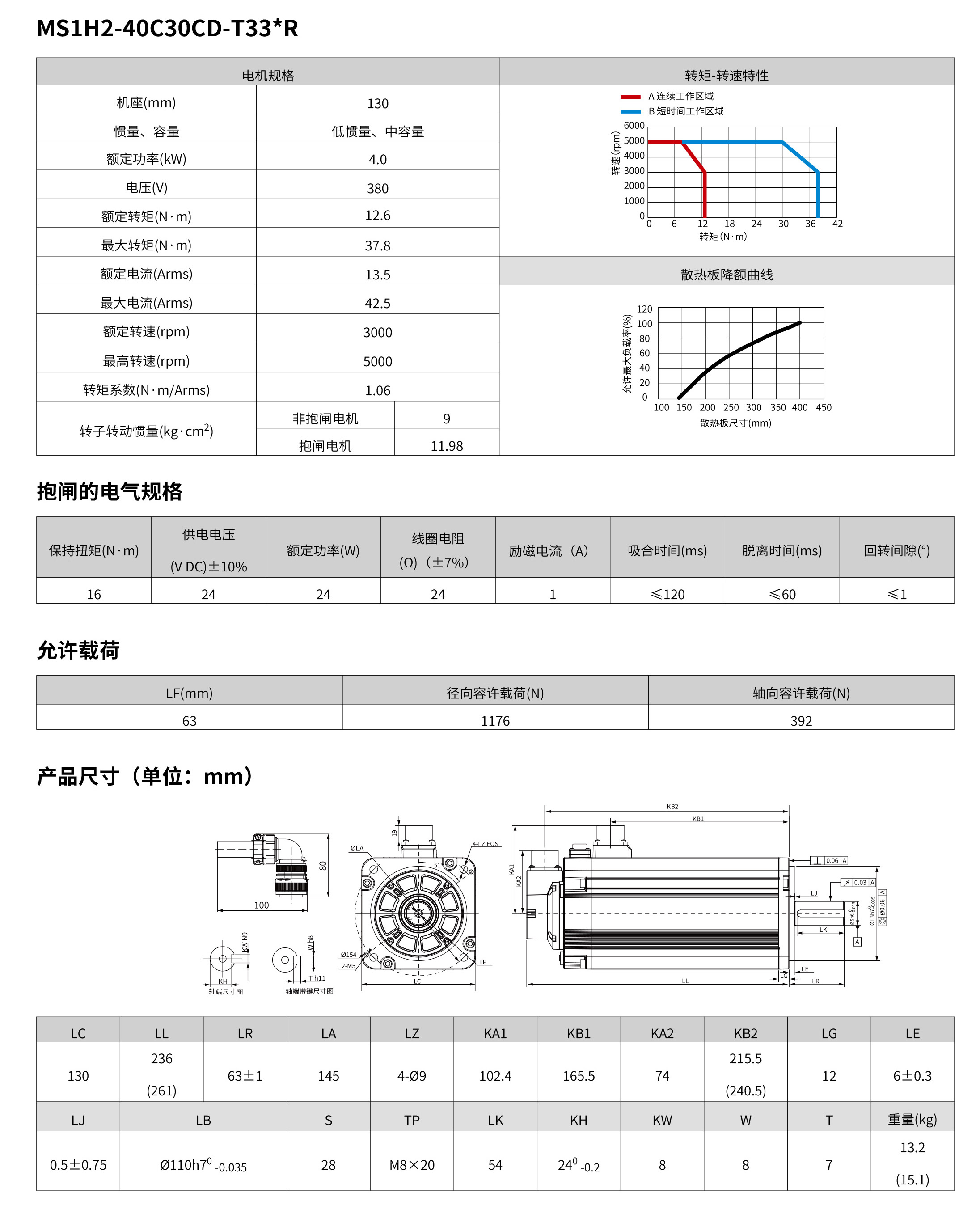

MS1H2-40C30CD-T331R MS1H2-40C30CD-T334R1304三相380V EET01710005
MS1H2-50C30CD-T331R MS1H2-50C30CD-T334R1305三相380VET021[2]10006
MS1H3(nN=1500rpm,nmax=3000rpm)系列额定值规格
MS1H3-85B15CB-T331R MS1H3-85B15CB-T334R1300.85单相/三相220VCS7R600006
MS1H3-85B15CD-T331R MS1H3-85B15CD-T334R1300.85三相380VCT3R510001
MS1H3-13C15CB-T331R MS1H3-13C15CB-T334R1301.3单相/三相220VDS01200007
MS1H3-13C15CD-T331R MS1H3-13C15CD-T334R 1301.3三相380VCT5R410002

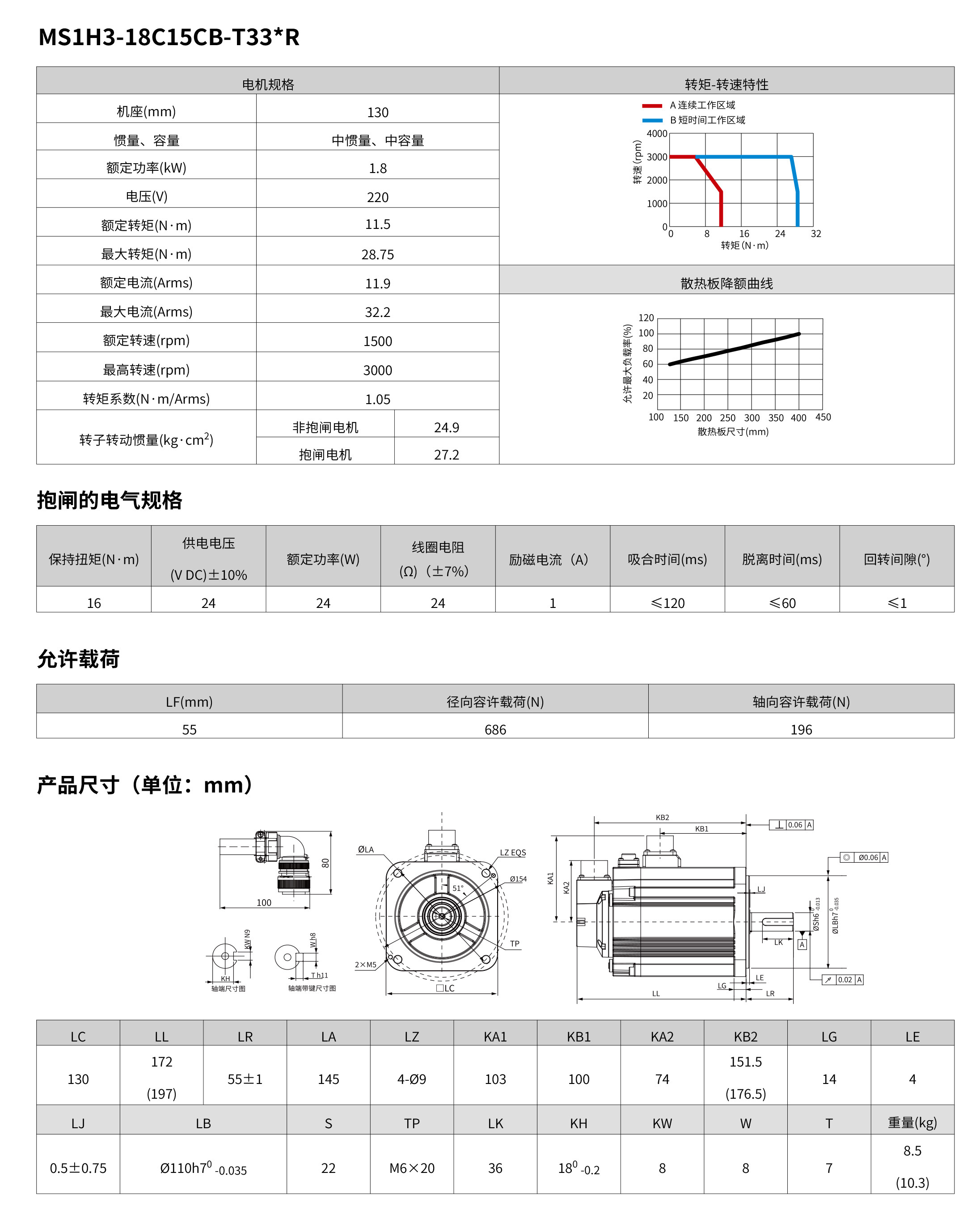

MS1H3-18C15CB-T331R MS1H3-18C15CB-T334R1301.8单相/三相220VDS01200007

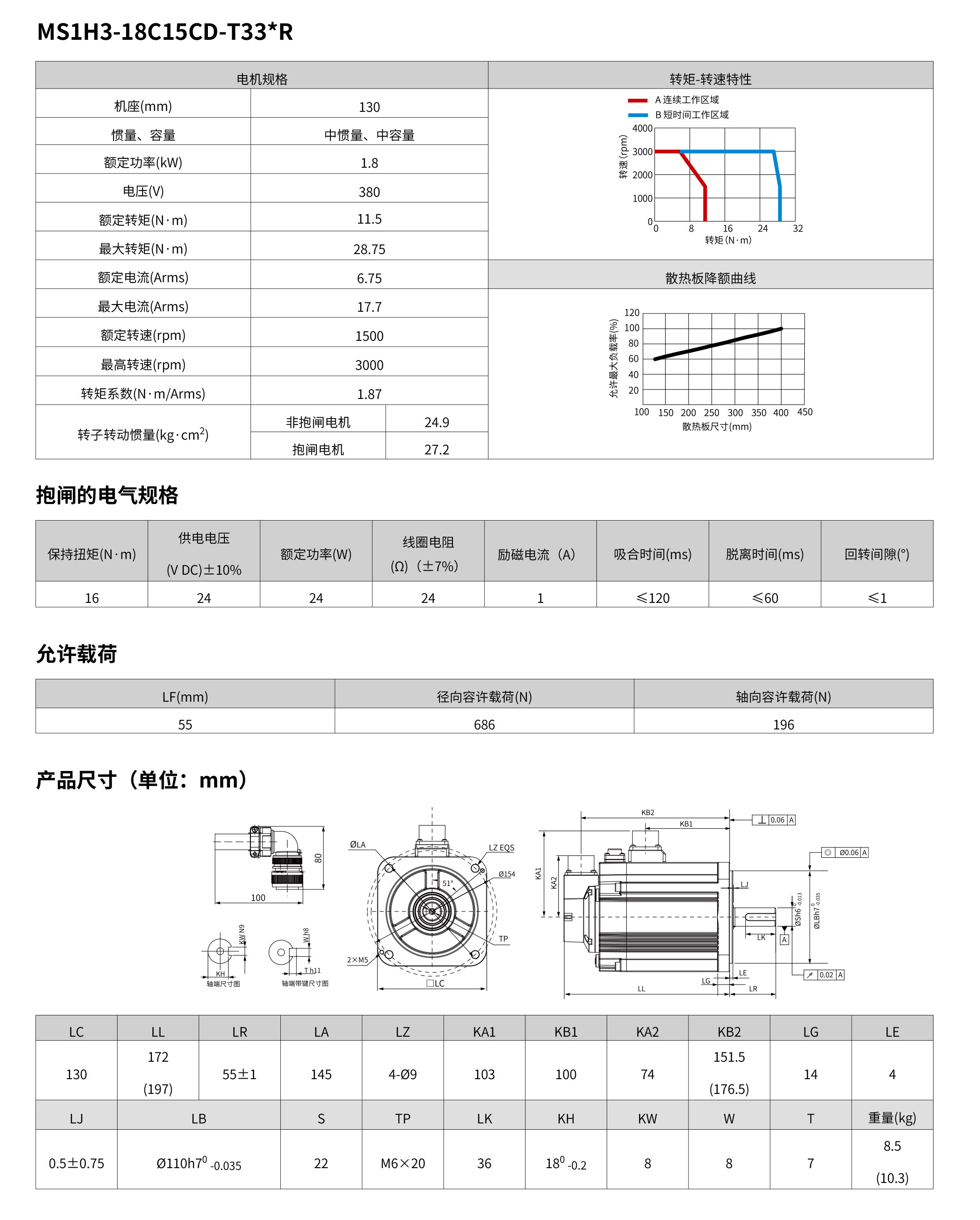

MS1H3-18C15CD-T331R MS1H3-18C15CD-T334R1301.8三相380VDT8R410003
MS1H3-29C15CD-T331R MS1H3-29C15CD-T334R1802.9三相380VDT01210004

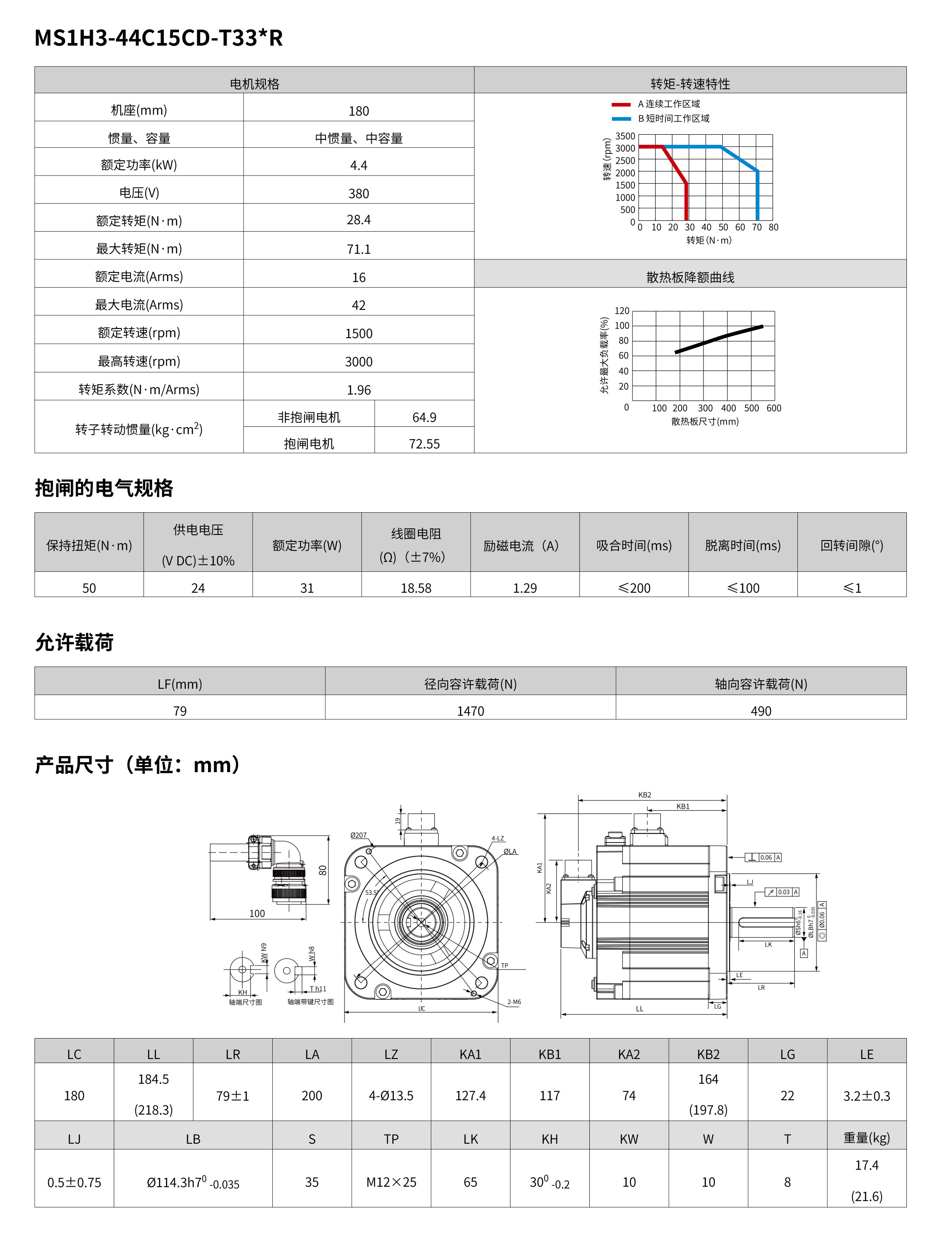

MS1H3-44C15CD-T331R MS1H3-44C15CD-T334R1804.4三相380VET01710005
MS1H3-55C15CD-T331R MS1H3-55C15CD-T334R1805.5三相380VET02110006
MS1H3-75C15CD-T331R MS1H3-75C15CD-T334R1807.5三相380VET02610007
MS1H4(nN=3000rpm,nmax=6000rpm)系列额定值规格
MS1H4-05B30CB-T330R MS1H4-05B30CB-T332R400.05单相220VAS1R600002
MS1H4-10B30CB-T330R MS1H4-10B30CB-T332R 400.1单相220VAS1R600002
MS1H4-05B30CB-T331R MS1H4-05B30CB-T334R400.05单相220VAS1R600002
MS1H4-10B30CB-T331R MS1H4-10B30CB-T334R400.1单相220VAS1R600002
MS1H4-20B30CB-T331R MS1H4-20B30CB-T334R600.2单相220VAS1R600002

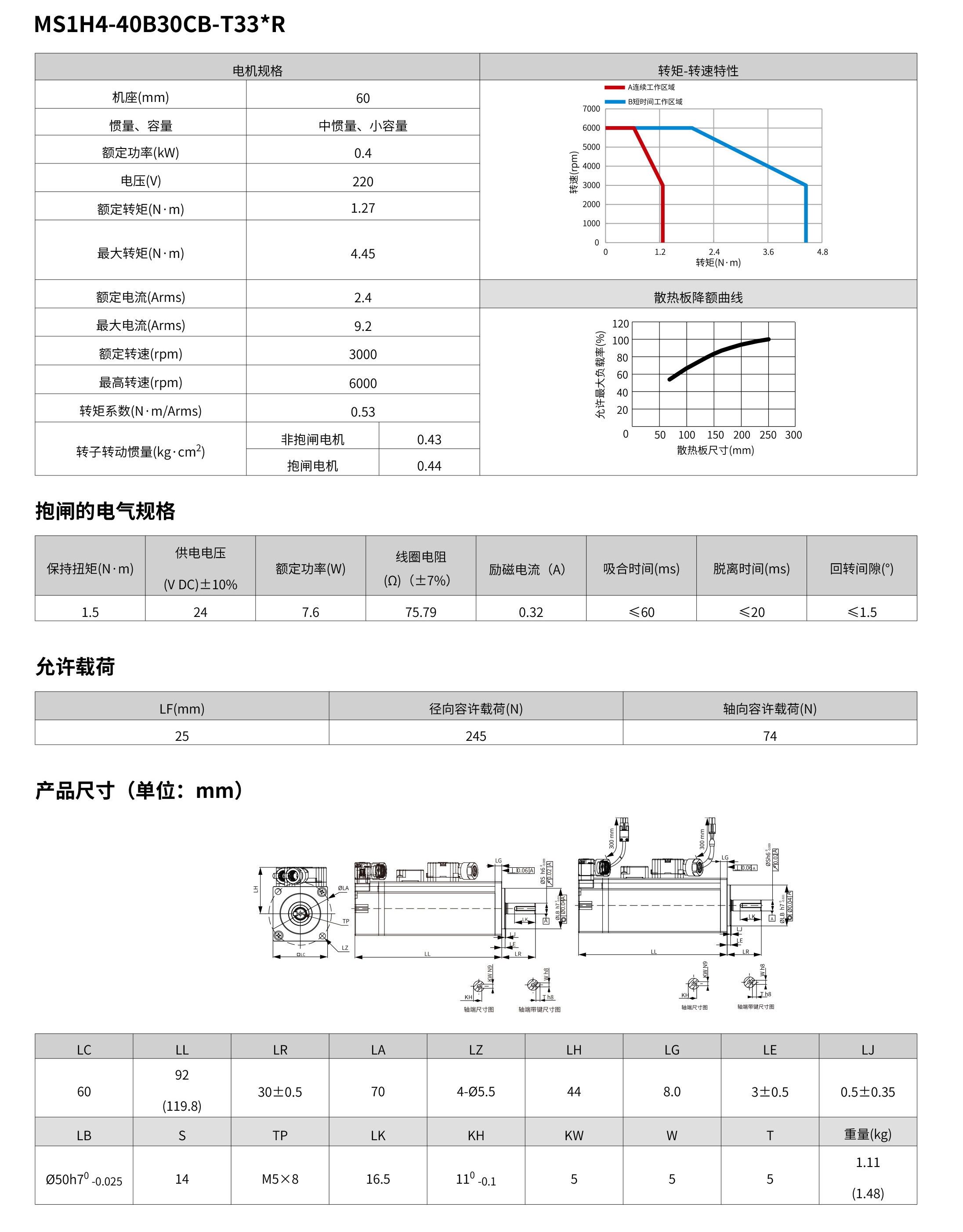

MS1H4-40B30CB-T331R MS1H4-40B30CB-T334R600.4单相220VAS2R800003
MS1H4-55B30CB-T331R -800.55单相220VBS5R500005
MS1H4-75B30CB-T331R MS1H4-75B30CB-T334R800.75单相220VBS5R500005

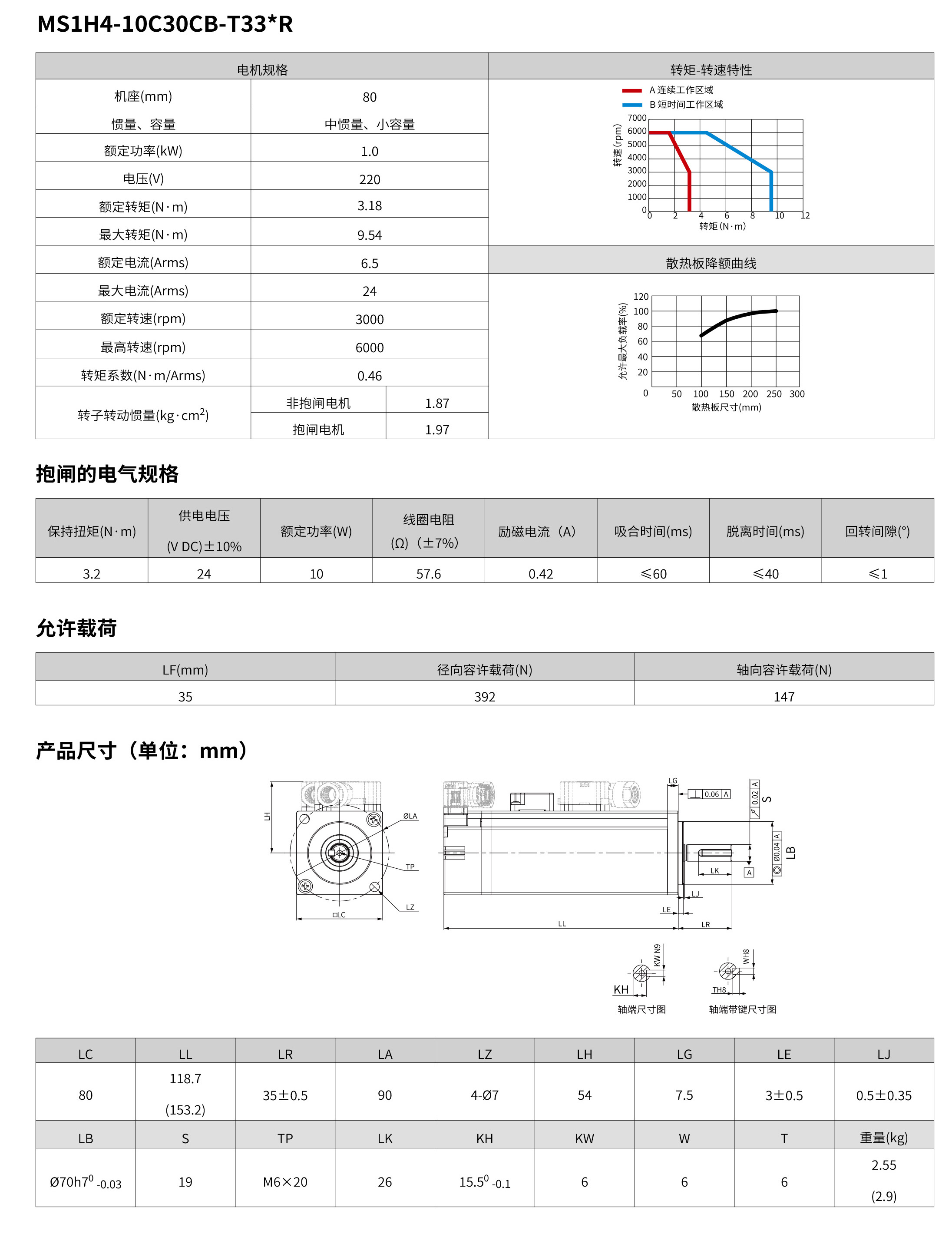

MS1H4-10C30CB-T331R MS1H4-10C30CB-T334R801单相/三相220VBS7R600006

说明

  • [1]带T8R4驱动器请参考该型号的转矩-转速特性曲线。

  • [2]带T017驱动器请参考该型号的转矩-转速特性曲线。

除了上述通用小功率伺服电机外,我们还提供通用大功率伺服电机、智能电批、专用伺服电机、防爆伺服电机、精密直驱电机、无框式直驱电机、工业永磁同步电机、防爆电机、步进电机等,具体请联系我们的产品经理。相关下载:电机综合选型手册,MS1-R系列伺服电机选型手册MS1-R系列伺服电机安装手册

您可能感兴趣的文章
