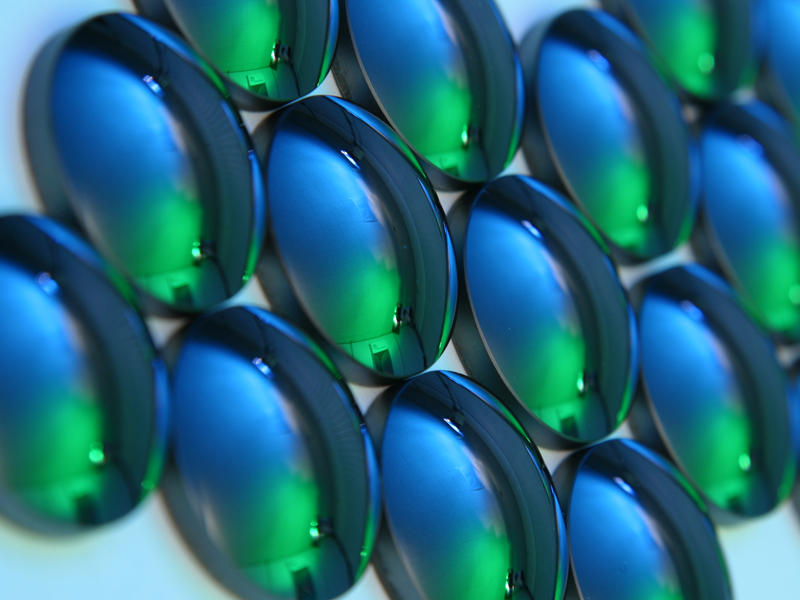

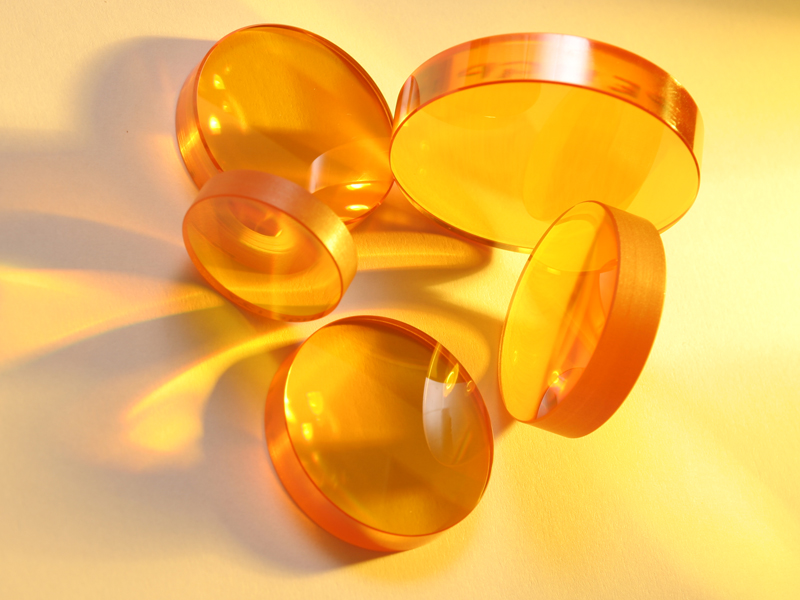

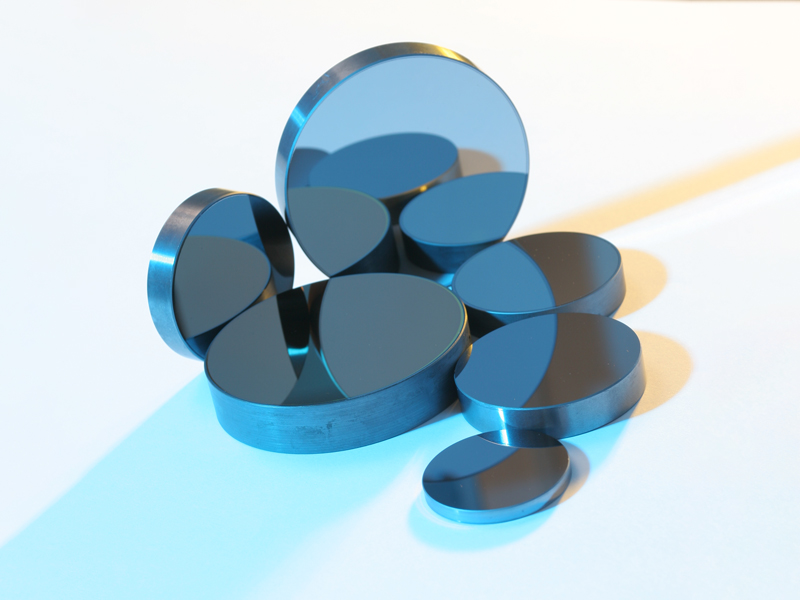

二氧化碳激光聚焦镜

时间:2020-06-16 类别:光学元器件 关注:4216

型号参数齐全,拥有大量库存,可现货供应,另可根据需求为您加工各类高精度光学元件

专业供应各类进口CO2激光聚焦镜,包括平凸形聚焦镜,月牙形聚焦镜,可根据客户需求定制!欢迎来电咨询!

我们一站式供应各种类型的CO2激光聚焦镜,二氧化碳激光聚焦镜,平凸聚焦镜,月牙聚焦镜,激光机聚焦镜,可提供选型、技术指导、安装培训、个性定制等全生命周期、全流程服务,欢迎联系我们的产品经理!

联系程经理快速获取产品选型、最新报价和解决方案
手机: 18162698959(微信) 座机: 027-51858937
产品系列
激光器
声光器件和电光器件
光学元器件
激光配件
激光仪器与工具
工业自动化
产品经理信息

平凸形聚焦镜

焦距长度误差(EFL)±2%
厚度误差±0.010''
直径误差+0.000''-0.005''
边缘厚度误差 (ETV)±0.002''
干涉条纹数 @ 0.63 um
Surface Quality: Scratch-Dig40-20
镀膜透过率@10.6 um99.75%

型号命名规则:FL-10.6-F-D-T-EN-yy

  • FL:单片聚焦镜

  • 10.6:激光波长10.6um

  • F:焦距,单位mm

  • D:镜片直径,单位mm

  • T:厚度,单位mm

  • EN:单位英寸(如无EN,则是mm单位)

  • yy:其它用途

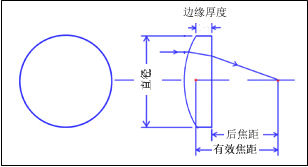

型号材料有效焦距mm/inch后焦距mm直径Mm/inch边缘厚度mm
FL-10.6-F25-D12.7-T2.5-UOZnSe25
12.7/0.52.5
FL-10.6-F25.4-D12.7-JSZnSe25.4/1
12.7/0.5
FL-10.6-F40-D16-T2-CCZnSe4039.1162.0
FL-10.6-F40-D18-JSZnSe4039.118
FL-10.6-F50-D16-T2-CCZnSe5049.1162.0
FL-10.6-F50-D18-JSZnSe5049.118
FL-10.6-F50-D25-JSZnSe5049.125
FL-10.6-F55-D20-JSZnSe55
20
FL-10.6-F60-D18-T2-CCZnSe6059.1182.0
FL-10.6-F60-D18-JSZnSe6059.118
FL-10.6-F74-D30-T2.5-JSZnSe75
302.5
FL-10.6-F80-D25-T2.5-CCZnSe8078.8252.5
FL-10.6-F80-D25-JSZnSe8078.825
FL-10.6-F95.25-D25.4-JSZnSe95.25/3.75
25.4/1.0
FL-10.6-F95-D38-T3-UOZnSe95/3.75
38.05/1.53
FL-10.6-F100-D25-T2.5-CCZnSe10098.9252.5
FL-10.6-F100-D25-JSZnSe10098.925
FL-10.6-F100-D38-T3-UOZnSe100
38.05/1.53
FL-10.6-F127-D27.95-JSZnSe127/5
27.95/1.1
FL-10.6-F127-D25.4-JSZnSe127/5
25.4/1.0
FL-10.6-F127-D28-T3.17-UOZnSe127/5
28/1.13.17
FL-10.6-F127-D28-T4-UOZnSe127/5
28/1.14
FL-10.6-F127-D28-T3-UOZnSe127/5
28/1.13
FL-10.6-F127-D38-T6-UOZnSe127/5
38.05/1.56
FL-10.6-F127-D38-T7.6-UOZnSe127/5
38.05/1.57.6
FL-10.6-F127-D38-T3-UOZnSe127/5
38.05/1.53
FL-10.6-F127-D50.8-T9.6-UOZnSe127/5
50.8/29.58
FL-10.6-F127-D50.8-T7.9-UOZnSe127/5
50.8/27.87
FL-10.6-F130-D38-T7.1-UOZnSe130
38.05/1.57.1
FL-10.6-F132-D50.8-T9.7-UOZnSe132
50.8/29.68
FL-10.6-F175-D38-T3-UOZnSe175
38.05/1.53
FL-10.6-F178-D17-T1.79-UOZnSe178
171.79
FL-10.6-F190-D38-T6-UOZnSe190/7.5
38.05/1.56
FL-10.6-F190-D50.8-T9.6-UOZnSe190/7.5
50.8/29.58
FL-10.6-F190-D38-T2-UOZnSe190/7.5
38.05/1.52
FL-10.6-F191-D50.8-T7.9-UOZnSe190.5/7.5
50.8/27.87
FL-10.6-F191-D38-T7.6-UOZnSe190.5/7.5
38.05/1.57.6
FL-10.6-F194-D38-T7.1-UOZnSe194/7.64
38.05/1.57.1
FL-10.6-F195-D50.8-T9.7-UOZnSe195/7.68
50.8/29.68
FL-10.6-F222-D50.8-T7.9-UOZnSe222/8.74
50.8/27.87
FL-10.6-F254-D50.8-T7.9-UOZnSe254/10
50.8/27.87
FL-10.6-F254-D28-T3-UOZnSe254/10
283
FL-10.6-F280-D15-T2.5-UOZnSe280/10
152.5
FL-10.6-F381-D38-T6-UOZnSe381/15
38.056
FL-10.6-F1700-D50.8-T3.5-UOZnSe1700/66.9
50.8/23.5
FL-10.6-F15000-D50.8-T4.1-UOZnSe15000/590.5
50.8/24.06

月牙形聚焦镜

镜片直径误差+0/-0.1mm
焦距误差+/-0.5%
入射角
透过率>99.4%
反射率<0.1% per surface
吸收率<0.2% per surface
型号材料直径mm/inch边缘厚度mm镀膜有效焦距mm/inch
FL-10.6-F25.4-D12.7-T2-MN-UOZnSe12.72AR/AR25.4
FL-10.6-F38.1-D12.7-T2-MN-UOZnSe12.72AR/AR38.1
FL-10.6-F100-D13-T2-MN-UOZnSe132AR/AR100
FL-10.6-F48-D15.5-T2.5-MN-UOZnSe15.52.5AR/AR48
FL-10.6-F110-D15.5-T2.5-MN-UOZnSe15.52.5AR/AR110
FL-10.6-F25.4-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR25.4
FL-10.6-F38.1-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR38.1
FL-10.6-F50.8-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR50.8
FL-10.6-F63.5-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR63.5
FL-10.6-F76.2-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR76.2
FL-10.6-F95.3-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR95.3
FL-10.6-F101.6-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR101.6
FL-10.6-F110-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR110
FL-10.6-F127-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR127
FL-10.6-F152-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR152
FL-10.6-F200-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR200
FL-10.6-F221-D25.4-T2.24-MN-UOZnSe25.42.24AR/AR221
FL-10.6-F508-D25.4-T2.5-MN-UOZnSe25.42.5AR/AR508
FL-10.6-F25.4-D28-T3-MN-UOZnSe283AR/AR25.4
FL-10.6-F38-D28-T2.5-MN-UOGaAs282.5Uncoated38
FL-10.6-F38.1-D28-T3-MN-UOZnSe283AR/AR38.1
FL-10.6-F50.8-D28-T3-MN-UOZnSe283AR/AR50.8
FL-10.6-F50.8-D28-T4.2-MN-UOZnSe284.2AR/AR50.8
FL-10.6-F63.5-D28-T4.2-MN-UOZnSe284.2AR/AR63.5
FL-10.6-F63.5-D28-T3-MN-UOZnSe283AR/AR63.5
FL-10.6-F63.5-D28-T1.8 -MN-UOGaAs281.8AR/AR63.5
FL-10.6-F76.2-D28-T3-MN-UOZnSe283AR/AR76.2
FL-10.6-F89-D28-T3-MN-UOZnSe283AR/AR89
FL-10.6-F90-D28-T3-MN-UOZnSe283AR/AR90
FL-10.6-F95.3-D28-T3-MN-UOZnSe283AR/AR95.3
FL-10.6-F95.3-D28-T4.2-MN-UOZnSe284.2AR/AR95.3
FL-10.6-F100-D26-T3-MN-UOZnSe283AR/AR100
FL-10.6-F102-D28-T3-MN-UOZnSe283AR/AR102
FL-10.6-F110-D28-T3-MN-UOZnSe283AR/AR110
FL-10.6-F127-D28-T3-MN-UOZnSe283AR/AR127
FL-10.6-F127-D28-T6.2-MN-UOZnSe286.2AR/AR127
FL-10.6-F127-D28-T4.2-MN-UOZnSe284.2AR/AR127
FL-10.6-F127-D28-T3-MN-UOZnSe283AR/AR152
FL-10.6-F152-D28-T3-MN-UOZnSe283AR/AR190.5
FL-10.6-F190.5-D28-T4.2-MN-UOZnSe284.2AR/AR190.5
FL-10.6-F254-D28-T3-MN-UOZnSe283AR/AR254
FL-10.6-F762-D28-T3-MN-UOZnSe283AR/AR762
FL-10.6-F750-D30-T3-MN-UOZnSe303AR/AR750
FL-10.6-F89-D32-T4.2-MN-UOZnSe324.2AR/AR89
FL-10.6-F95.3-D38-T7.4-MN-UOZnSe38.057.4AR/AR95.3
FL-10.6-F127-D38-T7.4-MN-UOZnSe38.057.4AR/AR127
FL-10.6-F190.5-D38-T7.4 -MN-UOZnSe38.057.4AR/AR190.5
FL-10.6-F228.6-D38-T7.4-MN-UOZnSe38.057.4AR/AR228.6
FL-10.6-F254-D38-T7.4-MN-UOZnSe38.057.4AR/AR254
FL-10.6-F38.1-D38-T2.4-MN-UOZnSe38.052.4AR/AR38.1
FL-10.6-F50.8-D38-T3-MN-UOZnSe38.053AR/AR50.8
FL-10.6-F63.5-D38-T6.1-MN-UOZnSe38.056.1AR/AR63.5
FL-10.6-F63.5-D38-T3-MN-UOZnSe38.053AR/AR63.5
FL-10.6-F75-D38-T2.93-MN-UOZnSe38.052.93AR/AR75
FL-10.6-F76.2-D38-T3-MN-UOZnSe38.053AR/AR76.2
FL-10.6-F80-D38-T3-MN-UOZnSe38.053AR/AR80
FL-10.6-F89-D38-T3-MN-UOZnSe38.053AR/AR89
FL-10.6-F95-D38-T3-MN-UOZnSe38.056AR/AR95
FL-10.6-F95.3-D38-T3-MN-UOZnSe38.053AR/AR95.3
FL-10.6-F100-D38-T3-MN-UOZnSe38.053AR/AR100
FL-10.6-F127-D38-T3-MN-UOZnSe38.053AR/AR127
FL-10.6-F127-D38-T7.8-MN-UOZnSe38.057.8AR/AR127
FL-10.6-F127-D38-T6.2-MN-UOZnSe38.056.2AR/AR127
FL-10.6-F127.1-D38-T9-MN-UOZnSe38.059AR/AR127.1
FL-10.6-F150-D38-T6.2-MN-UOZnSe38.056.2AR/AR150
FL-10.6-F152-D38-T3-MN-UOZnSe38.053AR/AR152
FL-10.6-F190-D38-T7.9-MN-UOZnSe38.057.87AR/AR190
FL-10.6-F190.5-D38-T6.1-MN-UOZnSe38.056.1AR/AR190.5
FL-10.6-F190.5-D38-T3-MN-UOZnSe38.053AR/AR190.5
FL-10.6-F190.7-D38-T9-MN-UOZnSe38.059AR/AR190.7
FL-10.6-F196-D38-T9-MN-UOZnSe38.059AR/AR196
FL-10.6-F254-D38-T6.3-MN-UOZnSe38.056.3AR/AR254
FL-10.6-F254-D38-T3-MN-UOZnSe38.053AR/AR254
FL-10.6-F345-D38-T3-MN-UOZnSe38.053AR/AR345
FL-10.6-F508-D38-T3-MN-UOZnSe38.053AR/AR508
FL-10.6-F750-D38-T3.1-MN-UOZnSe38.053.06AR/AR750
FL-10.6-F127-D44.45-T9-MN-UOZnSe44.459AR/AR127
FL-10.6-F190-D44.45-T9-MN-UOZnSe44.459AR/AR190
FL-10.6-F127-D44.5-T3.5-MN-UOZnSe44.53.5AR/AR127
FL-10.6-F125-D50-T1.5-MN-UOGe501.5AR/AR-Ge125
FL-10.6-F127-D50-T3.5-MN-UOZnSe503.5AR/AR127
FL-10.6-F150-D50-T3.5-MN-UOZnSe509.6AR/AR150
FL-10.6-F95-D50.8-T9.6-MN-UOZnSe50.89.6AR/AR95
FL-10.6-F127-D50.8-T7.9-MN-UOZnSe50.87.87AR/AR127
FL-10.6-F127-D50.8-T3.5-MN-UOZnSe50.83.5AR/AR127
FL-10.6-F127-D50.8-T9.6-MN-UOZnSe50.89.6AR/AR127
FL-10.6-F190.5-D50.8-T9.6-MN-UOZnSe50.89.6AR/AR190.5
FL-10.6-F190.5-D50.8-T3.5-MN-UOZnSe50.83.5AR/AR190.5
FL-10.6-F198-D50.8-T9.6-MN-UOZnSe50.89.62AR/AR198
FL-10.6-F254-D50.8-T9.6-MN-UOZnSe50.89.6AR/AR254
FL-10.6-F254-D50.8-T4-MN-UOGe50.84AR/AR-DUR254
